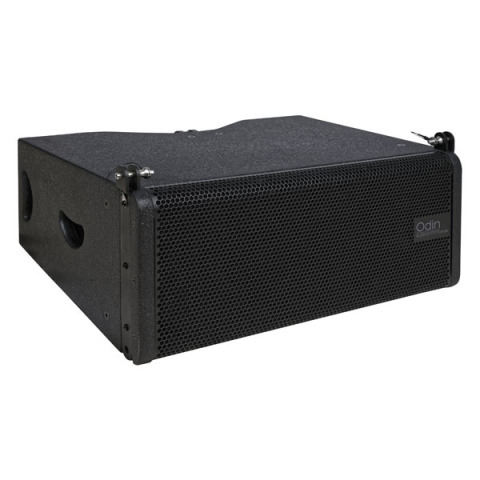

DAP Odin T-8A - Active Line Array Satellite Active Line Array Satellite

The DAP Odin T-8A is a versatile 800-watt Bi-Amp Line Array Satellite Speaker, suitable for small to large crowds. They are stackable up to 4 units and hangable to up to 12 units. The variety of options allows you to set the correct sound dispersion and DSP settings according to the application and location.

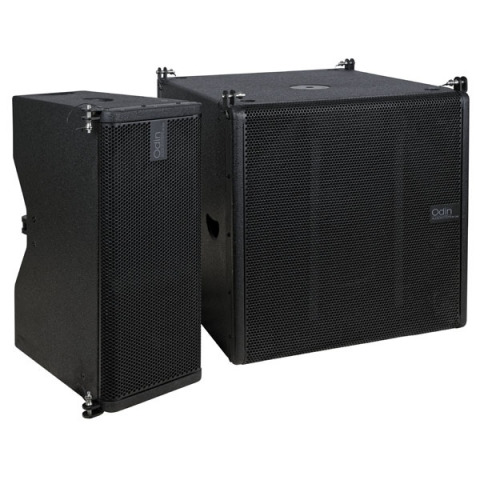

The DAP Odin T-8A is equipped with two 8" Celestion Neodymium MID Woofers and two 1" Celestion Neodymium compression drivers, producing up to a staggering 129 dB SPL @ 1 meter distance. It is a full-range active speaker that will work perfectly in combination with the S-18A subwoofer and S-218A ultra subwoofer. A specially designed waveguide, phase plug, and configurable DSP-optimised amplification make sure that the T-8A delivers under any circumstance and in any setup.

The handy hanging system allows you to build/break a complete Odin Line Array set in no time and on your own. In addition, it is a very modular system, so you can place a DAP Odin Line-Array installation at any location. Various accessories are available for stacking, hanging or using a sub/top combination as a satellite setup. For example, consider the 35 mm pole mount adapter, stack frame and fly bar, where the vertical array angle of satellite speakers can be adjusted in 6 steps, from a 0° to 7.5° spread angle.

Free Odin Editor software, in combination with the CL-4 Connect, allows you to freely adjust the EQ, gain and delay per speaker or per group of speakers from a Windows PC/laptop. It also allows you to monitor live information from each speaker, such as amplifier temperature and high/low output. In addition, EASE Focus 3 software can be used to calculate the splay angle and "Throw". A plug-in has been developed for adding our speakers to its database.

Please be aware that powerCON and network cables are not included.

Outputs

Low Driver Power 650 W

High Driver Power 150 W

RMS Output Power Amplifier 800 W

Peak Output Power Amplifier 3200 W

Main Outputs 1

Main Output Connector 3-pin XLR

Inputs

Mono Inputs 1

Mono Input Connector 3-pin XLR

Audio Specifications

THD Level < 0.5 %

Signal-to-noise Ratio > 90 dB

AD/DA Convertor Sample Rate 48 kHz

Amp Technology Class AB & D

Damping Factor 200 :1

Speaker System 2-way Line-Array

Speaker Sensitivity (1 W/1 m) 97 dB

Maximum SPL at 1 m 129 dB

DSP Processor Bitrate 32-bit

Frequency Response (-3dB) Minimum 80 Hz

Frequency Response (-3dB) Maximum 19000 Hz

Crossover Frequency Low 90 Hz

Crossover Frequency High 1600 Hz

Woofer Diameter 8 "

Woofer Voice Coil 2 "

Woofer Magnet Type Neodymium

Compression Driver Diameter 1 "

Compression Driver Voice Coil 1.75 "

Compression Driver Magnet Type Neodymium

Dispersion Angle Horizontal 100°

Dispersion Angle Vertical 10°

Sound Editing

Equalizer Range 30 dB

Parametric Output Equalizer 8 Bands

Crossover Filter Types Butterworth

Crossover Slopes 24 dB

Phase Reverse Yes

Internal Storage

User Presets Yes

User Presets Capacity 10

Control and Programming

Control Mode PC Software, Stand Alone

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 300 W

Fuse 5 A

Power Connector in powerCON Blue

Power Connector out powerCON Grey

Data Connector in etherCON

Data Connector out etherCON

Mechanical Specifications

Amplifier Cooling Axial fan

Height (mm) 300 mm

Width (mm) 635 mm

Length (mm) 468 mm

Material Wood

Material Thickness 18 mm

Colour Black

Finish Painted

Weight 22.5 kg

IP Rating IP20 (indoor use only)

Product Properties

Pole Mount Optional 35 mm pole mount

Electronic Protection Convection-fan, Digital limiter, Overload, Thermal

LED Indicators Clip, Data connect, Power, Protect, Signal

Rotatable Horn No

Useable as Monitor/Wedge No

Speaker Grill Material Steel

Speaker Handles Positions Left side, Right side

Rigging

Mounting Options 3-point suspension

Rigging Options Flying, Stacking

Included Items

Included Cables None

Included Accessories User Manual

Included Rigging None
