Solton KARAT K4 A

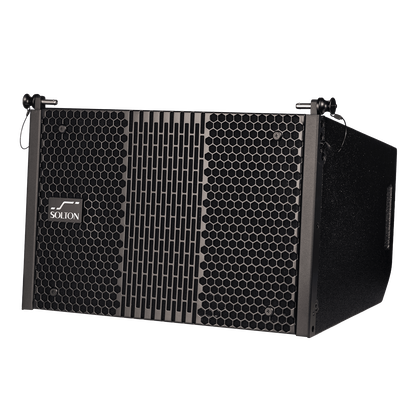

KARAT K4 A – Compact Touring System with Outstanding Vocal Clarity

The KARAT K4 A is a powerful bi-amped 2-way active system, specifically engineered for demanding touring applications both indoors and outdoors. Its design places a strong emphasis on exceptional vocal intelligibility, even in challenging acoustic environments. Equipped with four 5” neodymium woofers and two high-performance 1.75” compression drivers, the system delivers impressive precision and clarity. The meticulously developed time-coherent waveguide ensures consistent sound dispersion and optimal phase alignment. The integrated 600-watt Class-D amplifier provides excellent audio performance with high efficiency. This is further enhanced by an advanced DSP system featuring FIR filtering, enabling precise control and finely tuned sound reproduction. Thanks to state-of-the-art neodymium technology, the KARAT K4 A not only excels acoustically but also stands out with its remarkably low weight—making it ideal for easy handling, flexible installations, and flown applications. With an IP45 rating, the system is well-suited for demanding outdoor use. Perfect Low-End Extension: SUB K 15 A The SUB K 15 A is the ideal flyable subwoofer complement to the KARAT K4 A array system. It enhances the setup with powerful, precise low-frequency performance, delivering a balanced and impactful overall sound.

Key Features
Bullet point High output Line Array element
Bullet point Selfpowered operation
Bullet point Stacked operation possible
Bullet point High quality, low distortion HF compression drivers
Bullet point Very stable horizontal coverage
Bullet point IP45 rating
Bullet point FIR Filtering
Bullet point Versatile configuration options
Specification
Article Number 12011
Type Two-way, selfpowered, fullrange, line array element
Frequency Range (-10dB) 70 Hz - 20 kHz
Frequency Response (+- 3dB) 75 Hz -18 kHz
Coverage Pattern H 100° x V 10° nominal
Power Handling 600 W continuous, 2400 W peak
HF Driver 2x 1.75" VC Neodym compression driver, horn loaded with waveguide
LF Driver 4x 5" Neodym woofer
Protection Limiter, over voltage protection
Active Tuning / Features Volume, DSP, Power switch
Enclosure Birch plywood
Finish Black polyurea coating, IP 45
Fittings 2x Handles, rigging system, flange
Protective Grille Powder coated, black perforated steel with acoustic cloth inside

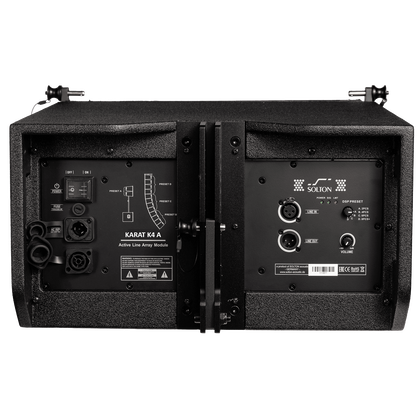

Connectors XLR in/out, Power True in/out
Dimensions mm (WxHxD) 450 x 364 x 295
Weight 17 kg
EAN / GTIN 04262552320616

Application
Bullet point Theaters
Bullet point Arenas and stadiums with reasonable speaker quantity
Bullet point Medium size festivals
Bullet point Clubs
Bullet point Corporate events
Bullet point Contemporary churches
