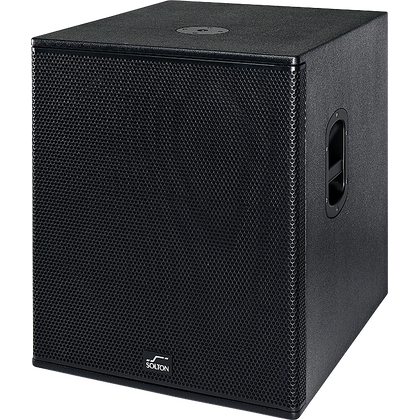

Solton AART SUB 18 A

The Solton aart SUB 18 A is a single 18" self-powered direct-radiating high performance subwoofer system. It has been designed to add high-output, high-impact bass response to the mid-high and fullrange loudspeaker system in various mobile and installed applications.

The Sub 18A features a long-excursion, 18” ,4” (100mm) voice coil LF transducer, and a low distortion port design in a compact reflex enclosure made of 15 mm plywood.

The integrated high performance Class D amplifier delivers outstanding dynamic and excellent headroom.

The integrated pole mount socket (M20) enables the use of a distance rod in combination with a MF/HF cabinet as a system. The aart 18 Sub has many features that make it a versatile subwoofer system.

KEY FEATURES

1 x 18” ,4” (100mm) voice coil LF Transducer

134 dB Peak SPL

Volume

Variable crossover 80 - 200 Hz

Phase Switch

Limiter

Compact design

Pole mount socket (M20)

Two integrated handles for easy portability

Prepared for 100mm blue wheels

DETAILS

Loudspeaker Type Self-powered, Single18", bass-reflex, subwoofer

Frequency Range (-10dB) 33 Hz - 250 Hz

Frequency Response (+- 3dB) 38 Hz - 200 Hz

Coverage Pattern Omni

Power Handling 800 W continuous, 2400 W peak

System Sensitivity (1w/1m) 99 dB

Maximum SPL (Calculated at 1m) 128 dB continuous, 134 dB peak

HF Driver n/a

LF Driver 18", 4" voice coil speaker

Crossover Active, Variable 80 - 200 Hz

Protection Limiter

Active Tuning / Features Volume, Variable crossover 80 - 200 Hz, Phase switch

Enclosure 15 mm birch plywood

Finish Black textured paint

Fittings 2x Handles, M20 pole socket

Protective Grille Black perforated steel with acoustic transparent foam backing

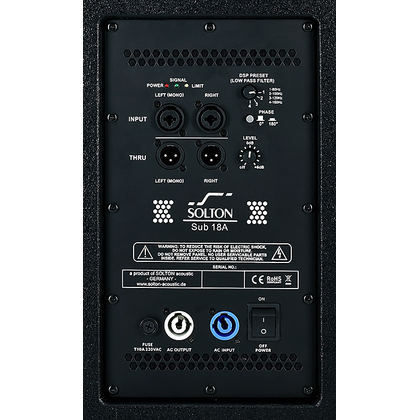

Connectors 2x Inputs XLR / 6.35 Jack Combo, 2x Thru XLR

Dimensions mm (WxHxD) 560 x 670 x 680

Weight 43 kg
Ringscrew M8

APPLICATION Portable sound reinforcement

Installation Live Music

Bars and restaurants Nightclubs
