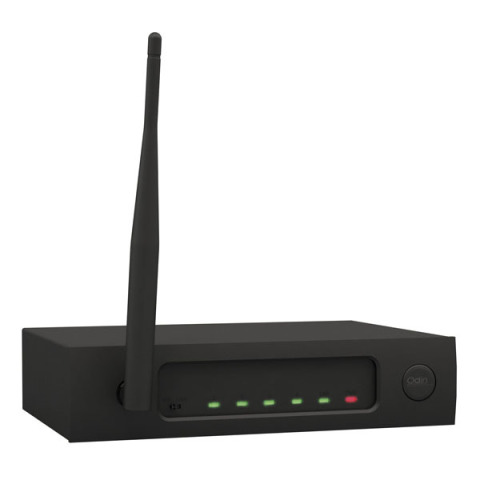

Odin CL-4 Connect Ethernet Hub

Optimize DSP settings to fit each environment

Connect up to 48 units (12 per port)

Free Odin Editor Software for Windows PC/laptop

Adjustable EQ, gain and delay per speaker/speaker group

Monitor temperature and high/low response of the amp

The DAP Odin CL-4 Connect lets you adapt the sound reproduction of your DAP Odin installation to meet a high quality audio at any venue. It allows you to make adjustments, such as EQ, gain and delay, for each speaker or groups of speakers up to 48 units (12 per port). Each Odin speaker and subwoofer is equipped with fixed presets and 1 adjustable DSP preset. The adjustable DSP preset can be used to finetune settings in detail, as each location poses a different environment. For this, you'll need the Odin CL-4 in combination with Odin Editor Software, which is running on any Windows PC or laptop.

In addition to changing the DSP settings, the software allows you to monitor the input signal, clip/amp status, high/low response and temperature per speaker/speaker group.

Wireless Specifications

Carrier Frequency 2,4 GHz

Electrical Specifications and Connections

Data Connector in RJ45

Data Connector out RJ45

Power Connector in Low Voltage DC plug

Power Consumption 5 W

Power Supply 100-240 VAC 50-60 Hz

Output Voltage 5 VDC

Mechanical Specifications

Height (mm) 46 mm

Width (mm) 197 mm

Length (mm) 135 mm

Weight 1.04 kg

Material Steel

Housing Steel

Colour Black

Finish Powder Coating

IP Rating IP20 (indoor use only)

Product Properties

LED Indicators Data connect, Power

Included Items

Included Accessories Adapter, User Manual
