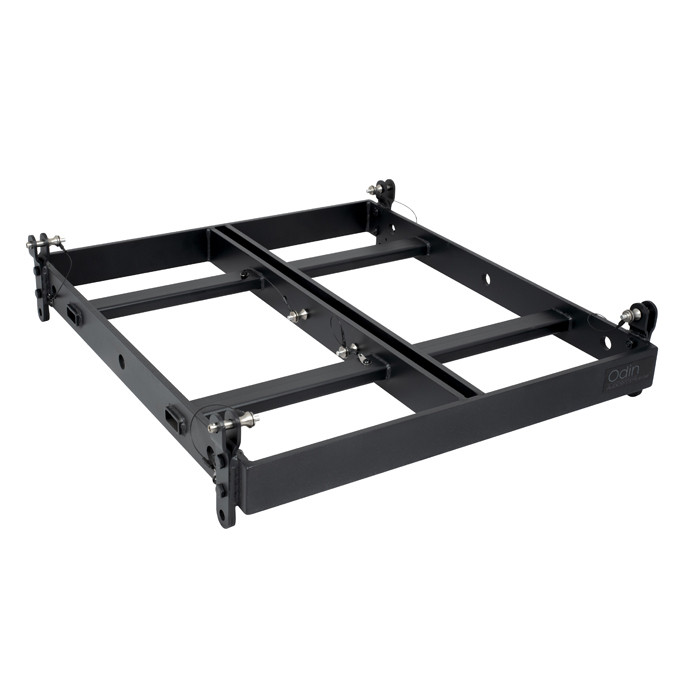

DAP Odin FB-02 Rigging Stack Bar

For rigging T-8A satellites to S-18A subwoofers

Stack up to 4x T-8A on top of the FB-02

Hang up to 8x T-8A on S-18A subs

Safe and robust installation

The DAP Odin FB-02 is a multifunctional Line Array Stack Bar for your DAP Odin system. This enables you to connect a T-8A satellite with 3-point suspension to an S-18A subwoofer with 4-point suspension. The FB-02 allows you to stack up to four T-8A satellites on S-18A subwoofers. In combination with the FB-01 fly bar, you can hang up to eight satellite speakers under S-18A subwoofers. Using the FB-02 as a flybar is possible for up to four T-8A satellites, but with limited hang and tilt options. Please be aware that this is only done in exceptional settings.

This stack bar ensures that you can securely connect Odin speakers and subwoofers. This allows you to hang them under each other or stack them on top of each other and you are assured of a safe and robust installation.

Mechanical Specifications

Height (mm) 140 mm

Width (mm) 617 mm

Length (mm) 690 mm

Weight 22 kg

WLL (kg) 350 kg

Material Steel

Colour Black

Finish Powder Coating

IP Rating IP20 (indoor use only)

Rigging

Mounting Options 3-point suspension, 4-point suspension

Rigging Options Flying

Included Items

Included Accessories Tilt Adapter
