DAP Odin S-18 Passive Line Array Subwoofer

1200 W / 136 dB max SPL at 1 m

18” Celestion Ferrite Magnet subwoofer with 4” voice coil

40 – 1000 Hz usable range (-3 dB)

Quick and easy setup (4-point suspension system)

M20-threaded distance pole adapter

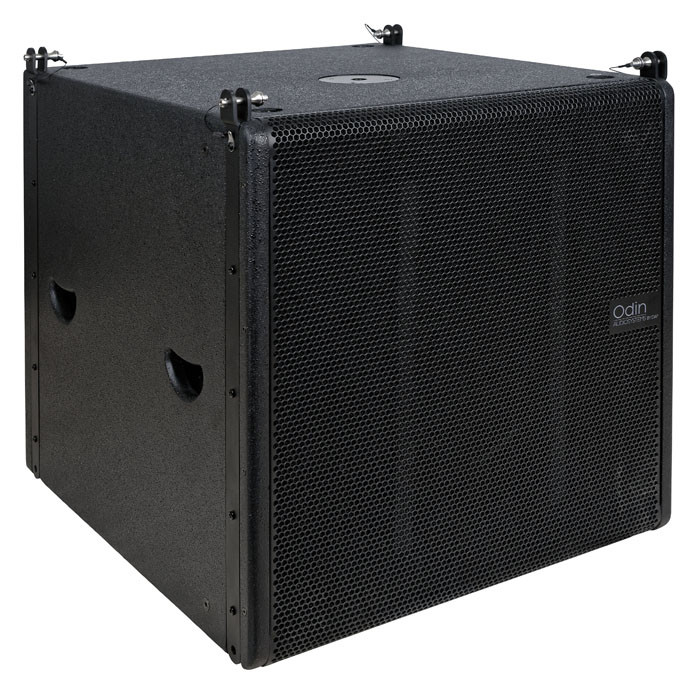

The DAP Odin S-18 is a versatile passive Line Array Subwoofer suitable for small to big crowds. For a punchy full-range sound, you can fly or stack this 1200 W (2400 W program) together with DAP Odin T-8 or T-8A satellites by using the DAP Odin FB-02 stack frame as adapter and the DAP Odin FB-01 as a fly bar.

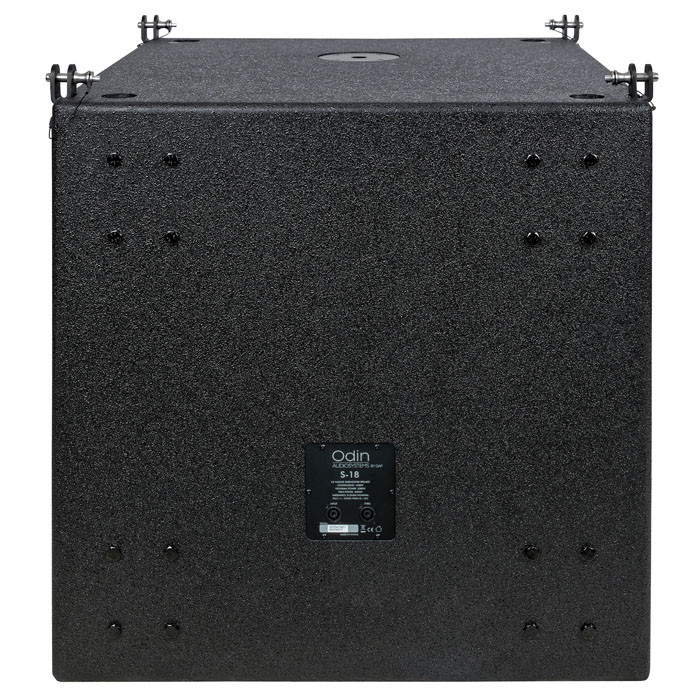

The S-18 has a high-excursion 18” Celestion Ferrite Magnet subwoofer with a 4” voice coil. It produces up to a staggering 136 dB SPL @ 1 meter distance. The sturdy plywood enclosure is coated with a very scratch-resistant black paint and has an M20-threaded adapter for mounting a speaker distance pole. Dual solid two-pole Speaker Connectors offer a sturdy loop through for connecting multiple woofers to a single amplifier channel.

A single person can set up a complete Odin Line Array set thanks to its 4-point suspension system. Not only is the setup quick and labour-saving, it also is a very modular system, allowing different setups to fit any location. You can use the optional 35 mm pole mount adapter to arrange a satellite setup. Or integrate the optional stack frame or fly bar and use the suspension points to arrange a stack or line array setup that best suits your venue.

Inputs
RMS Input Power            1200 W
Peak Input Power           2400 W
Passive Input Connection   Speaker Connector 2 pole

Outputs
Passive Output Connector   Speaker Connector 2 pole

Audio Specifications
Speaker System             Subwoofer
Speaker Sensitivity (1 W/1 m)  98 dB
Speaker Impedance           8 Ω
Maximum SPL at 1 m          136 dB
Frequency Response (-3dB) Minimum  40 Hz
Frequency Response (-3dB) Maximum  1 Hz
Woofer Diameter             18 "
Woofer Voice Coil           4 "
Subwoofer Dispersion Angle Horizontal  360°
Subwoofer Dispersion Angle Vertical    180°

Mechanical Specifications
Height (mm)                 665 mm
Width (mm)                  663 mm
Depth (mm)                  700 mm
Material                    Plywood
Weight                      56.9 kg
IP Rating                   IP20 (indoor use only)
Colour                      Black
Speaker Adapter Diameter    M20 mm

Product Properties
Useable as Monitor/Wedge    No

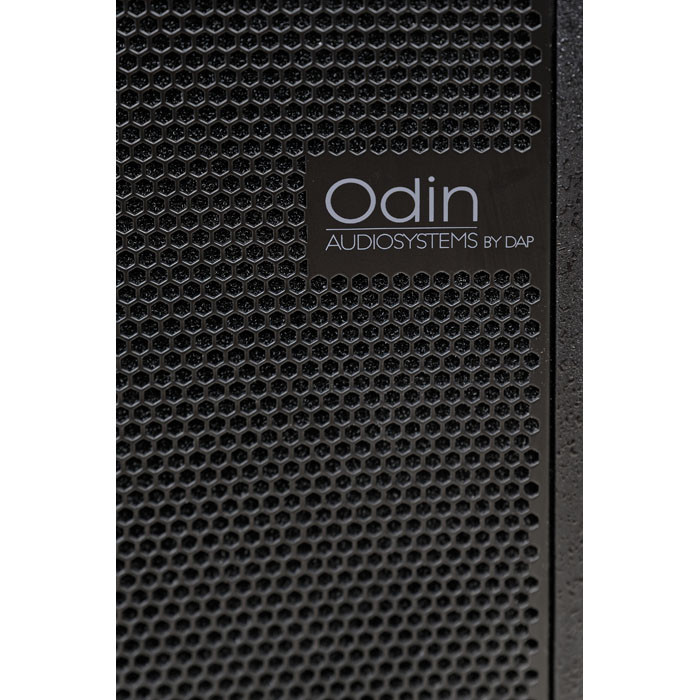

Speaker Grill Material      Steel
Speaker Handles Positions   Left side
Castors                     Optional

Rigging
Mounting Options            4-point suspension
Rigging Options             Flying, Stacking
