VT101 - HDMI Matrix Switcher 4x4

4x4 HDMI Matrix

Flexible signal routing

Suitable for smoothly reconnecting devices

Resolution to up to 3840 x 2160P @60 Hz

IR remote included

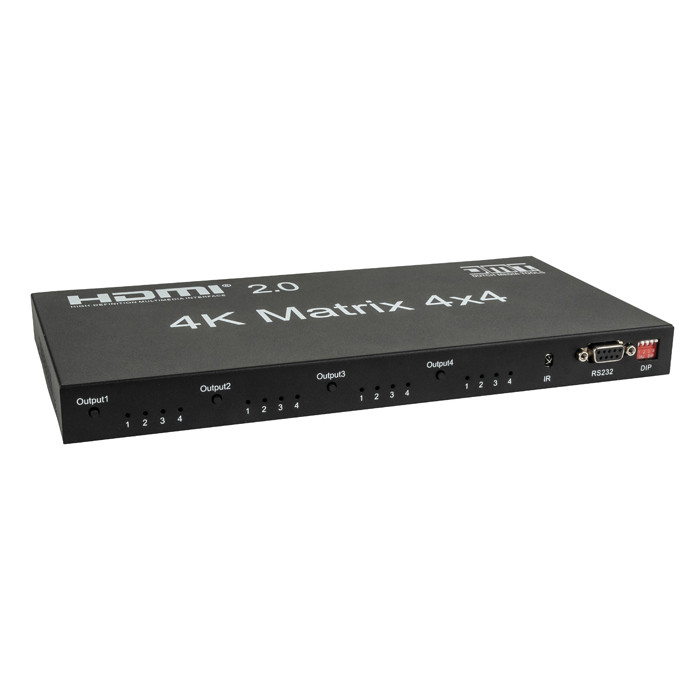

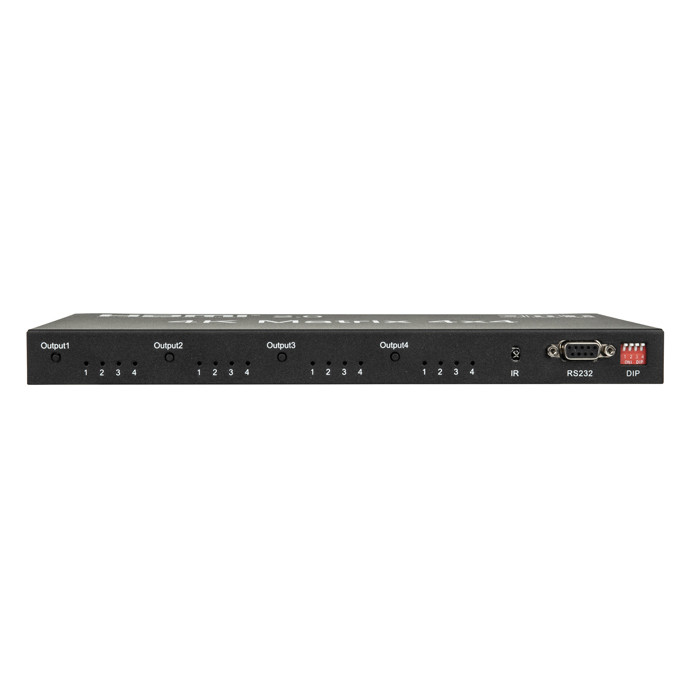

The DMT VT101 - HDMI Matrix 4x4 is a combination of a switch and a splitter, allowing the connection of multiple HDMI devices to multiple displays / televisions et cetera. It can be controlled manually or by using an included remote, making operation very easy. An HDMI switch or splitter could never give the same functionality or flexibility. The DMT VT101 supports resolutions up to 3840 x 2160P @ 60Hz. Indicators at the front of the unit display the current routing status for a clear overview of your output signals.

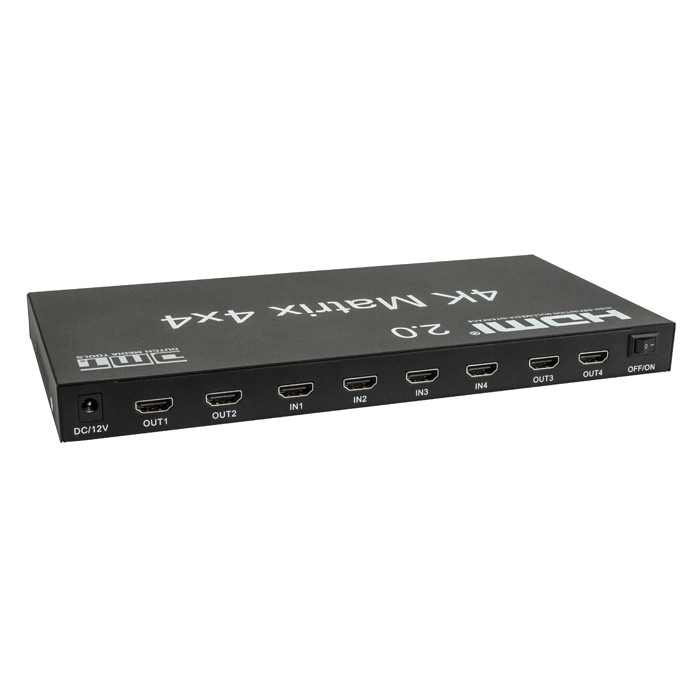

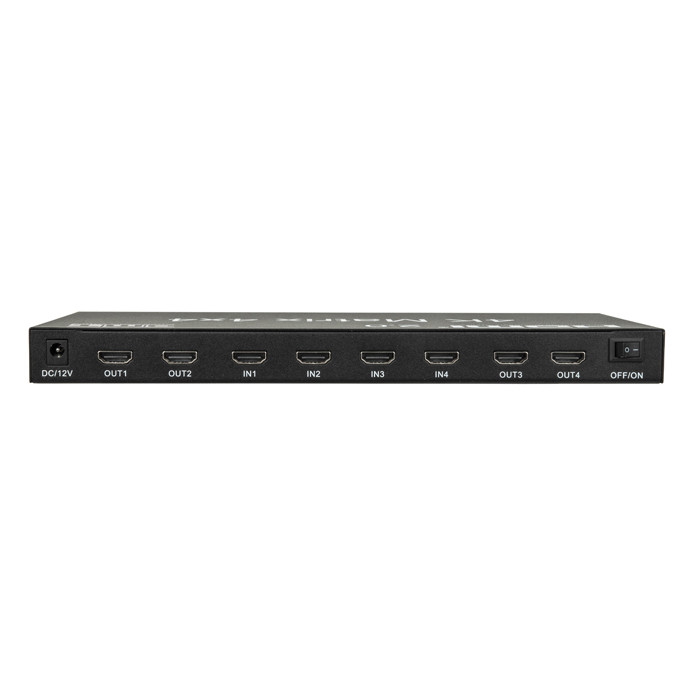

Inputs

HDMI 2.0 4

Outputs

HDMI 2.0 (out) 4

Control and Programming

Maximum Input Resolution 3840 x 2160

Maximum Output Resolution 3840 x 2160

Electrical Specifications and Connections

Power Supply 12 VDC

Power Consumption 15

Power Connector in Low Voltage DC plug

Mechanical Specifications

Length (mm) 276

Width (mm) 135

Height (mm) 26

Weight 0.735

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black

Thermal Specifications

Maximum Ambient Temperature 45

Operating Humidity 0-95

Certifications/Qualifications

Reference Standard CE, UKCA

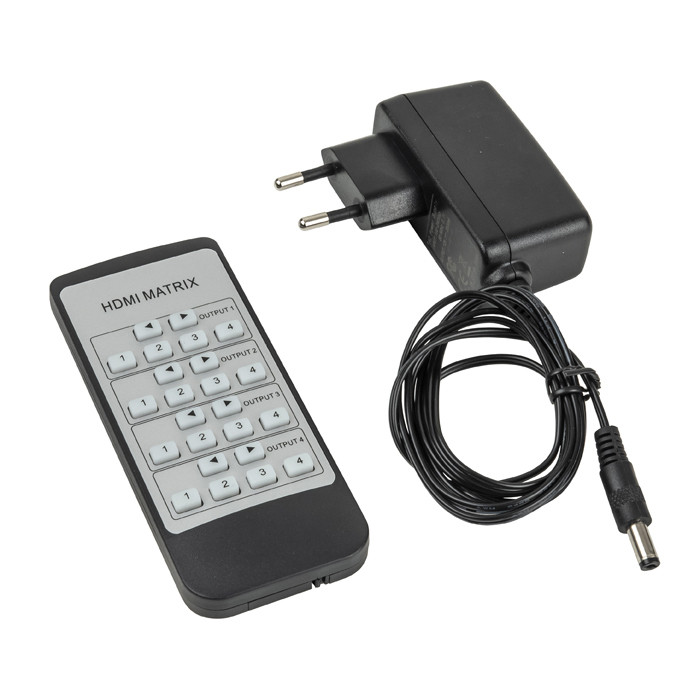

Included Items

Included Accessories Adapter

Included Remotes IR Remote
