LC-connector
Supports 9.95 to 11.3 Gb/s bit rates
Hot-pluggable
Transfer up to 300 m.

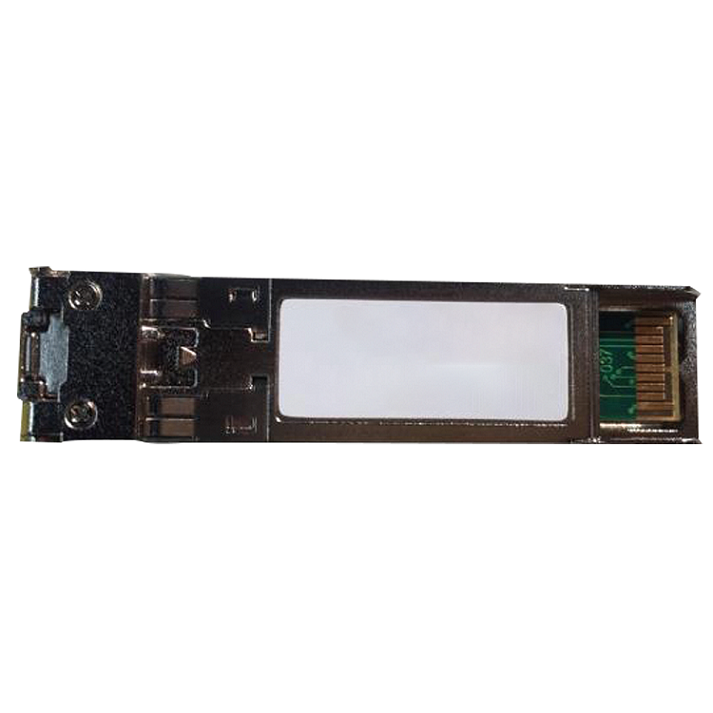

The Novastar 10G SFP Module-MM transceiver modules can be used for all Novastar products which are equipped with SFP fibre port. Such as MCTRL 4 K(101652) / CVT4 KS(101653) / MCTRL 660PRO(101621) / R5(101650) / Pro HD(101631) / UHD jr. (101633) / UHD (101634)
All SFP modules are equipped with an LC connector, and therefore easy to combine with the Highlite fibre optic breakout cables and drums (102050 / 102051 / 102052 / 102053)
Optical
SFP Module Fibre Connector Type LC
Fibre Mode Multi-mode
Maximum Transmission Distance 300 m (984.252 ft)
Control and Programming
Control System Novastar
Electrical Specifications and Connections
Power Supply 3 V DC
Power Consumption 1.5 W
Mechanical Specifications
Width (Without Handles) 14 mm (0.551″)
Height (Without Handles) 12 mm (0.472″)
Depth (Without Handles) 57 mm (2.244″)
Weight 0.02 kg (0.044 lb)
IP Rating IP20 (indoor use only)
Thermal Specifications
Maximum Ambient Temperature 70 °C (158 °F)
Operating Humidity 0-80 %rH
