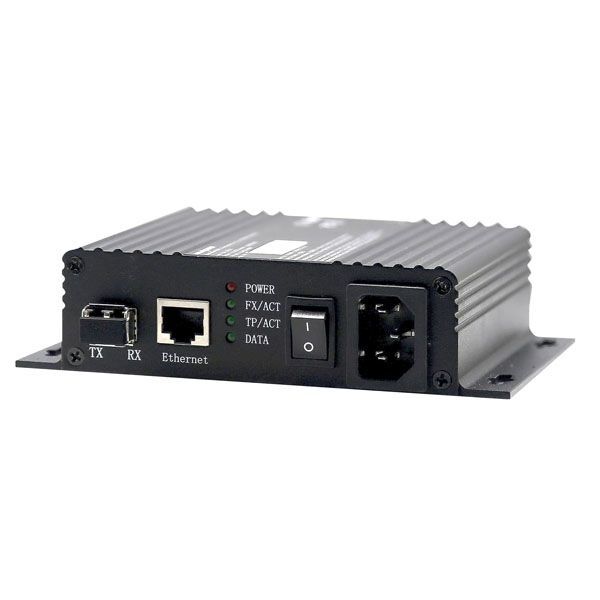

NovaStar CVT-320 Fibre Converter

Fibre converter to cover large distances between processor and LED screens

Transmission distance up to 15 km

Plug and play, no driver required

When you need to cover a large distance between your Novastar processor and LED screen the CVT320 is the ideal solution for you. The Novastar CVT320 can be used either as transmitter or as receiver. Due to the LC interface it is very easy to connect it to any fibre source.

To transfer signal from one sending-card output to the designated LED screen you always need two CVT320 units (TX transmitter and RX receiver). The fibre converter is plug and play and no further drivers are required.

Optical

SFP Module Fibre Connector Type LC

SFP Module(s) Included Yes

Fibre Mode Single-mode

Control and Programming

Control System Novastar

Port Mapping Software Based

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 16 W

Power Connector in IEC

Data Connector in RJ45

Mechanical Specifications

Width (including handles) 149 mm

Width (without handles) 119 mm

Height (including handles) 132 mm

Height (without handles) 132 mm

Depth (including handles) 38 mm

Depth (without handles) 38 mm

Weight 0.7 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Product Properties

Cooling Passive

Thermal Specifications

Maximum Ambient Temperature 60 °C

Minimum Ambient Temperature -20 °C

Operating Humidity 0-95 %RH
