NovaStar MCTRL-300 Sender Box

Cabinet config files saving and sending

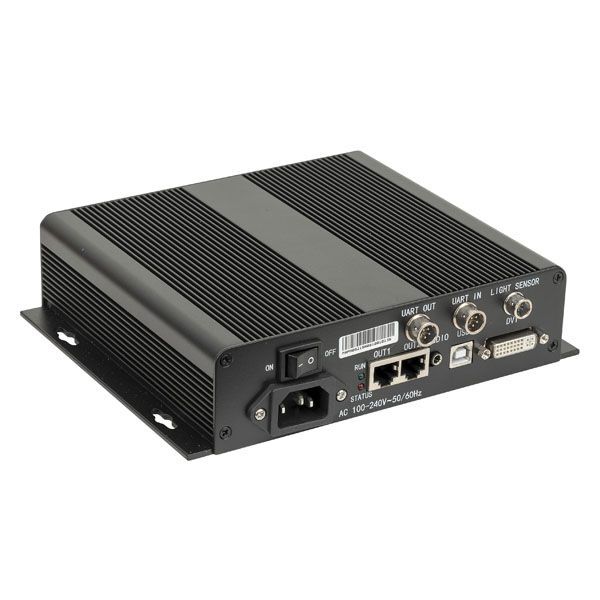

2x ethernet output port

DVI Video Input port

Light sensor interface port

Audio Input

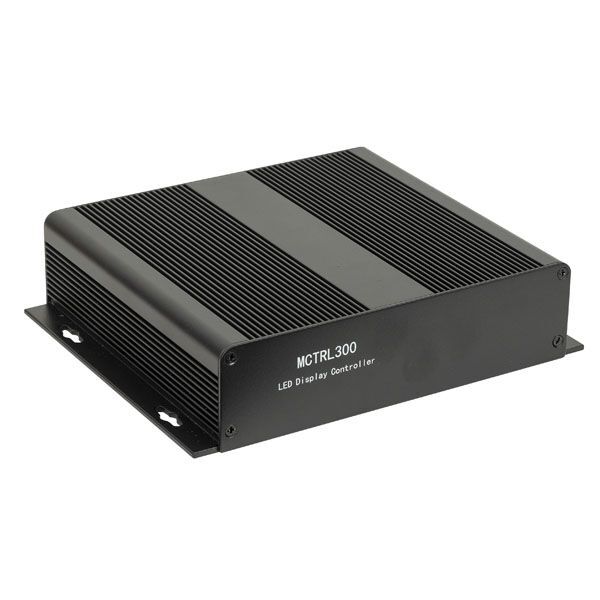

The Novastar MCTRL-300 is a compact basic sender box which makes setting up your Novastar equipped LED screen easy and simple. Encased in a sturdy housing the Novastar MCTRL-300 incorporates not only a DVI and audio input but also an onboard light sensor input. This can be used to connect a Novastar light sensor (101612) directly to the sending card for automatic brightness adjustment when ambient lighting changes. By adding the MCTRL-300 to your LED screen setup you will have the instant ability to play any content of your PC directly on the LED screen.

Inputs

DVI Single Link 1

Extra Features

Scaling Function No

Control and Programming

Control System Novastar

Maximum Loading Capacity 1300000 px

Maximum Input Resolution Width and Height can be defined by users

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 16 W

Power Connector in IEC

Data Connector out RJ45

Mechanical Specifications

Width (without handles) 204 mm

Height (without handles) 48 mm

Depth (without handles) 160 mm

Weight 1 kg

Housing Aluminium, Metal

Colour Black

Product Properties

Cooling Passive

Thermal Specifications

Maximum Ambient Temperature 60 °C

Minimum Ambient Temperature -20 °C

Operating Humidity 0-95 %RH
