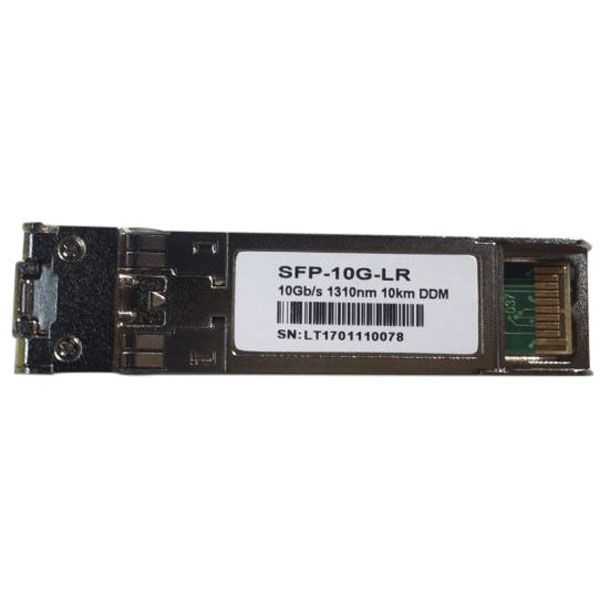

NovaStar SFP Module (SM)

LC-connector

Transfer up to 10 km

Supports 9.95 to 11.3 Gb/s bit rates

Hot-pluggable

The Novastar 10G SFP transceiver modules can be used for all Novastar products which are equipped with SFP fibre port. Such as MCTRL 4 K(101652) / CVT4 KS(101653) / MCTRL 660PRO(101621) / R5(101650) / Pro HD(101631) / UHD jr. (101633) / UHD (101634)

All SFP modules are equipped with LC connector, and therefore easy to combine with the Highlite fibre optic breakout cables and drums (102050 / 102051 / 102052 / 102053)

Optical

SFP Module Fibre Connector Type LC

Fibre Mode Single-mode

Maximum Transmission Distance 10000 m

Control and Programming

Control System Novastar

Port Mapping Software Based

Electrical Specifications and Connections

Power Supply 3 VDC

Power Consumption 1.5 W

Mechanical Specifications

Width (without handles) 14 mm

Height (without handles) 12 mm

Depth (without handles) 57 mm

Weight 0.02 kg

IP Rating IP20 (indoor use only)

Thermal Specifications

Maximum Ambient Temperature 70 °C

Operating Humidity 0-80 %RH
