NovaStar M3 MFN300 Function Box

2x ethernet port connection for use at any position within the screen network

2x external sensor inputs for additional for additional Light/Temperature sensor

Audio output

RS-232 connection

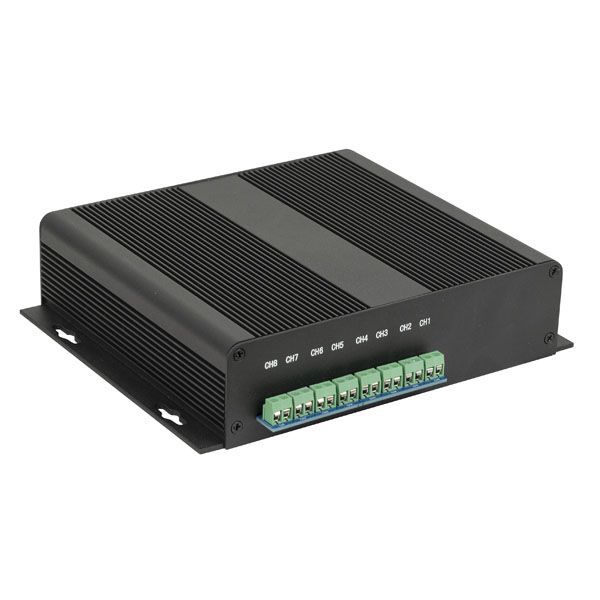

8x relay power switch control

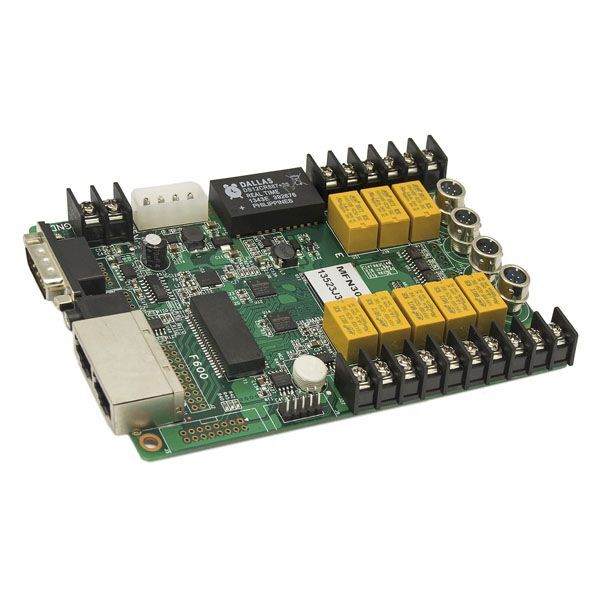

The Novastar MFN300 is a multifunction box with a variety of auxiliary functions in compact housing. It can be easily added to the screen setup at any desired position within the ethernet screen connection. The MFN300 function box allows you to add a variety of functions such as: sensor inputs to connect Light or Temperature sensors to the screen setup but it also has eight onboard relay contacts, RS 232 connection, audio output.

Inputs

RS-232 1

Light Sensor Port 2

Temperature Sensor Port 2

Outputs

Main Output Connector TRS balanced 3.5 mm

Relay Contacts 8

Relay Contact Type NC

Control and Programming

Control System Novastar

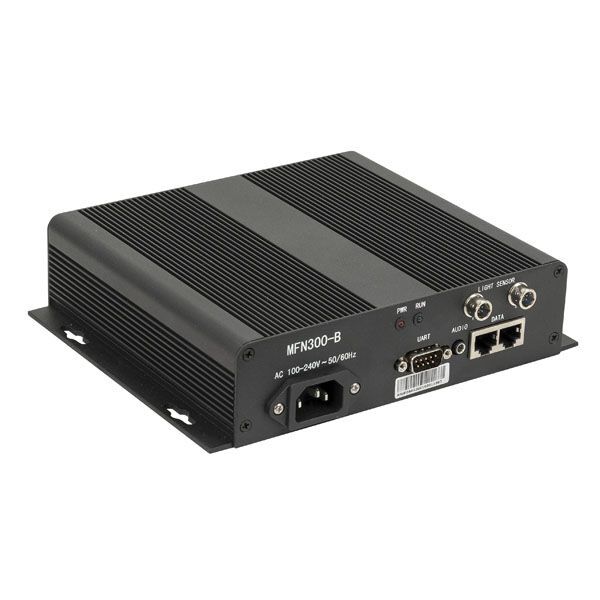

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 3.8 W

Power Connector in IEC

Data Connector in RJ45

Data Connector out RJ45

Mechanical Specifications

Height (including handles) 49 mm

Width (including handles) 206 mm

Depth (including handles) 186 mm

Weight 1.12 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Product Properties

Cooling Convection

Thermal Specifications

Maximum Ambient Temperature 70 °C

Minimum Ambient Temperature -20 °C

Operating Humidity 0-95 %RH

Included Items

Included Cables IEC cable
