48-bit/pix maximum colour depth
4096 x 2160p/ 60Hz maximum single link resolution
1920 x 1080p/ 60Hz maximum 3D resolution over single link
HDMI 2.0 increases the maximum TMDS per channel throughput from 3.4 Gbit/s to 6 Gbit/s which allows for a maximum total TMDS throughput of 18 Gbit/s.[145] This allows HDMI 2.0 to carry 4 K resolution at 60 fps.
HDMI 2.0 include the options of the Rec. 2020 colour space, Dual View, 4:2:0 chroma subsampling, 25 fps 3D formats, up to 32 channels of audio, up to 1536 kHz audio (for example 7.1 channels of 192 kHz), up to 4 audio streams, 21:9 aspect ratio, the HE-AAC and DRA audio standards, dynamic auto lip-sync, improved 3D capability, and additional CEC functions
Electrical Specifications and Connections
Impedance 100 Ω
Data Connector in HDMI
Data Connector out HDMI
Connector 1 HDMI
Connector 2 HDMI
Cable Length 3 m

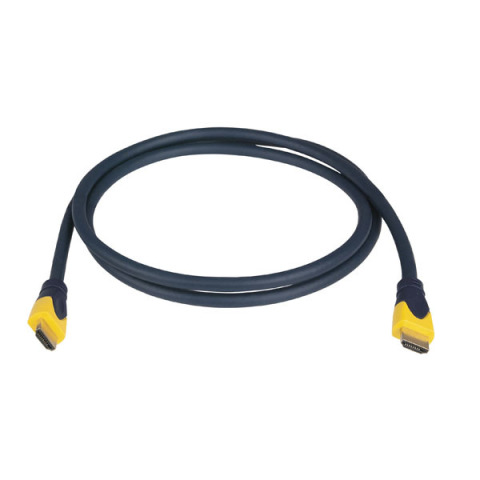

Cable Type HDMI 2.0 4K 60 Hz
Pins 19
Mechanical Specifications
Weight 0.206 kg
Colour Blue
Product Properties
Contact Type Gold plated
1st Shield Braided
Conductors 19
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
