DAP SC-5.2 Source Control

Stereo audio source selector and volume control

5 line-level inputs (1 balanced)
Balanced master output

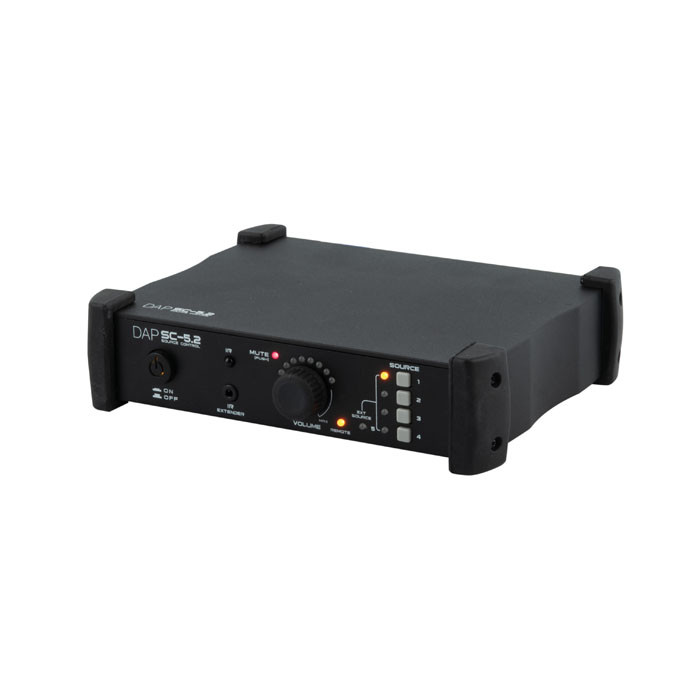

Front panel volume control and LED indicator

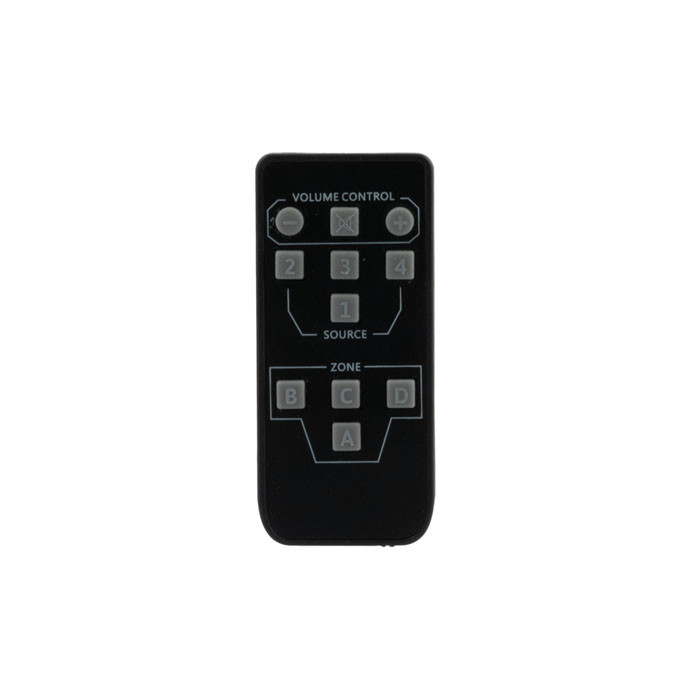

Remote control with zone selection (up to 4) included
Up to 8 zones assignable

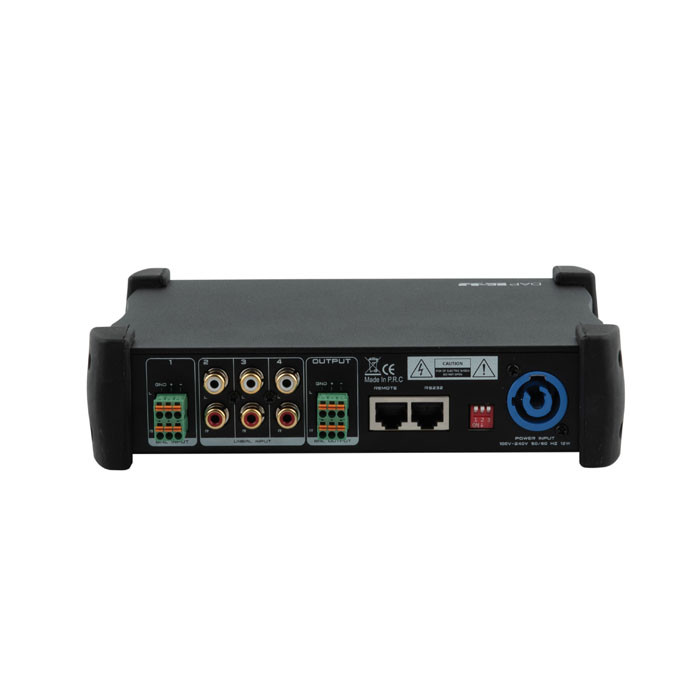

The DAP SC-5.2 Source Control is a stereo audio source selector with volume and remote control for installation purposes. It allows you to adjust the volume and switch audio sources on the unit itself, via the included IR remote control, or via a separately available wall panel, the SC-WP1. It has 3 unbalanced audio line inputs with gold-plated RCA connectors, 1 balanced audio line input with a terminal plug that is suitable for long cable runs, and an additional summed mono audio input via the separately available SC-WP1 Wall Panel, which can be switched between line level and phone level. The output provides a balanced stereo audio signal via a terminal connector. The volume is set using a rotary encoder which controls a digital potentiometer for high-quality sound. The volume setting is indicated by LEDs.

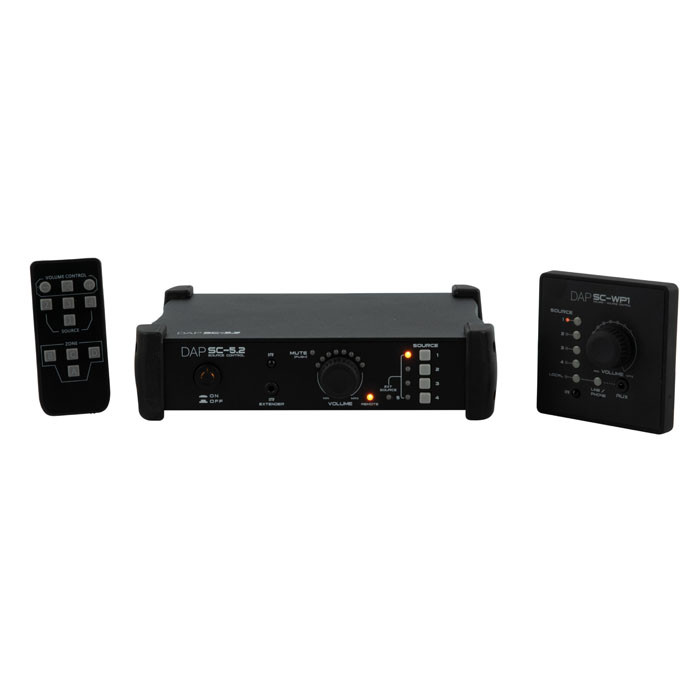

The SC-WP1 wall panel is connected via a standard RJ45 port and shielded CAT5/CAT6 cables. An additional RJ45 input is available for controlling the SC-5.2 Source Control from an RS232/RS485-compatible device. An IR remote extension port is provided for connecting an optionally available IR extender in cases where there is no direct line of sight possible between the remote and the SC-5.2 unit. Up to 8 zones can be created using the DIP switches and up to 4 zones can be controlled using the supplied remote control.

Inputs
Stereo Inputs     5
Stereo Input Connector   RCA/TRS unbalanced 3.5 mm, Phoenix, RCA
Stereo Balanced Input Maximum Level   155 dBu
Stereo Input Impedance    300000 Ω

Outputs
Main Outputs    1
Main Output Connector   Phoenix

Audio Specifications
THD Level      < 0.05 %

Frequency Response Minimum   20 Hz
Frequency Response Maximum   20000 Hz

Electrical Specifications and Connections
Power Supply    100-240 VAC 50-60 Hz
Power Connector in   powerCON Blue

Mechanical Specifications
Height (mm)    55 mm
Width (mm)    167 mm
Length (mm)   210 mm
Housing     Aluminium die-cast
Colour      Black
Weight      1 kg
IP Rating   IP20 (indoor use only)

Product Properties
LED Indicators   Channel select, Output level, Power

Thermal Specifications
Minimum Ambient Temperature  40 °C

Included Items
Included Cables   Power Pro Cable
