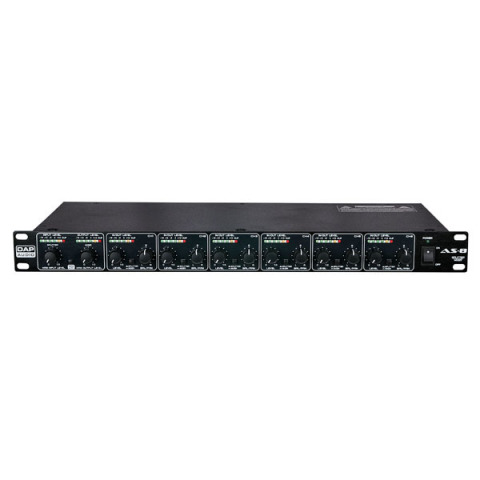

DAP AS-8 8-channel XLR/Jack 3-pin audio splitter/mixer

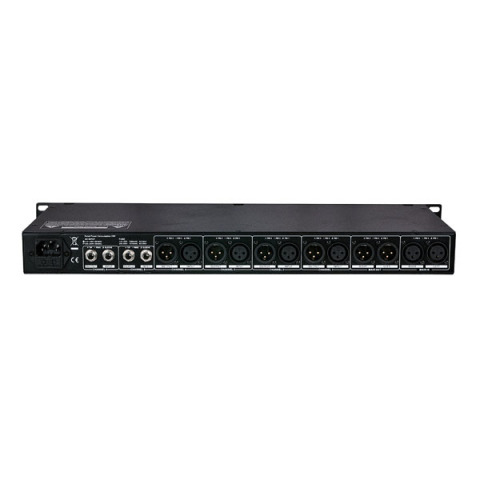

2x Jack and 6x XLR in/out

Switchable splitter/mixer function

Wide range headroom

The DAP AS-8 can be used for multiple purposes. The intelligent design makes it easy to switch between a controllable audio mixer with multiple inputs, to a signal splitter with multiple controllable outputs. This makes the AS-8 a multifunctional solution for your own monitor mix, multi-zone system, conference application and more.

Inputs

Mono Inputs 8

Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm

Mono Balanced Input Maximum Level 21 dBu

Mono Input Impedance 50 Ω

Outputs

Main Outputs 8

Main Output Connector 3-pin XLR, TRS balanced 6.3 mm

Main Output Impedance 60 Ω

Audio Specifications

THD Level < 0.002 %

Signal-to-noise Ratio > 95 dB

Frequency Response Minimum 5 Hz

Frequency Response Maximum 40 Hz

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Power Consumption 11.2 W

Fuse 3.15 A

Power Connector in IEC

Mechanical Specifications

Height (mm) 44 mm

Width (mm) 483 mm

Length (mm) 195 mm

Flightcase Size 19"

Rack Units 1 U

Weight 2.7 kg

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black

Product Properties

LED Indicators Input level, Output level, Power

Included Items

Included Cables IEC cable

Included Accessories Rubber feet, User Manual
