DAP CAT6a U/FTP Lan Cable Spool 305 m, Black Jacket

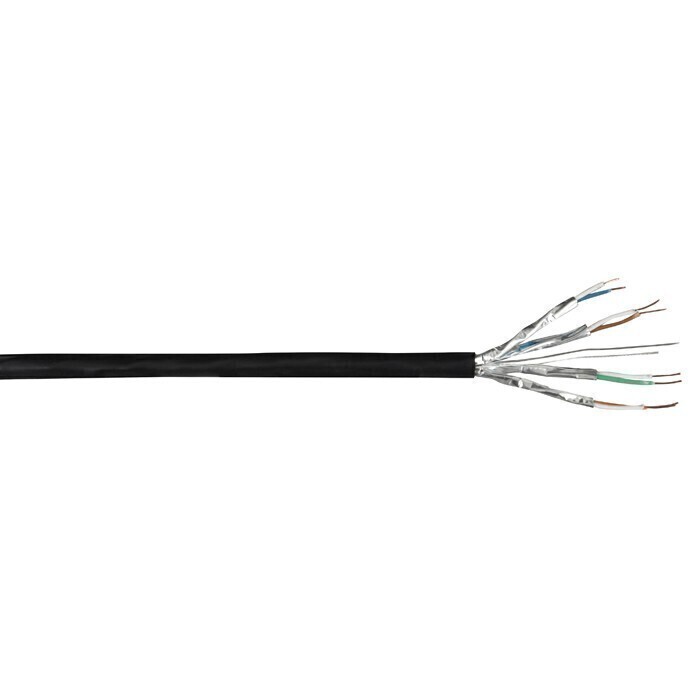

CAT6a U/FTP network cable

Suitable for various applications

Meter indicator

Black

Speed up to 10 Gbps

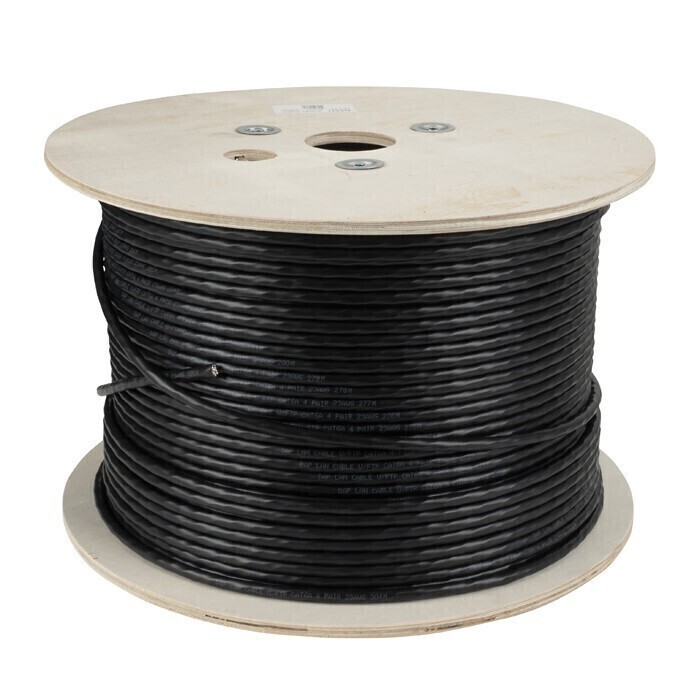

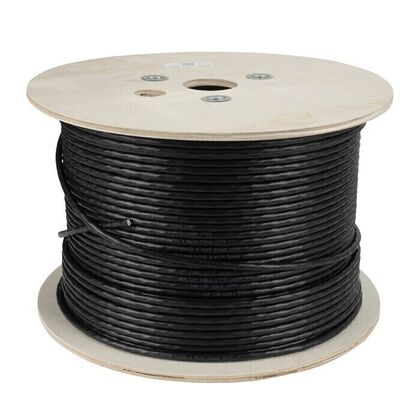

The DAP CAT6a U/FTP is a high quality U/FTP (Unshielded with Foiled Twisted Pairs) network cable, suitable for various U/FTP connections to 10 Gbps. It will work for either (fast) ethernet, video, audio and lighting solutions, like video, DMX and audio controllers and mixers. The CAT6a U/FTP can be used either for 10, 100, 1000 and 10.000 Mbps applications. This 305 m long network cable comes in black on a spool. It comes with a very handy tool for installers and resellers since it has a indicator mark for every single meter.

Electrical Specifications and Connections

Cable Length 305m

Pins 8

Conductor Resistance 93.8 Ω/km

Capacity Inner conduct. Shield/Inner conduct. 0.33 pF/m

Maximum Wire Size AWG 23 AWG

Outer Isolation Type PVC

Mechanical Specifications

Weight 18.88 kg

Material PVC

Colour Black

Product Properties

1st Shield Aluminium foil

Conductors 8

Packaging Spool

Thermal Specifications

Maximum Ambient Temperature 60 °C

Minimum Ambient Temperature -20 °C
