DAP SC-WP1 Wall panel remote for SC-5.2 Source Control - Black

Remote control for SC-5.2 Source Control
Auxiliary audio input for line/phone sources (summed mono)
Connects via standard shielded CAT5 or CAT6 cable
Fits in a standard square wall box (ABB Hafobox 190, Gira 2896 00, etc.)

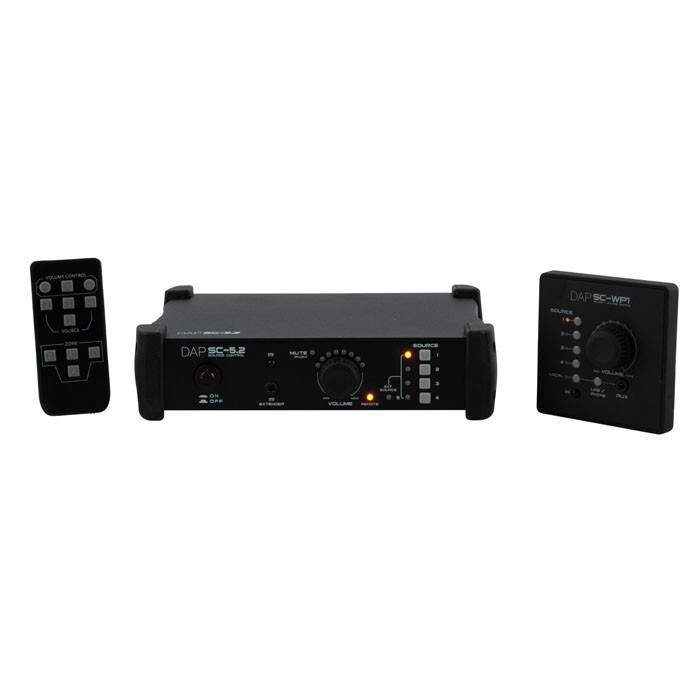

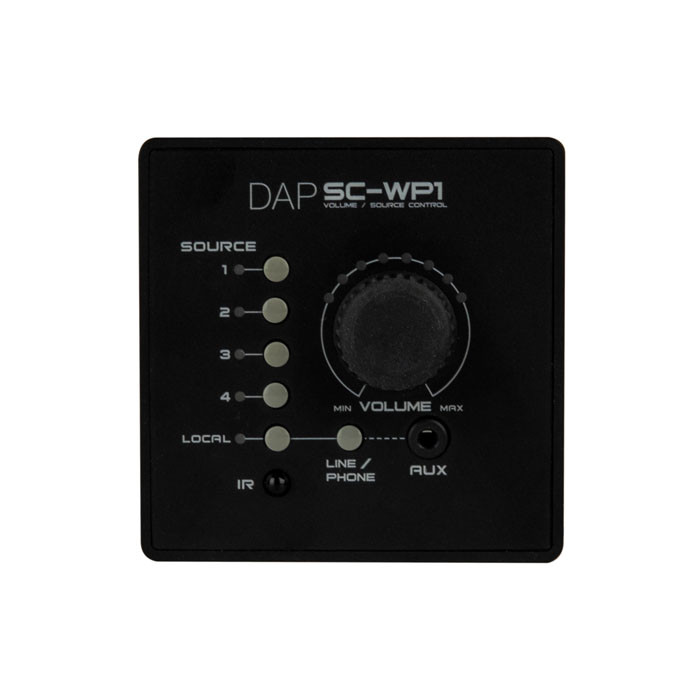

The DAP SC-WP1 is a wall panel remote control for the DAP SC-5.2 Source Control. The rotary encoder controls the volume and the tactile switches allow you to select the input source. The SC-WP1 provides an additional line or phone input via a 3.5 mm jack, which is passed through to the SC-5.2 in mono. It has an IR sensor and acts as a relay for remote control signals from the SC-5.2 remote control.
The SC-WP1 can be installed in a standard square wall box and connects to the SC-5.2 via an RJ45 port and a standard shielded CAT5 or CAT6 cable. It has two RJ45 ports allowing up to 8 units to be daisy-chained to one SC-5.2. An on-board DIP switch assigns the SC-WP1 to one of 8 zones. The SC-WP1 is available in black or white.

Inputs
Stereo Inputs           1
Stereo Input Connector  TRS balanced 3.5 mm

Mechanical Specifications
Height (mm)             40 mm
Width (mm)              84 mm
Length (mm)             84 mm
Housing                 Plastic
Colour                  Black
Weight                  0.075 kg
IP Rating               IP20 (indoor use only)

Product Properties
LED Indicators          Channel select, Output level

Thermal Specifications
Minimum Ambient Temperature  40 °C
