Rugged zinc diecast shell
Suitable for cables from 3.5 mm - 8 mm
Internal thread on shell is well protected against any damage

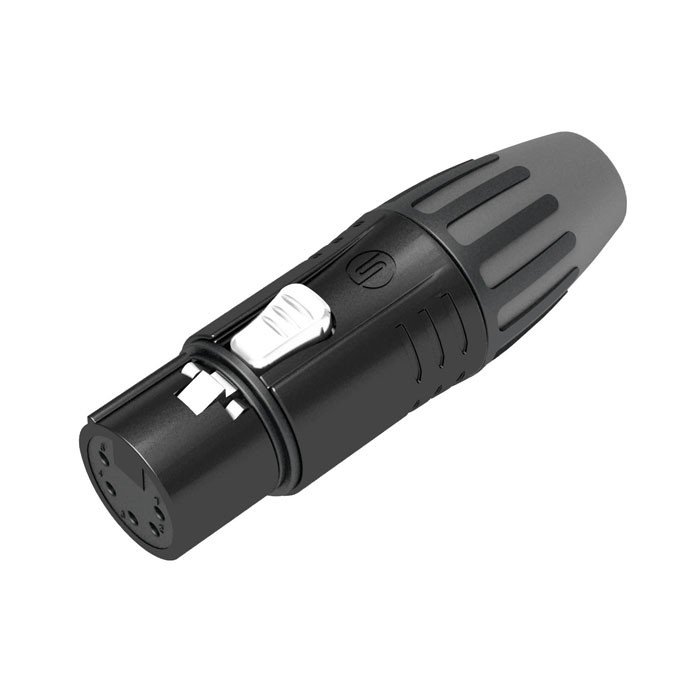

This 5-pin XLR cable connector has a black-coated zinc diecast housing. It comes with two cable chucks for cables with diameters of 3.5 - 6 mm and 6 - 8 mm.
Electrical Specifications and Connections
Flashover Voltage 50 V
Rated Current (A) 7.5 A
Impedance 10 Ω
Pins 5
Maximum Wire Size 1 mm²
Maximum Wire Size AWG 18 AWG
Mechanical Specifications
Length (mm) 64 mm
Diameter 21.3 mm
IP Rating IP40
Housing Metal
Colour Black
Product Properties
Locking Device Latch
Contact Type Gold plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
