For D-size mounting holes
Gold-plated contacts
With latch lock
UL94-V0 flame retardant

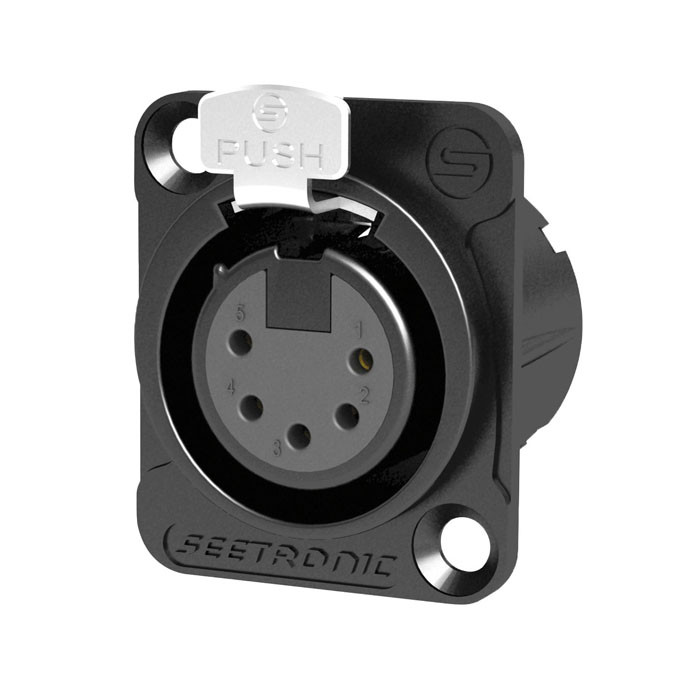

This 5-pin XLR chassis connector has a zinc diecast housing and fits D-size mounting holes. It has a latch lock and can be installed from the front or the rear of a panel.
Electrical Specifications and Connections
Flashover Voltage 1500 V
Rated Current (A) 7.5 A
Pins 5
Mechanical Specifications
Length (mm) 30 mm
Height (mm) 31 mm
Width (mm) 26 mm
IP Rating IP40
Housing Metal
Colour Black
Contact Resistance 5 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Gold plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
Manufacturer:
Showtec
