Rugged zinc diecast shell with sealing jacket
Internal sealing rings for IP65 rating
Suitable for cables from 5 mm - 8 mm
Internal thread on shell is well protected against any damage

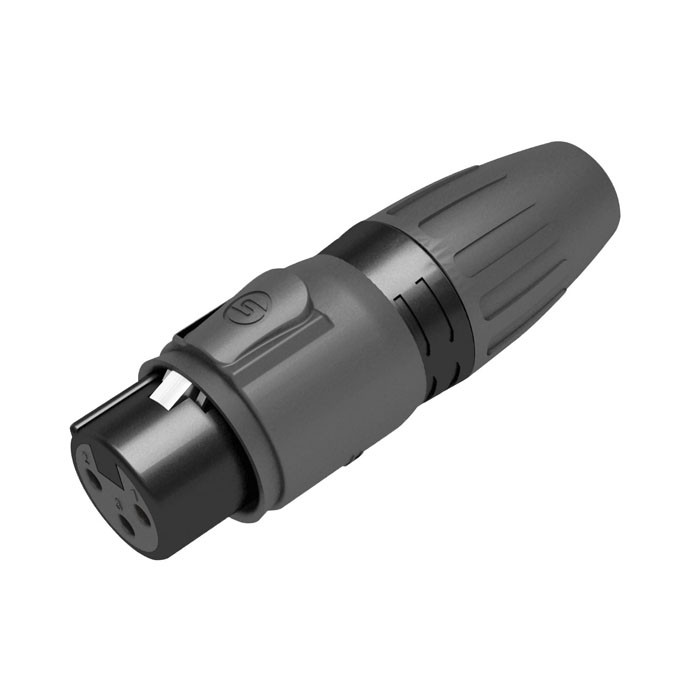

This 3-pin waterproof XLR cable connector has a black-coated zinc diecast housing and a sealing jacket. It has two internal sealing rings to ensure an IP65 rating and it is suitable for cables with an outer diameter between 5 and 8 mm.
Electrical Specifications and Connections
Flashover Voltage 1500 V
Rated Current (A) 16 A
Impedance 5 Ω
Pins 3
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 14 AWG
Mechanical Specifications
Length (mm) 64.1 mm
Diameter 15.8 mm
IP Rating IP65
Housing Metal
Colour Black
Contact Resistance 3 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Silver plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
