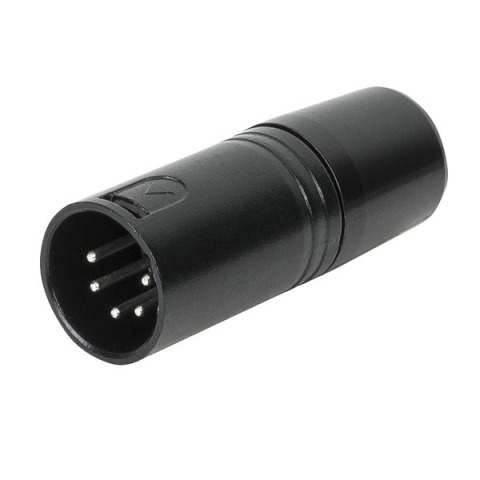

Ideally, a DMX data line will have a DMX Terminator connected across the two data wires. Without DMX Terminator, reflections of fast driver edges can cause data corruption. The DMX Terminator also reduce electrical noise sensitivity due to the lower impedance.
Electrical Specifications and Connections
Impedance 110 Ω
DMX Connector in XLR 5P
Pins 5
Mechanical Specifications
Length (mm) 55 mm
Height (mm) 20 mm
Width (mm) 20 mm
Weight 0.03 kg
Housing Aluminium
Colour Black
Product Properties
Conductors 5
Manufacturer:
Dap Audio
