Feedthrough type (USB type-A on the front, USB type-B at the back)
Gold-plated contacts
Zinc diecast housing

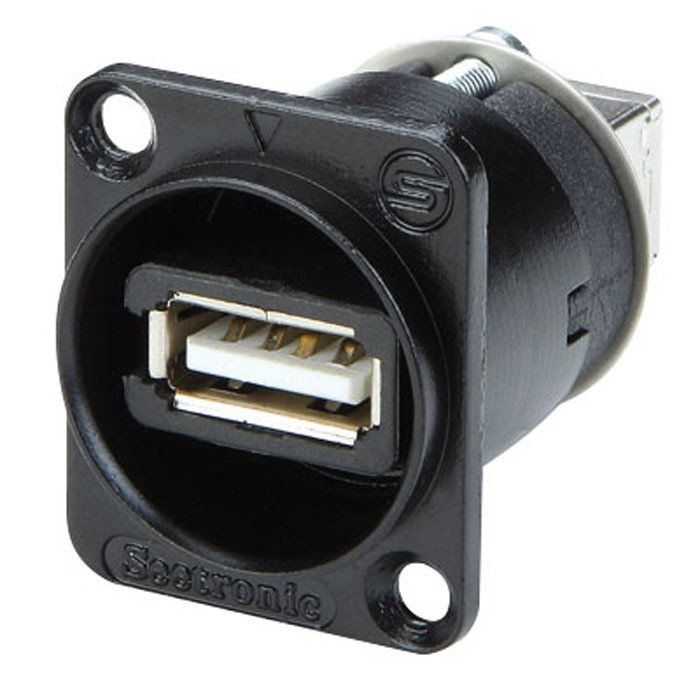

This USB chassis connector fits D-size holes and installs from the front. On the front, it has a USB type-A socket that accepts a USB type-A plug. On the back, this feedthrough connector has a USB type-B socket that accepts a USB type-B plug. It is compatible with the USB 2.0 standard and uses a zinc diecast shell and gold-plated contacts.
Mechanical Specifications
Length (mm) 38.8 mm
Height (mm) 31 mm
Width (mm) 26 mm
Diameter 23.6 mm
Weight 0.1 kg
IP Rating IP20 (indoor use only)
Housing Zinc
Colour Black
Thermal Specifications
Maximum Ambient Temperature 85 °C
Minimum Ambient Temperature -25 °C
