Feedthrough type (RJ45 on front and back)
Up to 1 Gigabit network speed (Cat5e)
Gold-plated contacts
Mounts from the front or rear

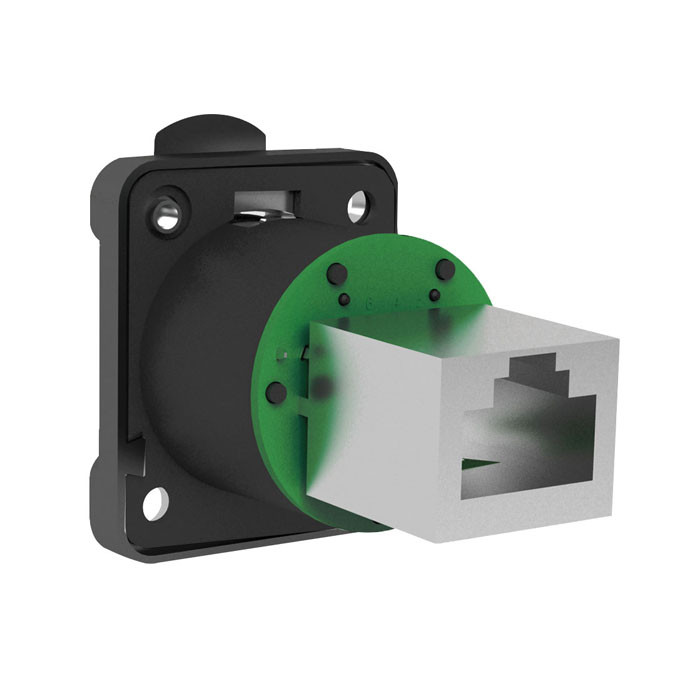

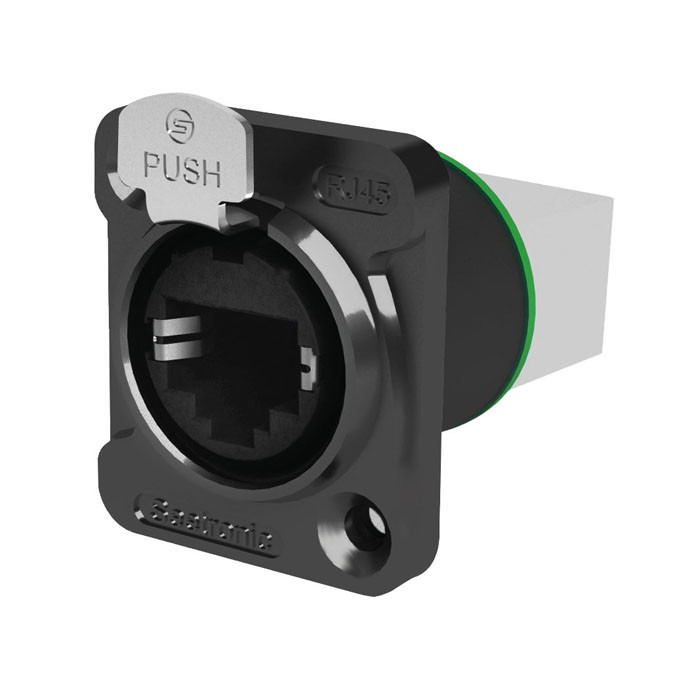

This RJ45 chassis connector fits D-size holes and installs from the front or the rear. On the back, this feedthrough connector has an RJ45 socket that accepts an RJ45 connector. It is suitable for up to CAT5e-supported network speeds (1 Gigabit) and has a latch locking system on the front. It has a zinc diecast shell and uses gold-plated contacts.
Mechanical Specifications
Length (mm) 39.1 mm
Height (mm) 33.1 mm
Width (mm) 27.7 mm
Weight 0.01 kg
IP Rating IP20 (indoor use only)
Housing Zinc
Colour Black
Contact Resistance 10 < mΩ
Product Properties
Locking Device Latch
Contact Type Bronze
Shield Resistance 0.5 Ω/km
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
