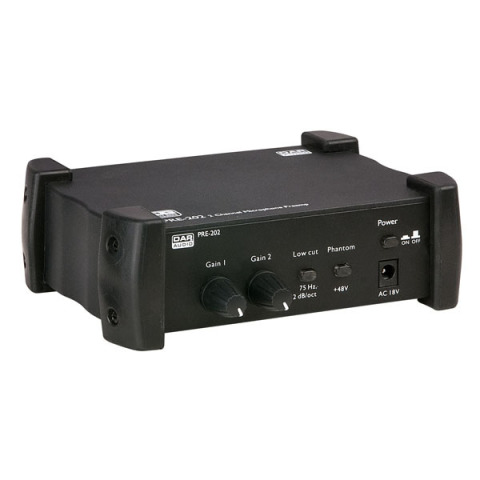

PRE-202 2 Channel Microphone Preamp

+48 V Phantom power

Low cut filter

Sound level control

Low noise preamps

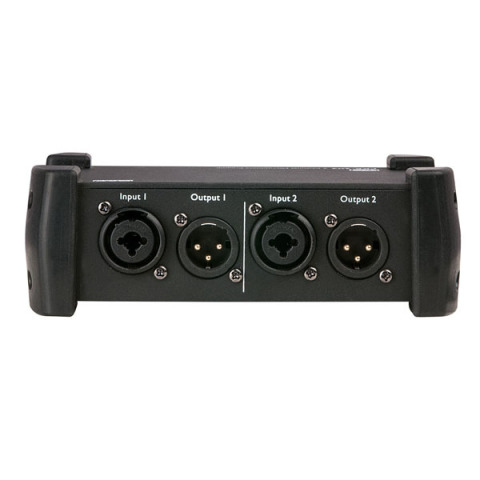

2x XLR/line inputs and 2x XLR outputs

The DAP PRE-202 is a low-noise 2-channel microphone amplifier with +48 V phantom power and low-cut function. The +48 V phantom power function allows you to connect both condenser and dynamic microphones. Its gain option and the low-cut function help you avoid unwanted background noise. This results in excellent output quality.

The PRE-202 is the ideal solution for applications where the use of condenser microphones is desired and the audio system does not supply phantom power to the microphone inputs, or has no microphone inputs at all.

Inputs

Mono Inputs 2

Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm

Mono Balanced Input Maximum Level 4 dBu

Mono Balanced Input Sensitivity 50 dBu

Outputs

Main Outputs 2

Main Output Connector 3-pin XLR

Main Output Maximum Level 22 dBu

Audio Specifications

THD Level < 0.01 %

Frequency Response Minimum 20 Hz

Frequency Response Maximum 20 Hz

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Output Voltage 18 VAC

Power Consumption 2.5 W

Power Connector in Low Voltage DC plug

Mechanical Specifications

Height (mm) 53 mm

Width (mm) 158 mm

Length (mm) 135 mm

Weight 0.67 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Product Properties

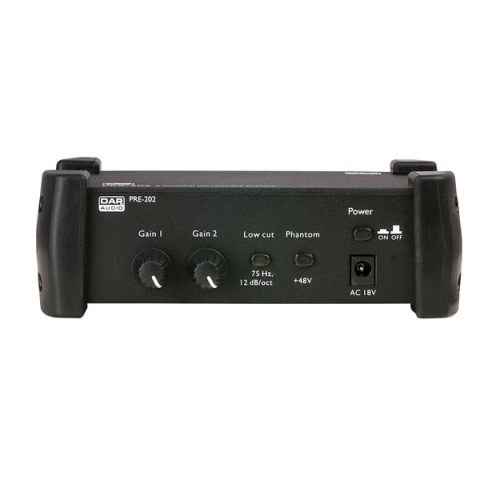

LED Indicators +48V, Low Cut, Pad, Power

Included Items

Included Accessories Adapter
