Input (2x Jack/XLR + 2x RCA) to output (XLR)
2 stereo inputs
2 mono inputs
Balanced outputs
Switchable line/instrument mono inputs

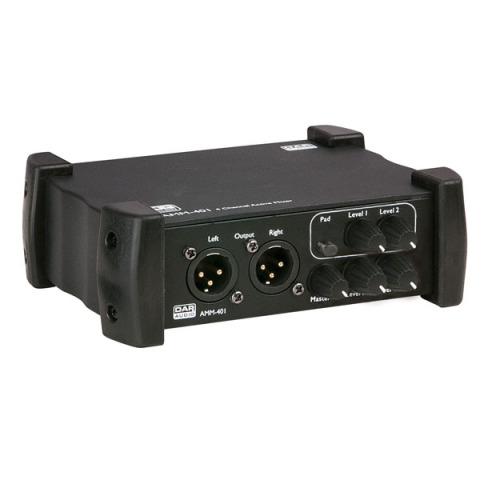

The DAP AMM-401 is a 4-channel active mixer in a very compact housing. An ideal audio tool for sound engineers or musicians who need to be able to improvise regularly. It can also be useful to expand a USB-Audio interface with some extra inputs. It is a most simplistic mixer with 4 volume controls for 2 stereo and 2 mono inputs. The mono inputs can be used for instrument microphones, as well as for line level sources using the PAD switch.

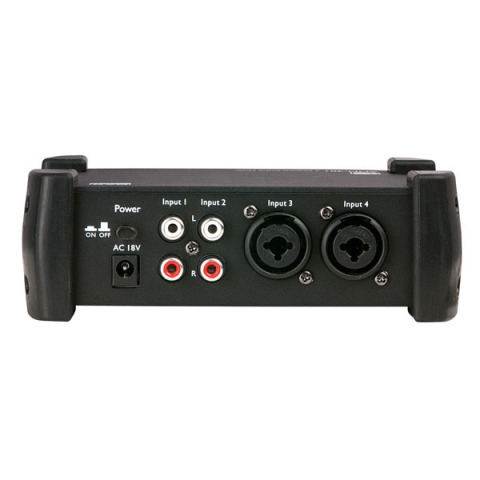

Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Impedance 50000 Ω
Stereo Inputs 2
Stereo Input Connector RCA
Stereo Input Impedance 50000 Ω

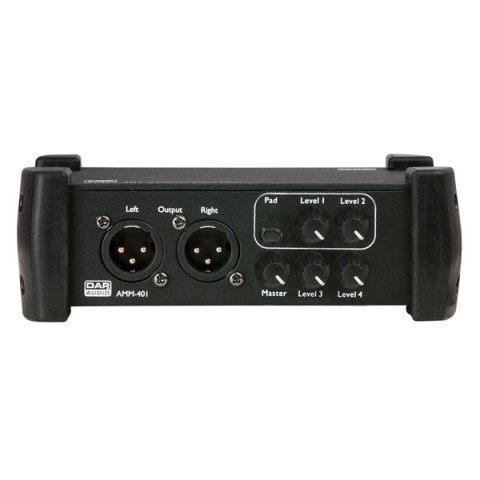

Outputs
Main Outputs 1
Main Output Connector 3-pin XLR
Main Output Impedance 12000 Ω
Audio Specifications
THD Level < 0.01 %
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Sound Editing
Attenuation -10dB
Electrical Specifications and Connections
Power Supply 240 VAC 50-60 Hz
Output Voltage 18 VAC
Power Consumption 2.5 W
Power Connector in Low Voltage DC plug
Mechanical Specifications
Height (mm) 53 mm
Width (mm) 158 mm
Length (mm) 135 mm
Weight 0.7 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
LED Indicators Pad, Power
Included Items
Included Accessories Adapter
