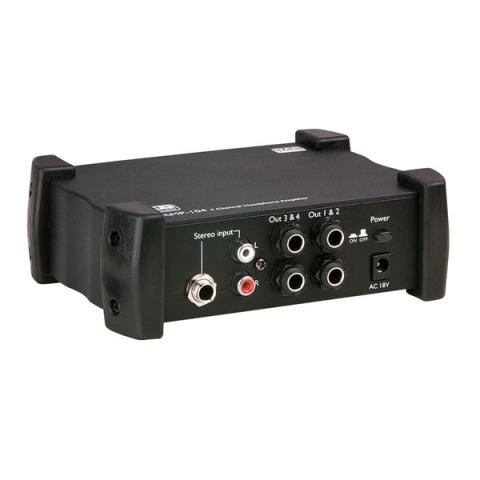

AMP-104 4 Channel Headphone Amplifier

Stereo Jack & stereo RCA input

8x mono Jack output

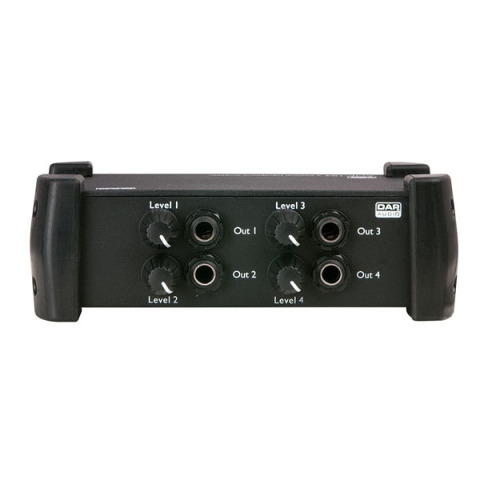

4x sound level control

Road proof housing

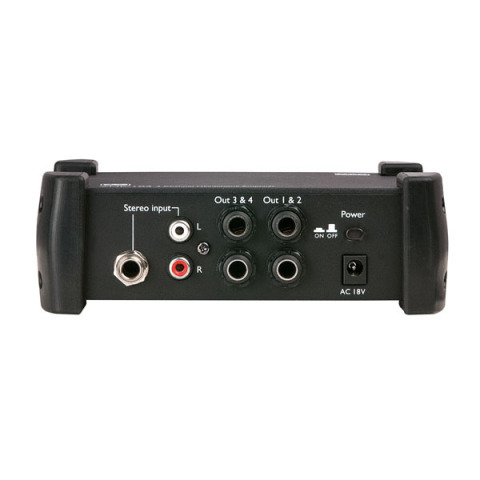

The DAP AMP-104 is a 4-channel headphone amplifier for extending four 6.3 mm jack stereo outputs with individual volume control. It has both RCA and 6.3 mm TRS jack stereo inputs, allowing you to use it for multiple applications. The headphones can be connected on both sides of groups of 2, used to have a total of 8 outputs (4 volume controls controlling 2 outputs each).

Inputs

Stereo Inputs 1

Stereo Input Connector RCA, TRS balanced 6.3 mm

Stereo Input Impedance 10000 Ω

Outputs

Main Outputs 4

Main Output Connector TRS balanced 6.3 mm

Headphone Output 8

Headphone Output Connector TS balanced 6.3 mm

Headphone Output Power 50 mW

Headphone Output Impedance 50 Ω

Audio Specifications

THD Level < 0.01 %

Frequency Response Minimum 20 Hz

Frequency Response Maximum 20000 Hz

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Output Voltage 18 VAC

Power Consumption 3 W

Power Connector in Low Voltage DC plug

Mechanical Specifications

Height (mm) 53 mm

Width (mm) 158 mm

Length (mm) 135 mm

Weight 0.72 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Product Properties

LED Indicators Power

Included Items

Included Accessories Adapter, User Manual
