Lockable 16 A single phase connector
Extremely robust and reliable
Easy and reliable twist lock system
IP65 when mated or with sealing cover mounted

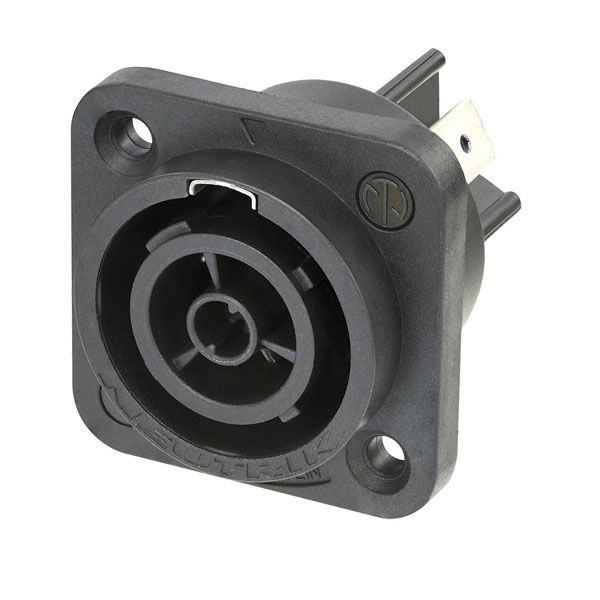

The powerCON TRUE1 is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Electrical Specifications and Connections
Rated Current (A) 16 A
Flashover Voltage 250 V
Pins 3
Minimum Wire Size 1 mm²
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 12 AWG
Mechanical Specifications
Length (mm) 43 mm
Height (mm) 35.4 mm
Width (mm) 35.4 mm
Diameter 28.7 mm
Weight 0.02 kg
IP Rating IP65
Housing Polyamide
Colour Black
Product Properties
Pin Connection FASTON Terminal, Solder
Supplier Type Number NAC3FPX-TOP
Contact Type Copper
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
