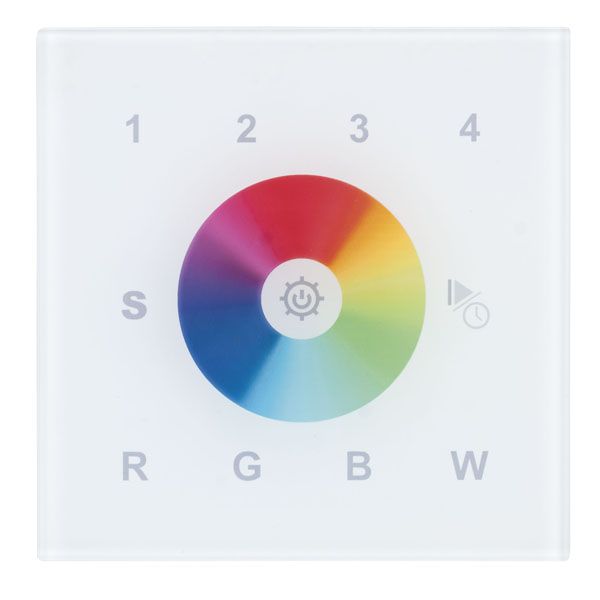

Touch and Wi-Fi control
Generates DMX signals
Controls up to 4 zones, each with 4 channels
The Play wall panels are available in several combinations of RF (radio frequency), DMX and Wi-Fi. RF panels send out an RF signal to wireless RF receivers. These panels can be used together with an additional remote control. DMX versions generate a DMX signal for direct use with DMX compatible products. Wi-Fi panels can be controlled with the Easy Lighting app, available for iOS and Android devices.
Control and Programming
Control Mode DMX, RF
DMX Channels 4
Protocols DMX/RF
Electrical Specifications and Connections
Power Supply 12-24 VDC
Power Connector in Open End
DMX Connector out Open end
Mechanical Specifications
Length (mm) 86 mm
Height (mm) 31 mm
Width (mm) 86 mm
Weight 0.2 kg
IP Rating IP20 (indoor use only)
Housing Plastic
Colour White
Thermal Specifications
Minimum Ambient Temperature -20 °C
Maximum Surface Temperature 50 °C
