4-channel RGB(W) LED strip controller
Power output range: 0—45 W
12-36 VDC / 200—1400 mA
Easy configuration

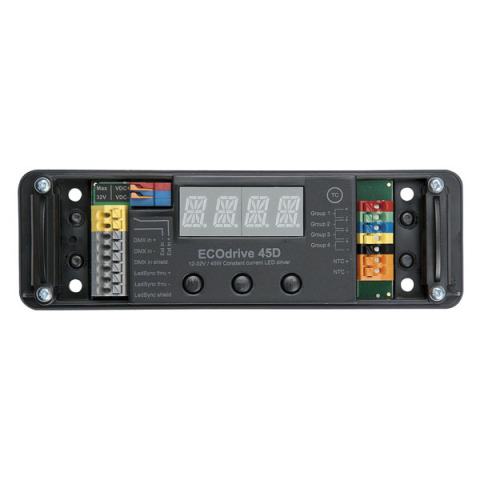

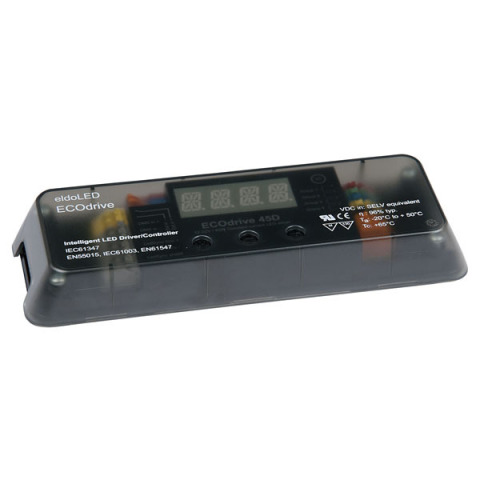

The ECOdrive DC45 W is a highly integrated, cost effective, enclosed and by display easy-to-configure
constant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of (12 V-32 V DC), the
ECOdrive DC45 W is the ideal choise for powering 200 mA - 1400 mA HB LEDs
Control and Programming
Control Mode DMX
DMX Channels 4
Protocols DMX
Electrical Specifications and Connections
Power Supply 12-32 VDC
Output Voltage 12-32 VDC
Maximum Output Current (mA) 1400 mA
Maximum Output Current (A) 1.4 A
Power Connector in Open End
Power Connector out Open End
Mechanical Specifications
Length (mm) 153 mm
Height (mm) 23 mm
Width (mm) 50 mm
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
