1500 W / 136 dB SPL @ 1 m
18" Celestion Ferrite Magnet subwoofer with 4" voice coil
Class-D Amplifier
Configurable DSP-optimised amplification
Quick and easy setup (4-point suspension system)

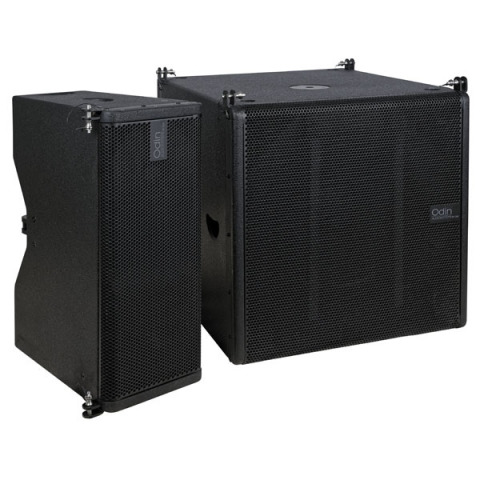

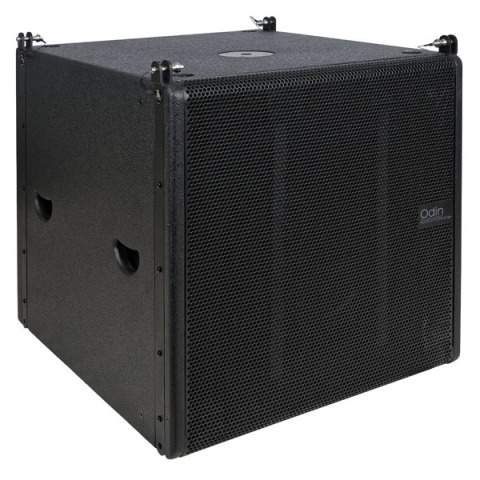

The DAP Odin S-18A is a versatile active Line Array Subwoofer suitable for small to big crowds. For a punchy full-range sound, you can hang or stack this 1500 W Class D subwoofer (6000 W peak) together with DAP Odin T-8A satellites by using the DAP Odin FB-02 stack bar as adapter and the DAP Odin FB-01 as fly bar.
The S-18A is equipped with an 18" Celestion Ferrite Magnet subwoofer containing a 4" voice coil producing up to a staggering 136 dB SPL @ 1 meter distance. The DSP settings are configurable for making sure that the S-18A delivers under any circumstance and any setup. Several DSP presets are also available, including "Cardioid" mode.
Building a complete Odin Line Array set can be done by just one person due to its 4-point suspension system. Not only is the setup quick and labour saving, it also is a very modular system, allowing different setups to fit any location. You can use the optional 35 mm pole mount adapter to arrange a Satellite setup. Or integrate the optional stack frame or fly bar and use the suspension points to arrange a stack or Line Array setup which suits your venue best.
Free Odin Editor software in combination with the CL-4 Connect allows to adjust the EQ, gain and delay freely per speaker or group of speakers from your Windows PC/laptop. It'll also allow you to see live information about each speaker, such as amplifier temperature and high/low output. EASE Focus 3 software can be used to calculate the Splay Angle and "Throw". A plug-in has been developed for adding our speakers to its database.
Please note that powerCON cables & network cable are not included but are to be ordered separately.
Outputs
Low Driver Power 1200 W
RMS Output Power Amplifier 1500 W
Peak Output Power Amplifier 6000 W
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 90 dB
AD/DA Convertor Sample Rate 48 kHz
Amp Technology Class D
Damping Factor 200 :1
Speaker System Subwoofer
Speaker Sensitivity (1 W/1 m) 98 dB
Speaker Impedance 8 Ω
Maximum SPL at 1 m 136 dB
DSP Processor Bitrate 32-bit
Frequency Response (-3dB) Minimum 41 Hz
Frequency Response (-3dB) Maximum 110 Hz
Crossover Frequency Low 32 Hz
Crossover Frequency High 90 Hz
Woofer Diameter 18 "
Woofer Voice Coil 4 "
Woofer Magnet Type Ferrite
Subwoofer Dispersion Angle Horizontal 360°
Subwoofer Dispersion Angle Vertical 180°
Sound Editing
Equalizer Range 30 dB
Parametric Output Equalizer 8 Bands
Crossover Filter Types Butterworth
Crossover Slopes 24 dB
Phase Reverse Yes
Internal Storage
User Presets Yes
User Presets Capacity 10
Control and Programming
Control Mode PC Software, Stand Alone

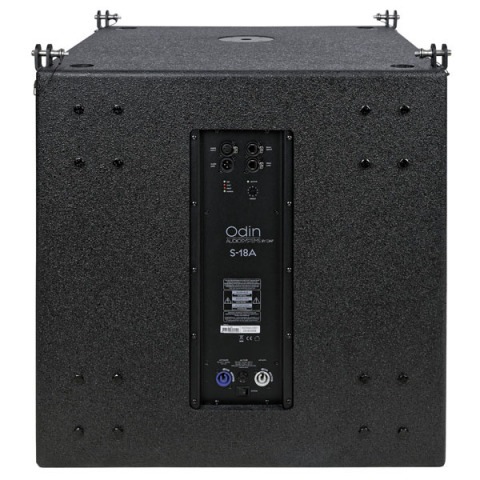

Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 1150 W
Fuse 4 A
Power Connector in powerCON Blue
Power Connector out powerCON Grey
Data Connector in etherCON
Data Connector out etherCON
Mechanical Specifications
Amplifier Cooling Axial fan
Height (mm) 665 mm
Width (mm) 635 mm
Length (mm) 700 mm
Material Wood
Material Thickness 18 mm
Colour Black
Finish Painted
Weight 58.5 kg
IP Rating IP20 (indoor use only)
Product Properties
Pole Mount M20
Electronic Protection Convection-fan, Digital limiter, Overload, Thermal
LED Indicators Clip, Data connect, Power, Protect, Signal
Speaker Grill Material Steel
Speaker Handles Positions Left side, Right side
Castors Optional
Rigging
Mounting Options 4-point suspension
Rigging Options Flying, Stacking
Included Items
Included Cables None
Included Accessories User Manual
Included Rigging None
