5 m - SMD 5050 - IP62 - 3000 K

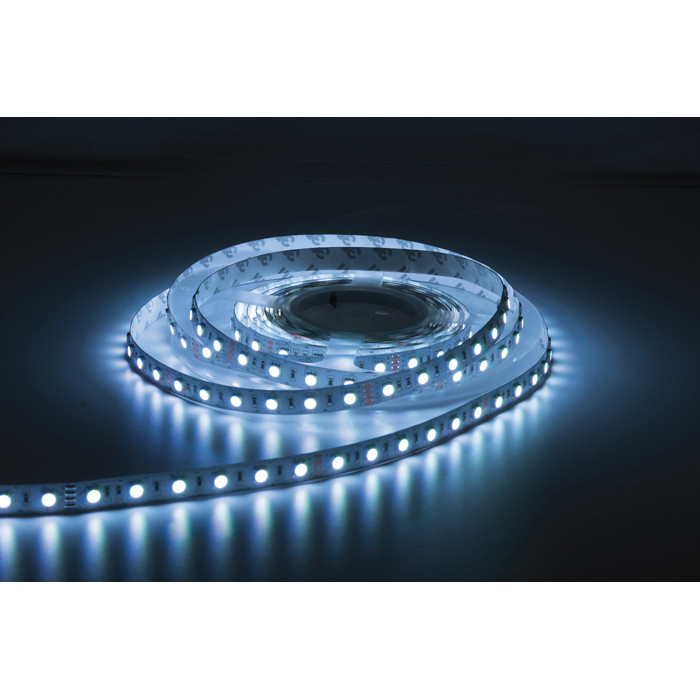

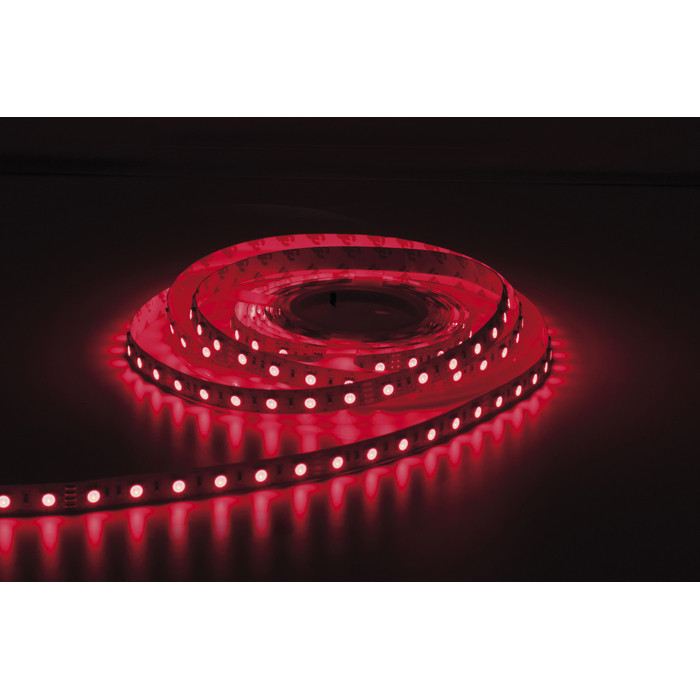

96 W RGB+WW LED Strip
IP62 rating, suitable for humid environments
5 m (16.4 ft) - 60 LEDs per m
12 mm wide
With the help of an LED driver, such as the LINEAdrive, you can control the light intensity up to 96 watt. We recommend the use of aluminum profiles* in order to properly dissipate the heat. LED strip profiles are also used to create a beautiful look & feel.
*Please note: for proper heat dissipation, the profile should NOT be closed with a cover.
Source
Light Source Type LED
Light Source Quantity/m 60
Light Source Power 96 W
LED Colour Type RGBW
Light Source System SMD5050
Lumen Total 3350 lm
Lumen output/m 670 lm
CRI 85
CCT 3000 K
Optical
Beam Angle Circular 120°
Control and Programming
Dimmable Yes
Electrical Specifications and Connections
Power Supply 24 VDC
Power Consumption 96 W
Power/1 m 19.2 W
Driver Excluded
Mechanical Specifications
Length (m) 5 m
Maximum Length (m) 5 m
Cutting Length 100 mm
Height (mm) 3.2 mm
Width (mm) 12 mm
Weight 0.32 kg
IP Rating IP62
PCB Colour White
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
