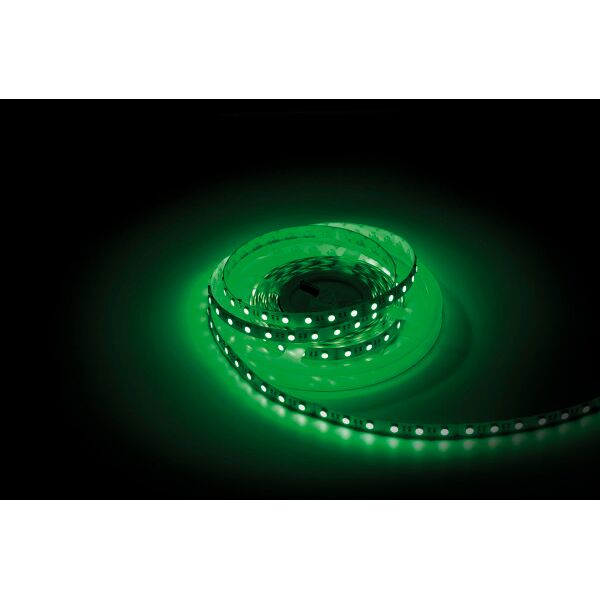

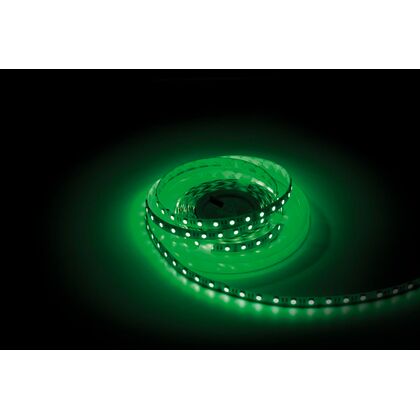

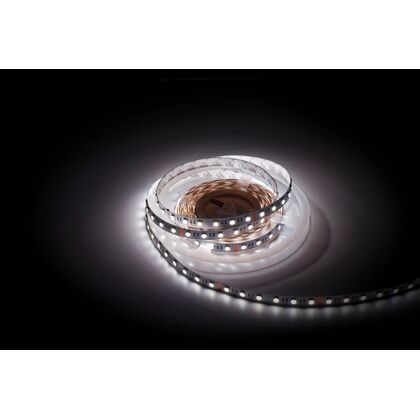

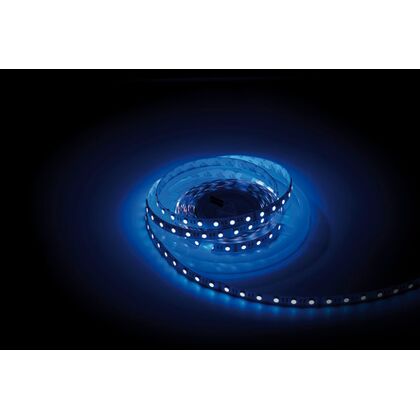

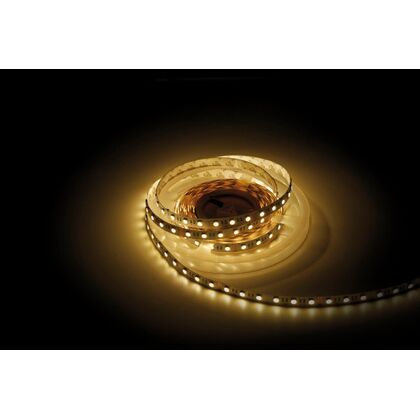

5 m - 5050 LED - 2700 K
The Ribbon series are IP20 LED strips, suitable for dry indoor applications and the best series to be used in an aluminium profile (with a cover for protection against dust and moisture). As it is not coated, the Ribbon series has the best heat dissipation and longest life span. The Multicolour range exists of RGB, RGBW and RGBA strips. The different LED types offer multiple characteristics as luminous flux and light spread is defined by the number of LEDs per metre.
Source
Light Source Type LED
Light Source Quantity/m 60
Light Source Power 0.32 W
Light Source System SMD5050
LED Colour Type RGBW
Lumen Total 4100 lm
Lumen output/m 820 lm
Lumen Red 120 lm
Lumen Green 330 lm
Lumen Blue 60 lm
Lumen White 330 lm
CRI 82
CCT 2700 K
Optical
Beam Angle Circular 120°
Control and Programming
Dimmable Yes
Electrical Specifications and Connections
Power Supply 24 VDC
Power Consumption 96 W
Power/1 m 19.2 W
Driver Excluded
Mechanical Specifications
Length (m) 5 m
Maximum Length (m) 5 m
Cutting Length 100 mm
Height (mm) 2 mm
Width (mm) 12 mm
Weight 0.194 kg
IP Rating IP20 (indoor use only)
PCB Colour White
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
Certifications/Qualifications
Energy Efficiency Class T/B/D
