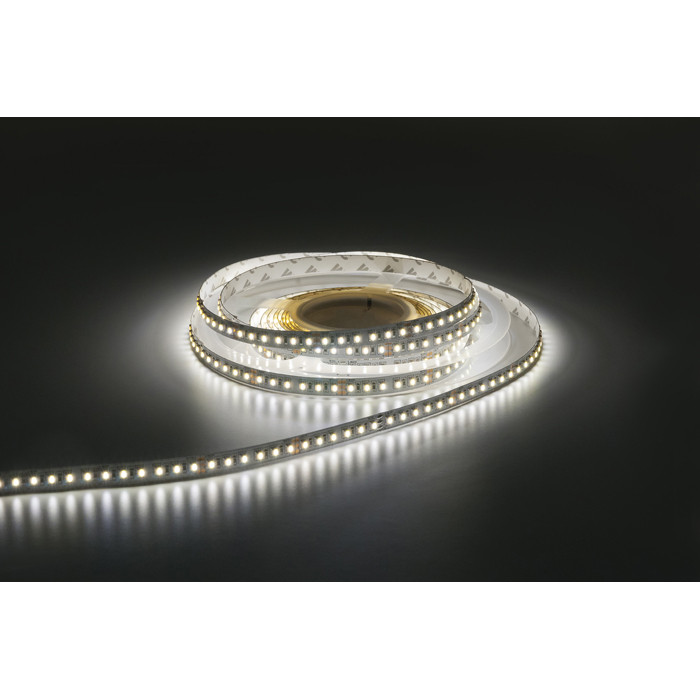

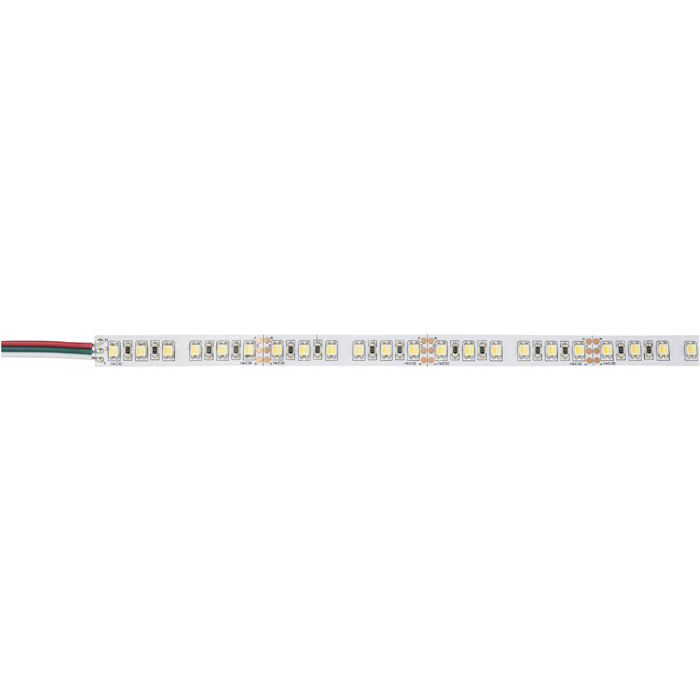

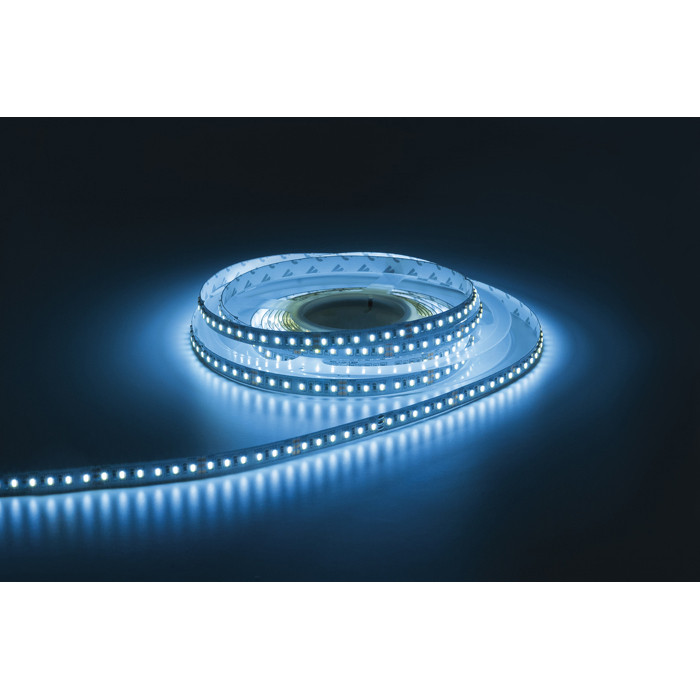

5 m 3528 LED tunable white
Due to production conditions, photometric data can differ per production batch within the EU directive.
Source
Light Source Type LED
Light Source Quantity/m 120
Light Source Power 48 W
Light Source System SMD3528
LED Colour Type WW, CW
Lumen Total 4000 lm
Lumen output/m 800 lm
Lumen White 800 lm
CRI 85
CCT Minimum 2200 K
CCT Maximum 6000 K
Optical
Beam Angle Circular 120°
Control and Programming
Dimmable Yes
Electrical Specifications and Connections
Power Supply 24 VDC
Power Consumption 48 W
Power/1 m 9.6 W
Driver Excluded
Mechanical Specifications
Length (m) 5 m
Maximum Length (m) 5 m
Cutting Length 100 mm
Height (mm) 2 mm
Width (mm) 8 mm
Weight 0.138 kg
IP Rating IP20 (indoor use only)
PCB Colour White
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
