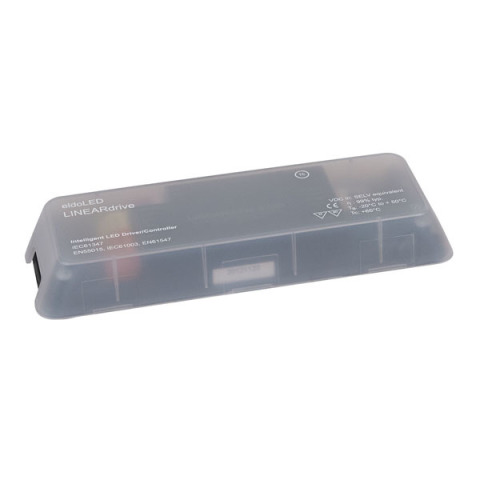

eldoLED LIN220D1 DALI 2 Ballasts 2 outputs
2-channel 200 W LED driver
Smooth, flickerfree dimming with linear and log curves
Made for DALI environment
Auxiliary output
12-28 VDC output up to 8 A in total
eldoLED Lineardrivers are high-end PWM dimmers for flickerfree and smooth dimming, even in the very low ranges. The are available in 0–10 V, Dali and DMX, for single and multicolour.
Control and Programming
Control Mode DALI
Electrical Specifications and Connections
Power Supply 12-28 VDC
Maximum Output Current (A) 8 A
Power Connector in Open End
Power Connector out Open End
Mechanical Specifications
Length (mm) 153 mm
Height (mm) 23 mm
Width (mm) 50 mm
Weight 12 kg
IP Rating IP20 (indoor use only)
Colour Black
