3-in-1 LED technology
High flexibility
High transparence
Low voltage-drop

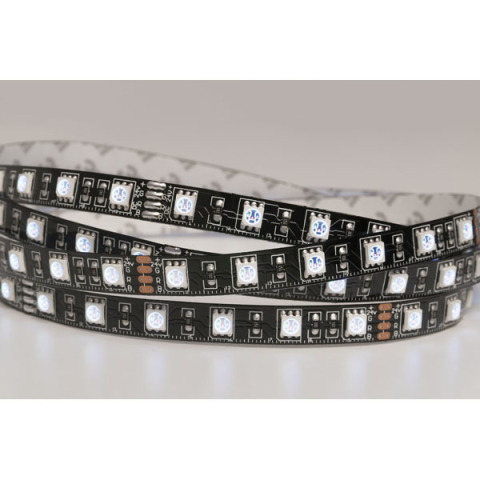

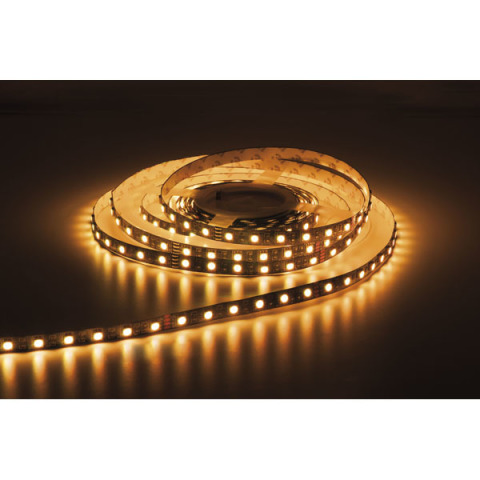

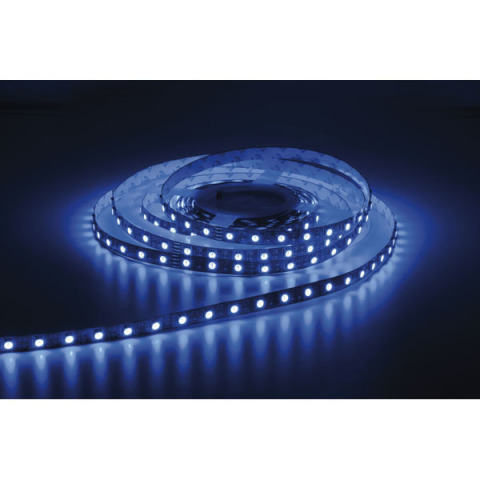

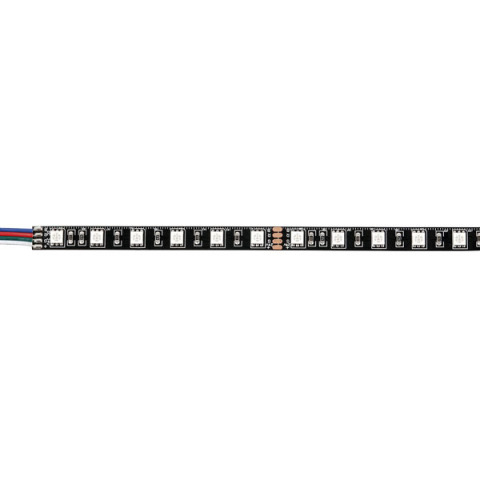

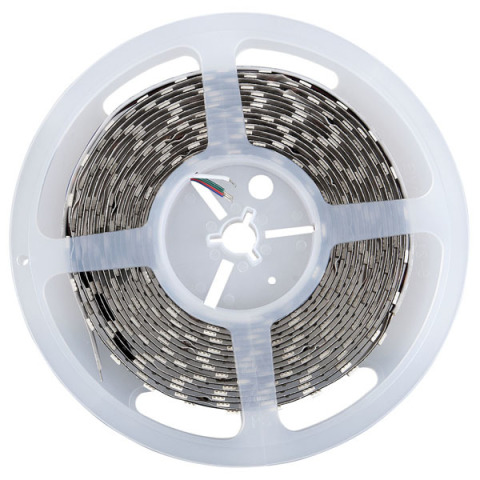

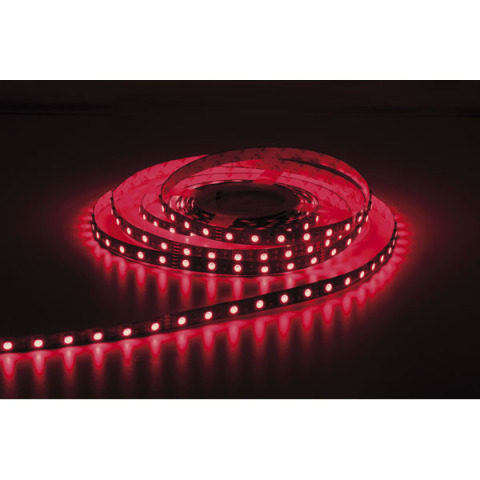

The Ribbon series are IP20 LED strips, suitable for dry indoor applications and the best series to be used in an aluminium profile (with a cover for protection against dust and moisture). As it is not coated, the Ribbon series has the best heat dissipation and longest life span. The Multicolour range exists of RGB, RGBW and RGBA strips. The different LED types offer multiple characteristics as luminous flux and light spread is defined by the number of LEDs per metre.
Source
Light Source Type LED
Light Source Quantity/m 60
Light Source Power 72 W
Light Source System SMD5050
LED Colour Type RGB
Lumen Total 2950 lm
Lumen output/m 590 lm
Lumen Red 140 lm
Lumen Green 370 lm
Lumen Blue 80 lm
CRI 82
Optical
Beam Angle Circular 120°
Control and Programming
Dimmable Yes
Electrical Specifications and Connections
Power Supply 24 VDC
Power Consumption 72 W
Power/1 m 14.4 W
Driver Excluded
Mechanical Specifications
Length (m) 5 m
Maximum Length (m) 5 m
Cutting Length 100 mm
Height (mm) 2 mm
Width (mm) 10 mm
Weight 0.158 kg
IP Rating IP20 (indoor use only)
PCB Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
