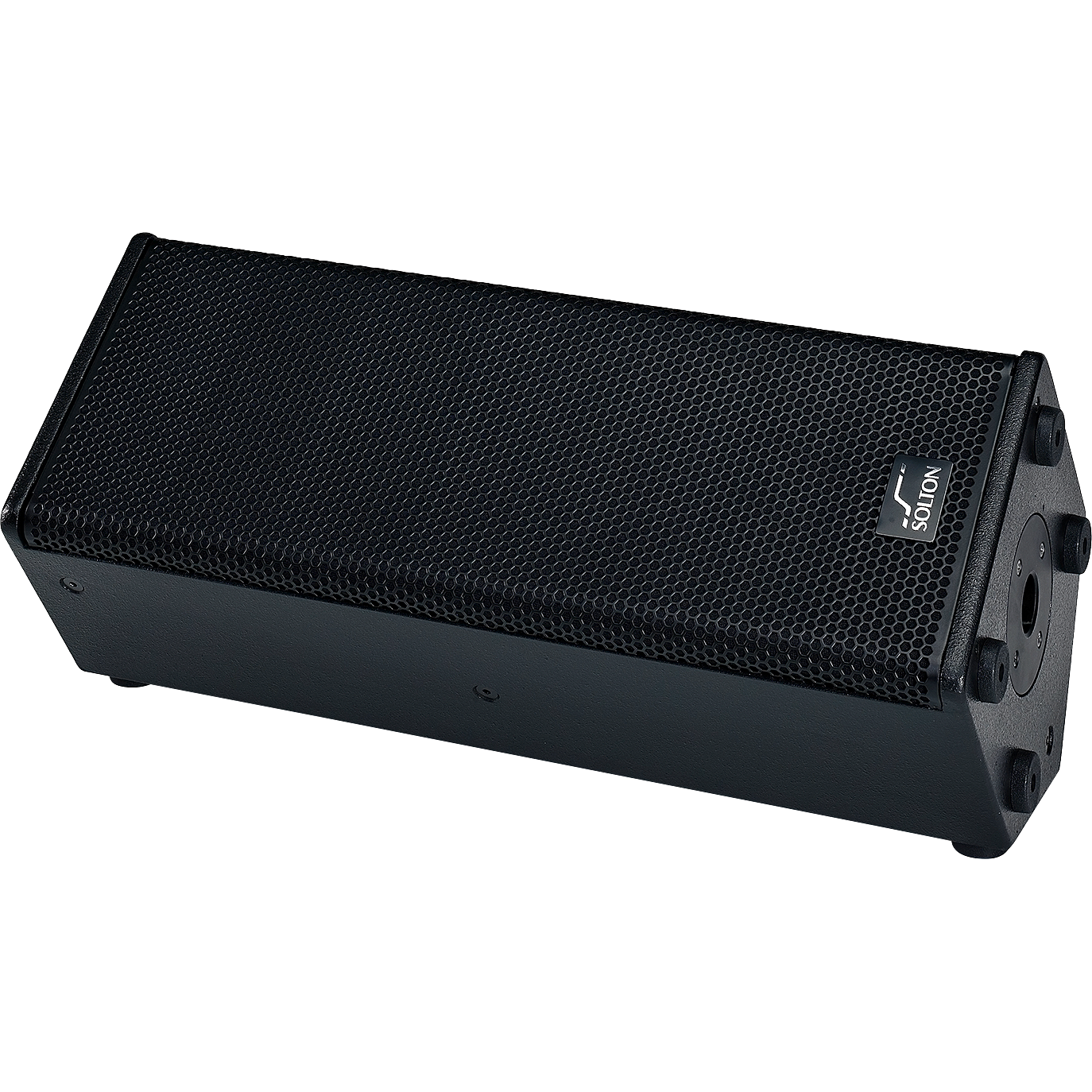

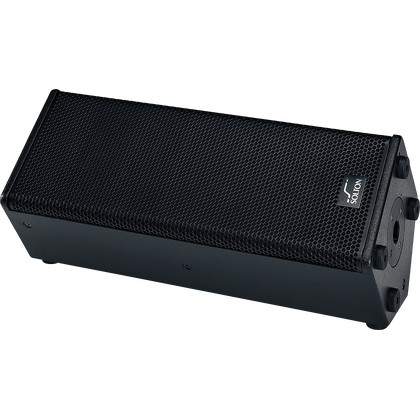

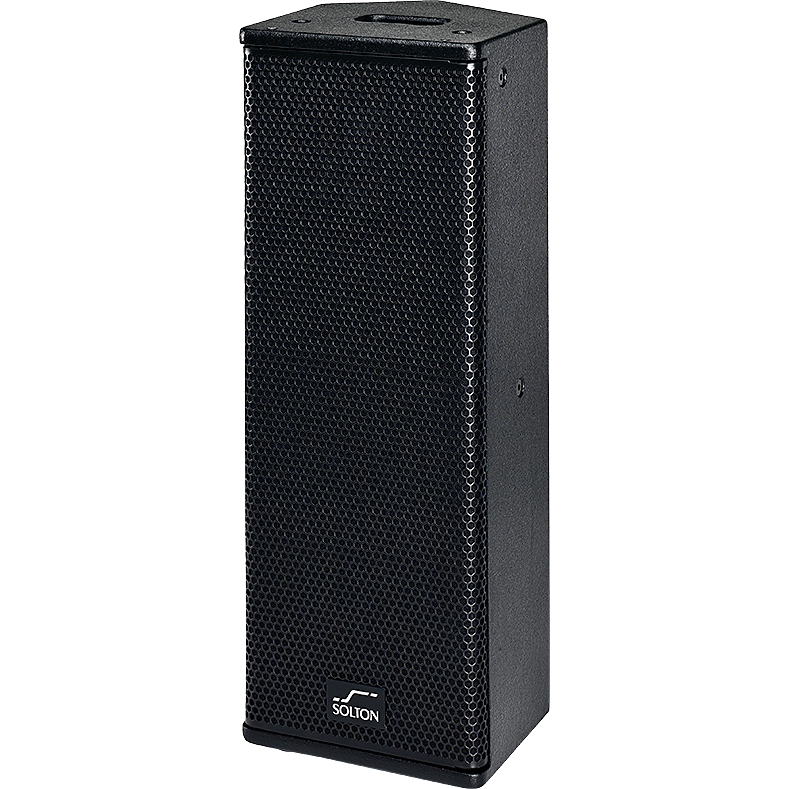

Solton AART T 28 A

The aart T 28 A is a self powered, bi-amped 2-Way high-performance multipurpose loudspeaker systeme, designed for professional portable and installed applications. With a 90°H x 60°V coverage pattern it combines high output capability with excellent sound performance in a multianglel compact enclosure, made of 15 mm plywood.

It features a classic combination of two powerful 8”speaker for MF/LF frequency range, and one 1,75“ voice coil, 1” (25mm) exit HF compression driver for extended high frequency response.

The integrated high performance Class D amplifier delivers outstanding dynamic and excellent headroom. The 4 DSP presets and clearly arranged Input - Output section enable high application flexibilit.

The versatile aart T 28 A suits for speech and music applications as a stand-alone fullrange loudspeaker, or MF/HF speaker in sound reinforcement systems.

KEY FEATURES

High-class performance in a compact design

Class D bi-amped power module

User-rotatable, constant directivity 90° x 60° horn

Vertical and horizontal orientation

4 DSP presets

Dual-band limiter

Two inputs with level control, XLR/6.3 Jack Combo , one with MIC/LINE switch and with high- resolution microphone pre-amplifiers (in MIC mode)

Line/Mix OUT switchable

Main and monitor operation possible

M8 inserts for flexible mounting options

Weight only 14.6 kg

DETAILS

Loudspeaker Type

Self-powered, two-way bi-amped, multifunctional

Frequency Range (-10dB)

60 Hz - 20 kHz

Frequency Response (+- 3dB)

75 Hz - 18 kHz

Coverage Pattern

H 90° x V 60° nominal (user-rotatable)

Power Handling

400 W continuous, 1600 W peak

System Sensitivity (1w/1m)

99 dB

Maximum SPL (Calculated at 1m)

125 dB continuous, 131 dB peak

HF Driver

1,75"voice coil, 1" exit compression driver

LF Driver

2x 8", 2" voice coil speaker aaCRAAFT

Crossover

Active / DSP

Protection

Dual-band limiter

Active Tuning / Features

4 DSP presets, 2x Line/Mic IN level & switch, Line/Mix OUT switchable

Enclosure

Multi-angle, 15 mm birch plywood

Finish

Black textured paint

Fittings

7x M8 inserts,1x bar handle, pole socket, U-bracket optional

Protective Grille

Black perforated steel with acoustic transparent foam backing

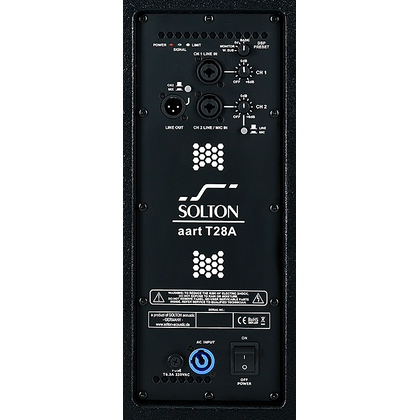

Connectors

2x XLR / 6.35 Jack Combo, 1x XLR

Dimensions mm (WxHxD)

250 x 700 x 250

Weight

14.6 kg

APPLICATION

Portable sound reinforcement

Installation

Live Music

Bars and restaurants

Nightclubs

Corporate AV events and conferences1x aart 12 sub Cover
