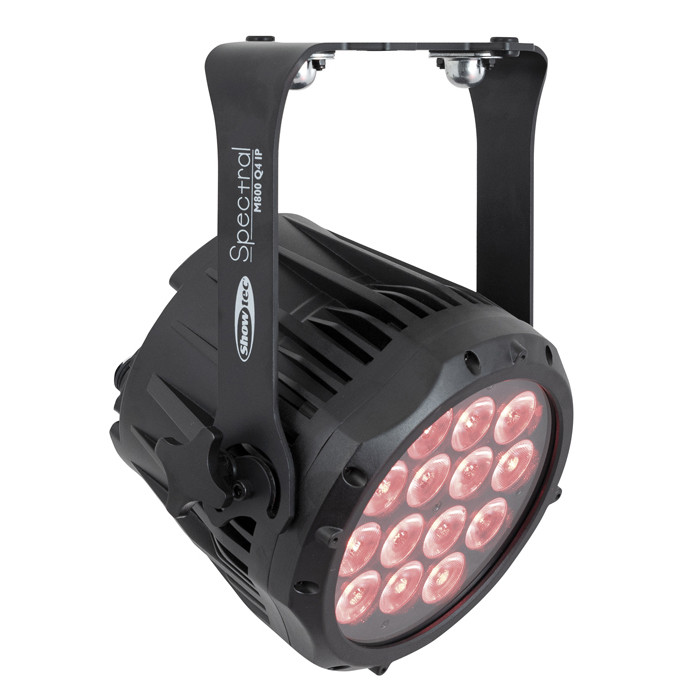

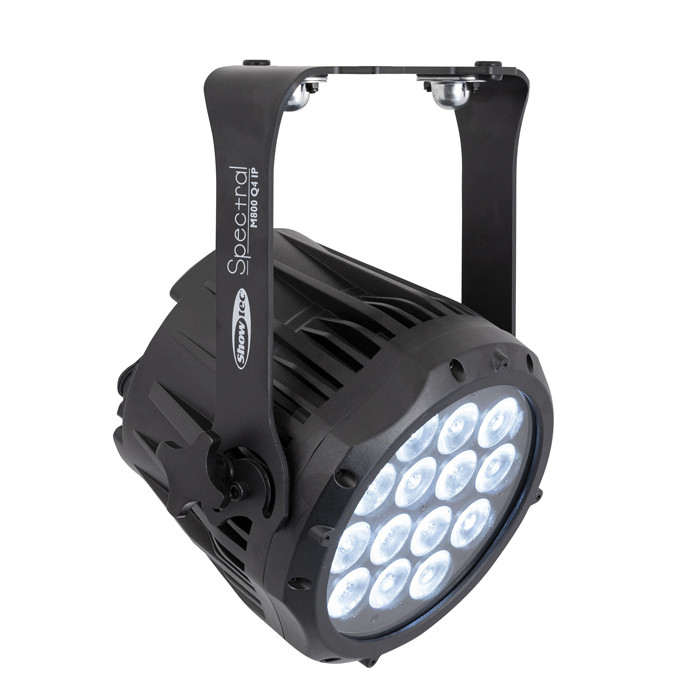

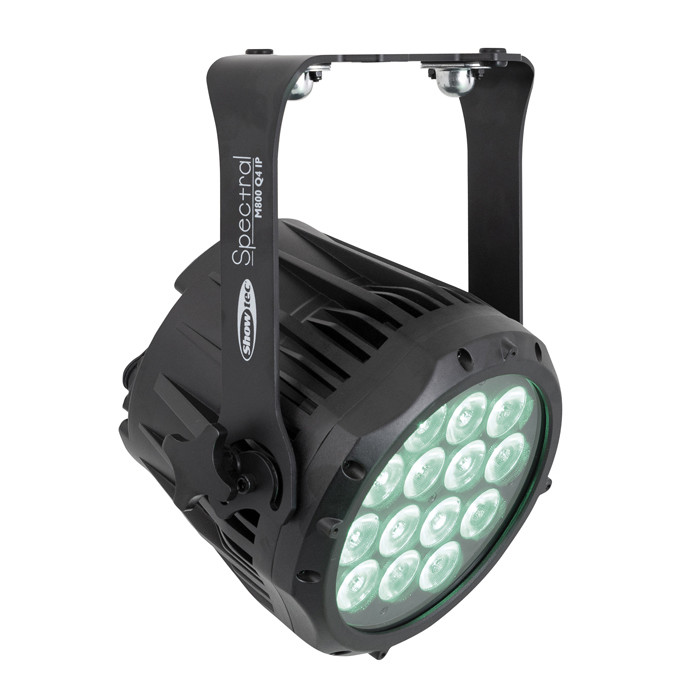

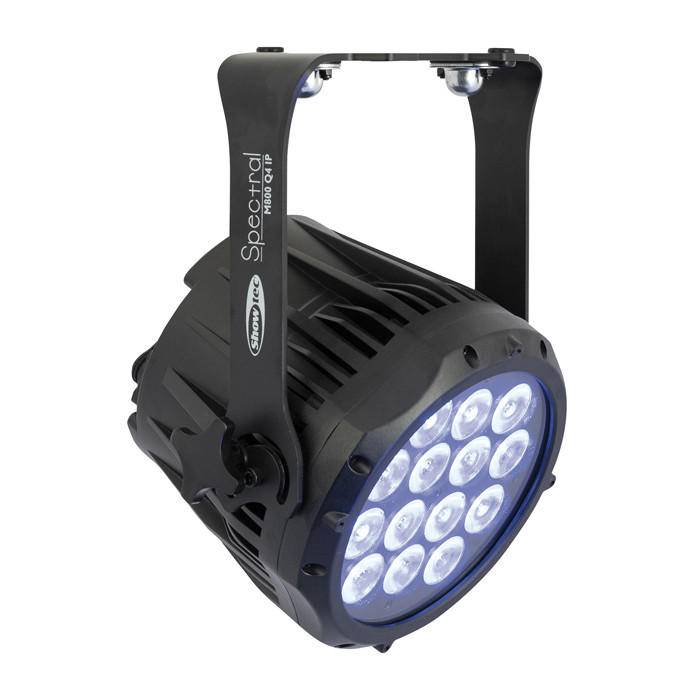

Spectral M800 Q4 IP

Solid and reliable 14x 5 W RGBW LED Spot

16° fixed beam angle

IP65 (dust and water resistant, fit for outdoor use)

Dimmer and strobe function

DMX and Master/Slave control

Source

Light Source Type LED

Light Source Quantity 14

Light Source Power 5

LED Colour Type RGBW

Refresh Rate (min) 600

Refresh Rate (max) 25

Lumen Total 1452

Optical

Beam Angle Circular 16

Control and Programming

Control Mode Auto, Built-in Program, DMX, Manual, Master Slave

DMX Channels 4, 5, 6, 7, 9, 10, 13, 15

Protocols DMX, RDM

Display 7-segment

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

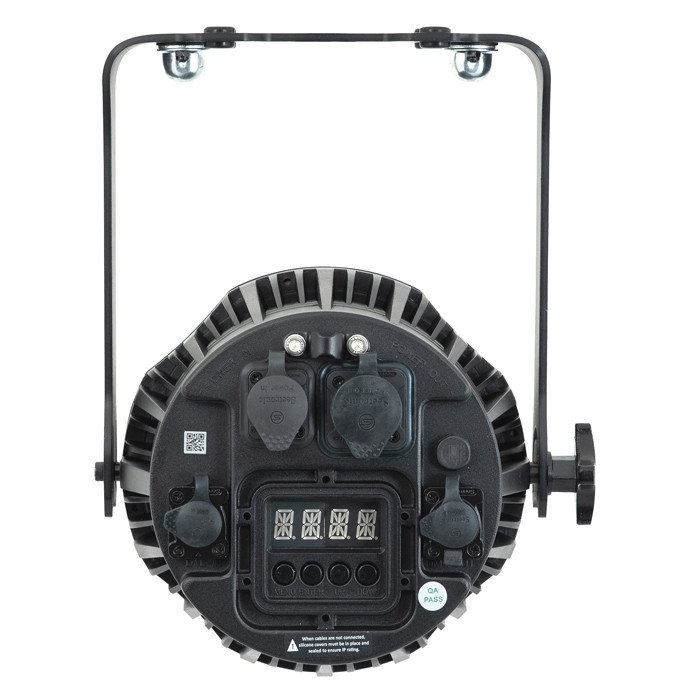

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 65

Power Connector in powerCON TRUE1

Power Connector out powerCON TRUE1

DMX Connector Dedicated 3P IP65 In/Out

DMX Connector in Dedicated 3P IP65

DMX Connector out Dedicated 3P IP65

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 180

Width (mm) 235

Height (mm) 320

Weight 5.2

IP Rating IP65

Housing Aluminum die-cast

Colour Black

Product Properties

Cooling Convection

Thread M12

Rigging

Mounting Options Clamp, Surface

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40

Minimum Operating Temperature -10

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables powerCON TRUE1 cable

Included Accessories User Manual

Included Rigging Bracket, Safety Cable
