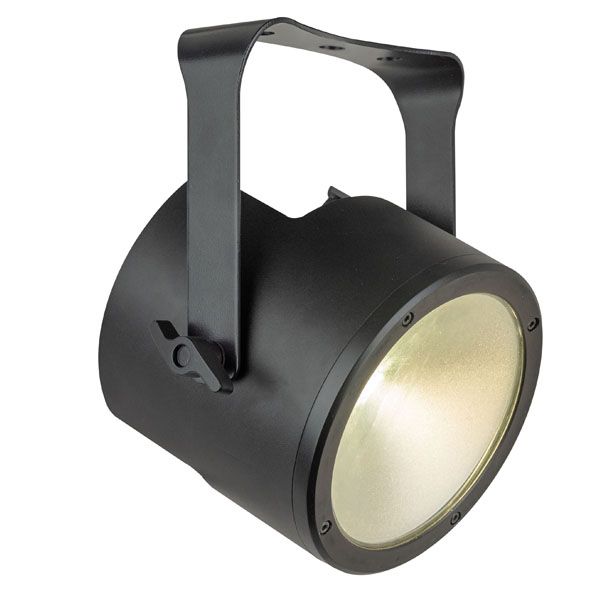

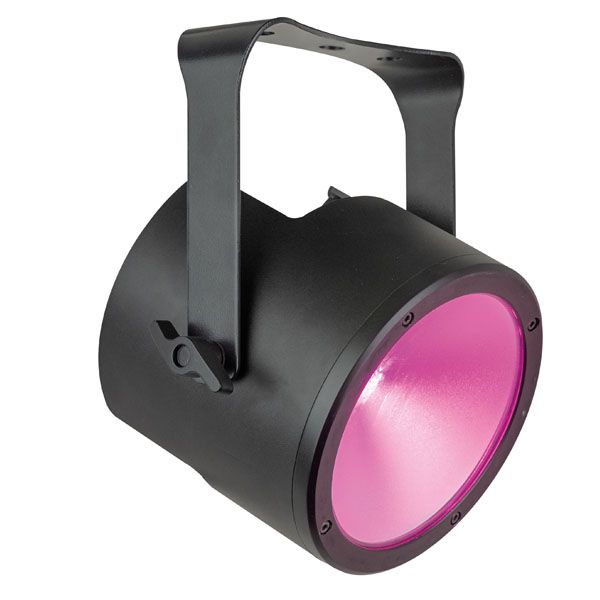

Luna Par 120 Q4

Bright 120 W RGBW COB LED Spot

Stylish design with flat backside for uplighting position

90° beam angle and included 25° diffuser

Dimmer and strobe function

Manual, DMX and Master/Slave controllable

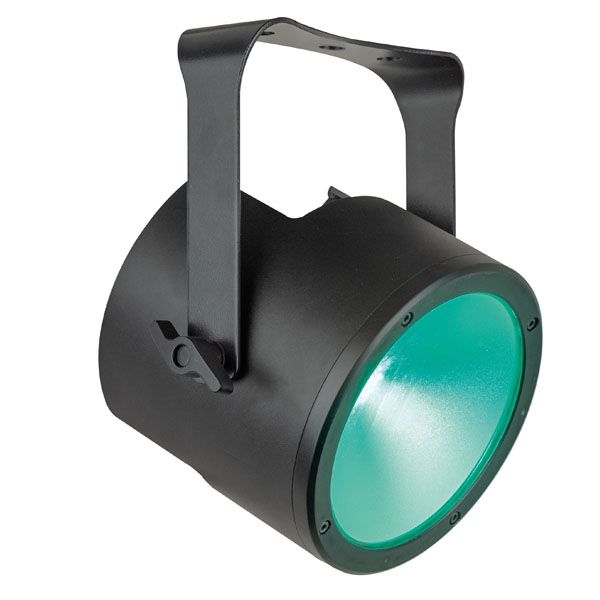

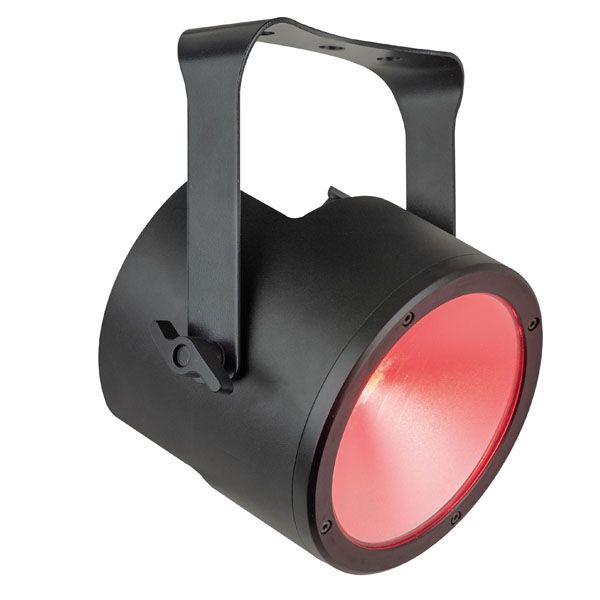

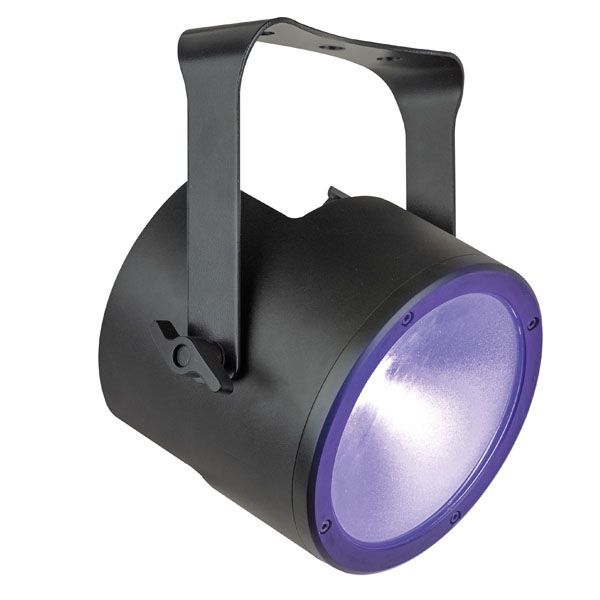

The Showtec Luna Par 120 Q4 is a bright and stylish 120 watt RGBW COB LED Spot with a wide 90° beam angle, suitable as washlight and spotlight for indoor applications. A diffusor is included for narrowing its beam angle to a 25° spotlight. The Luna Par 120 Q4 can be controlled manually, via DMX and Master/Slave in Manual, Auto run and Sound-controlled mode with many built-in programs. Equipped with a Red, Green, Blue and White colour engine, 0–100 % dimmer and 0–20 Hz strobe function, you can create vivid colourful effects, from subtle pastels to punchy saturates, perfectly suitable for colour mixing on stage or for lighting objects.

Source

Light Source Type LED

Light Source Quantity 1

Light Source Power 120 W

LED Colour Type RGBW

Refresh Rate 1000 Hz

Lumen Total 4950 lm

Optical

Beam Angle Circular 90°

Control and Programming

Control Mode Auto, DMX, Manual, Master Slave, Sound

DMX Channels 4, 6, 11

Protocols DMX

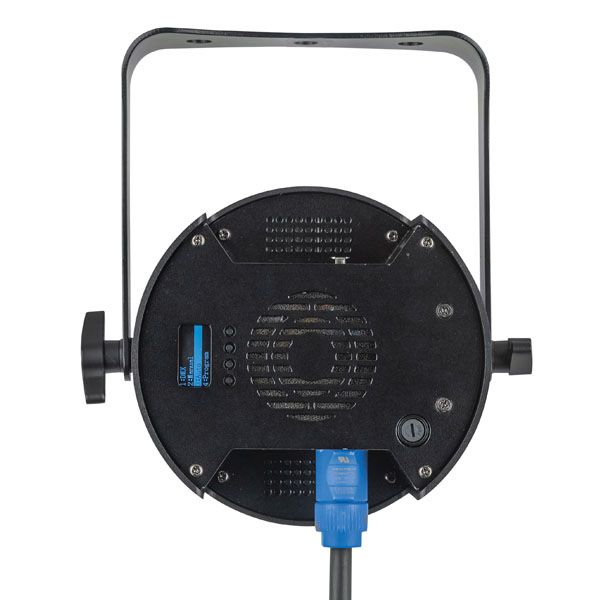

Display OLED

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 125 W

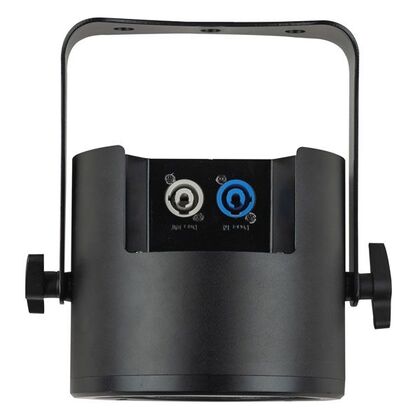

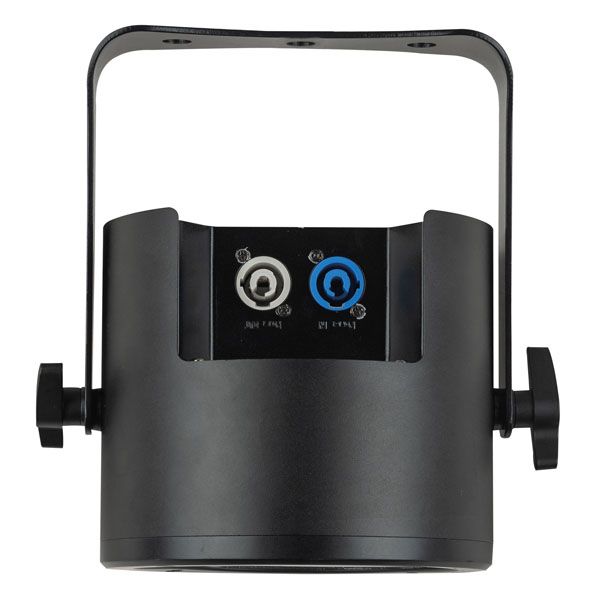

Power Connector in Power Pro Blue

Power Connector out Power Pro Grey

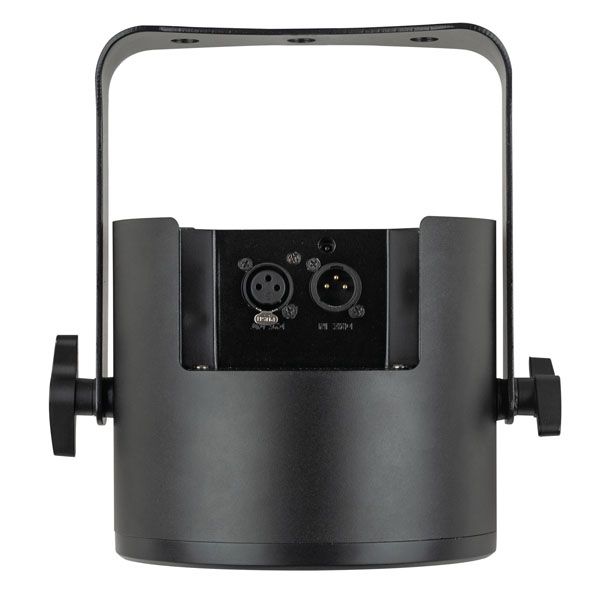

DMX Connector XLR 3P In/Out

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 256 mm

Width (mm) 250 mm

Height (mm) 190 mm

Weight 2.74 kg

IP Rating IP20 (indoor use only)

Housing Aluminum

Colour Black

Product Properties

Cooling Axial fan

Rigging

Mounting Options Clamp

Thermal Specifications

Maximum Ambient Temperature 40 °C

Included Items

Included Cables Power Pro Cable

Included Opticals Diffusers

Included Accessories User Manual

Included Rigging Bracket
