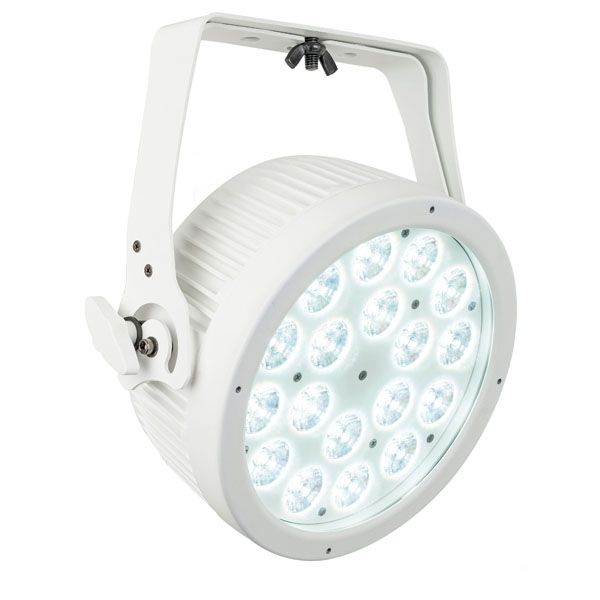

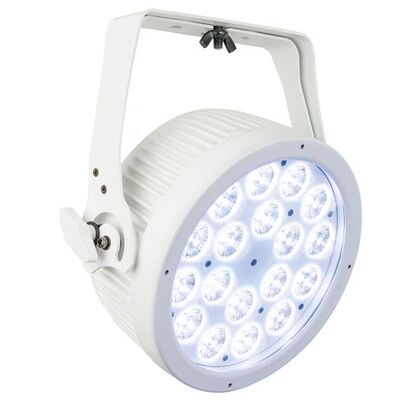

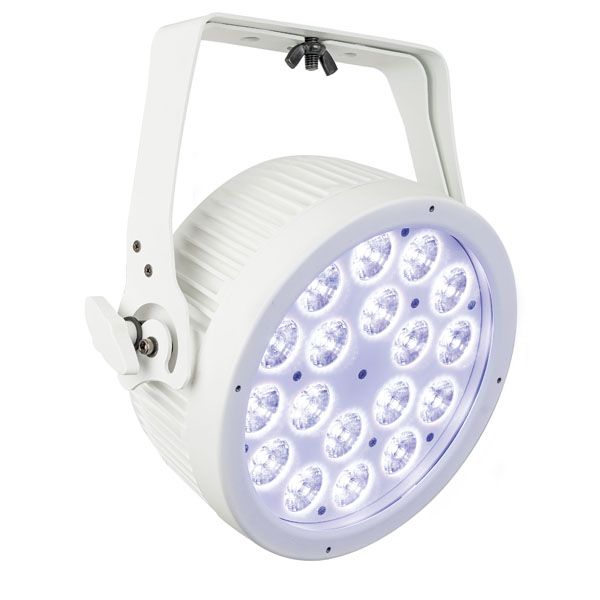

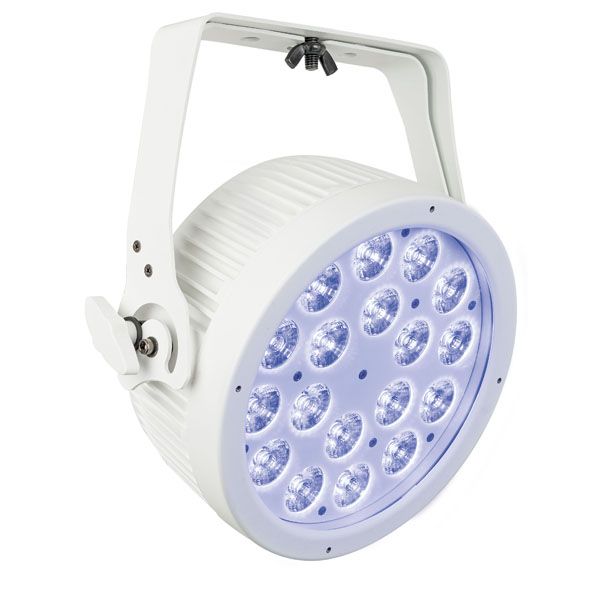

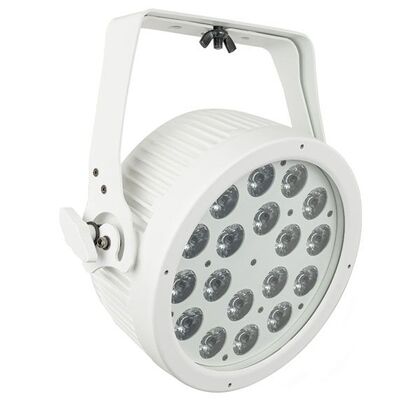

Compact Par 18 Q4 - White body

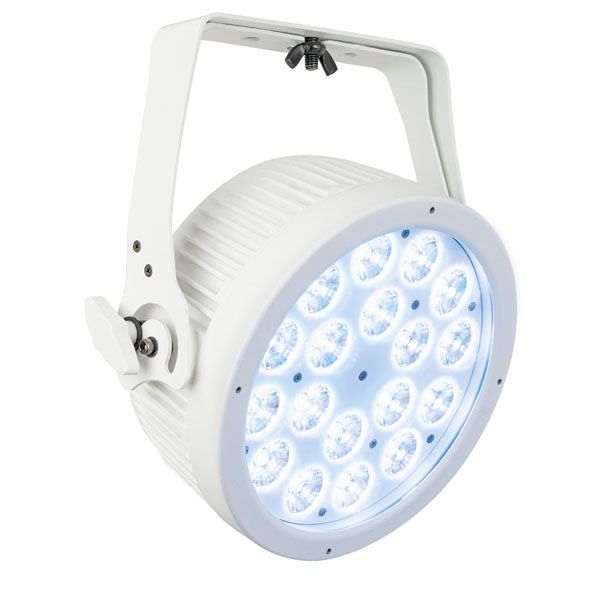

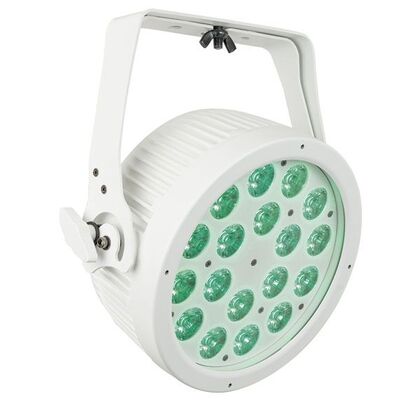

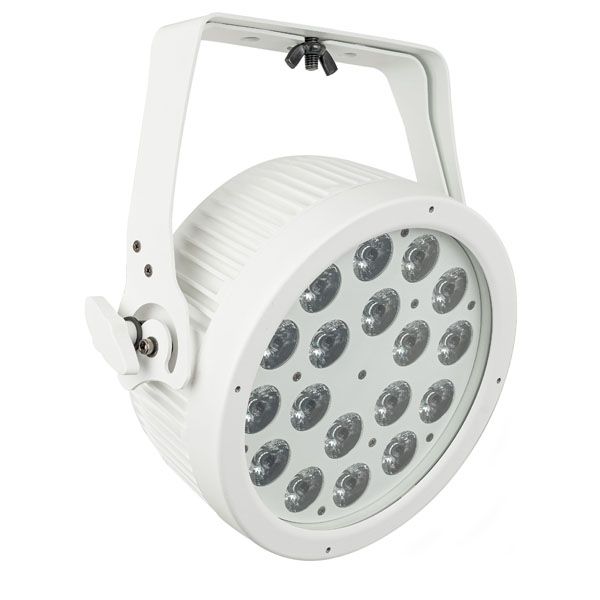

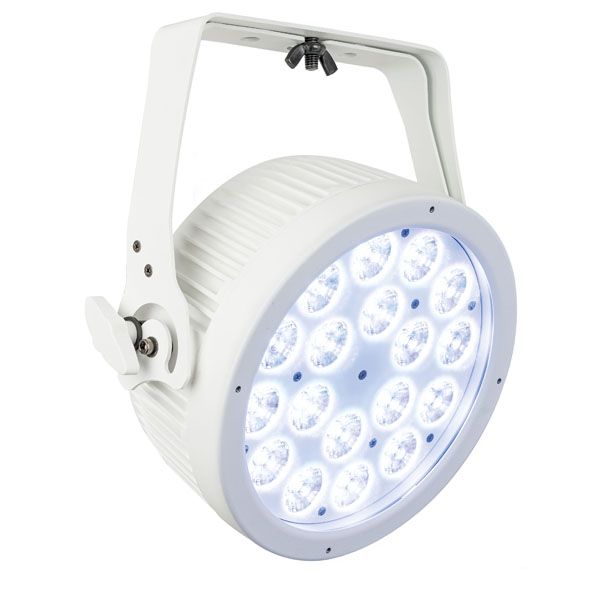

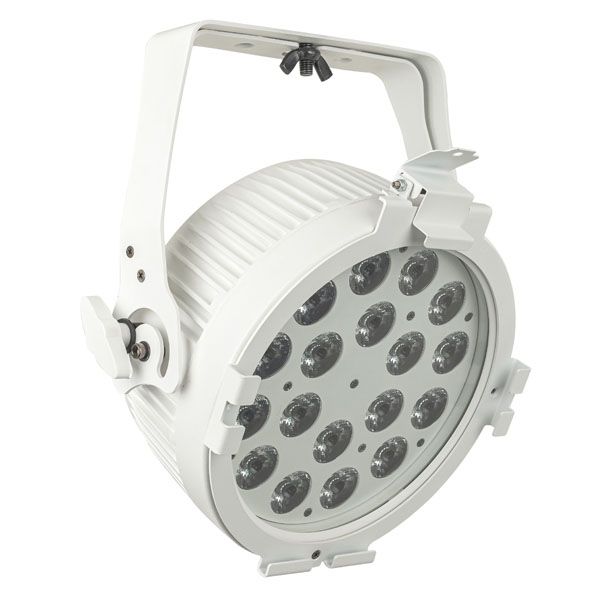

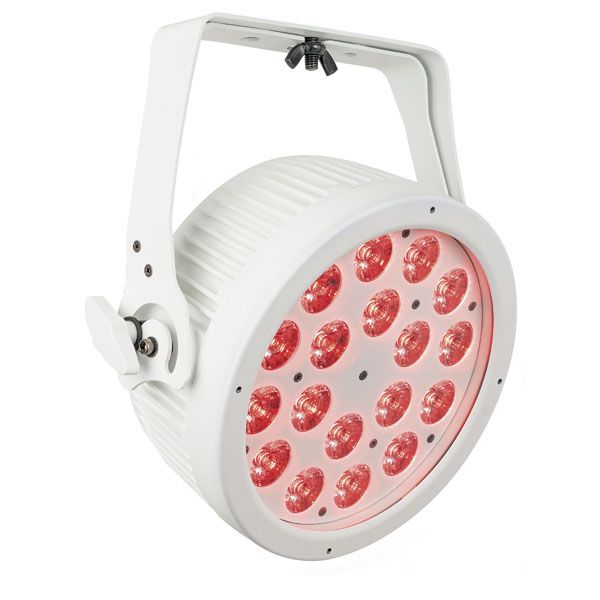

The Showtec Compact Par 18 Q4 is a powerful Parcan equipped with 18 x 7 W RGBW LEDs. Due to its optimized lenses, it produces a bright beam of nice whites and vivid colours for excellent colour mixing capabilities. Its fixed 15° beam angle, dimmer, strobe and common connectors enable a perfect fit in any gig on tour. The Compact Par 18 Q4 is controllable either manually and via DMX through a 3 and 5 pole XLR. A dedicated filter frame holder, filter frame and power cable are included. Please note that there is only a suitable barndoor available in black.

Compact Design

Convection Cooling

Easy Linking of Power and DMX

RGBW LED Source

Source

Light Source Type LED

Light Source Quantity 18

Led Colour Type RGBW

Refresh Rate 12.000 Hz

Lux @ 2m 10000 lx

Lumen Total 4997 lm

Optical

Beam Angle Circular 15 °

Control and Programming

Control Mode Auto, DMX, Manual

DMX Channels 4, 6, 10

Protocols DMX

Display LCD

Dynamic Effects

Dimmer 0-100%

Strobe 0-20Hz

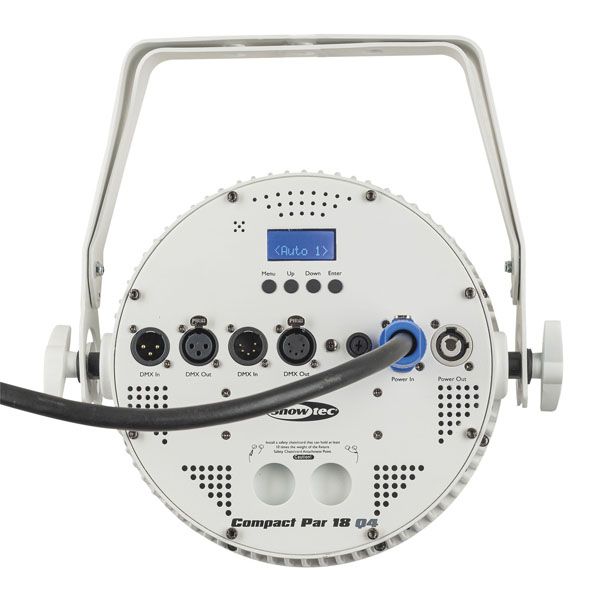

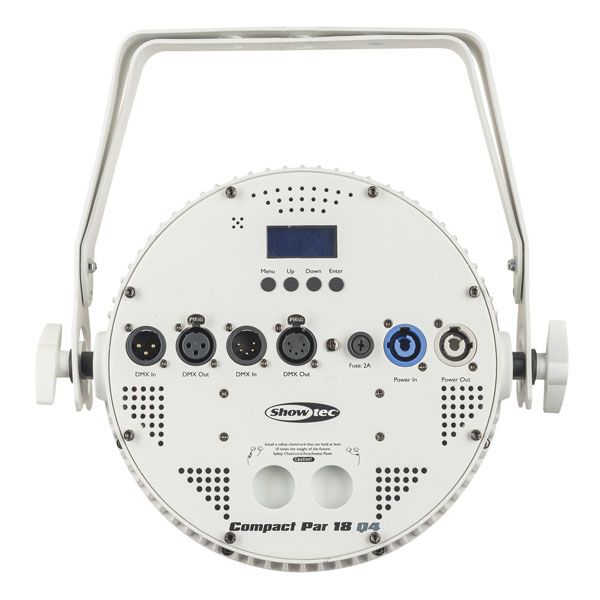

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60Hz

Power Consumption 132 W

Power Connector in ProPower Blue

Power Connector out ProPower Grey

DMX Connector XLR 3P In/Out, XLR 5P In/Out

DMX Connector in XLR 3P, XLR 5P

DMX Connector out XLR 3P, XLR 5P

Cable Length 1,5m

Mechanical Specifications

Length (mm) 300 mm

Width (mm) 131 mm

Height (mm) 313 mm

Weight 5,2 kg

IP Rating IP20(indoor use only)

Housing Aluminum Die-cast

Colour White

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp, Surface

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature -10 °C

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables ProPower Cable

Included Accessories User Manual

Included Rigging Bracket

Included Filter Frame
