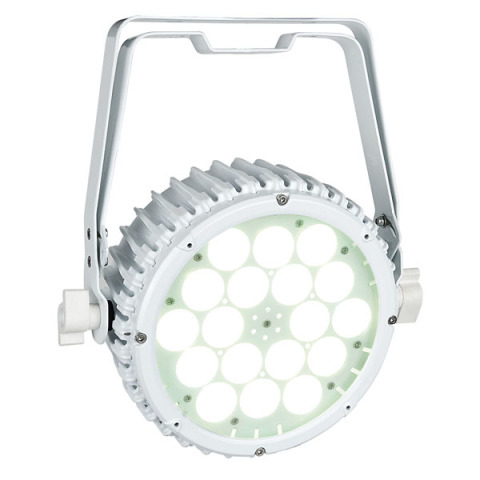

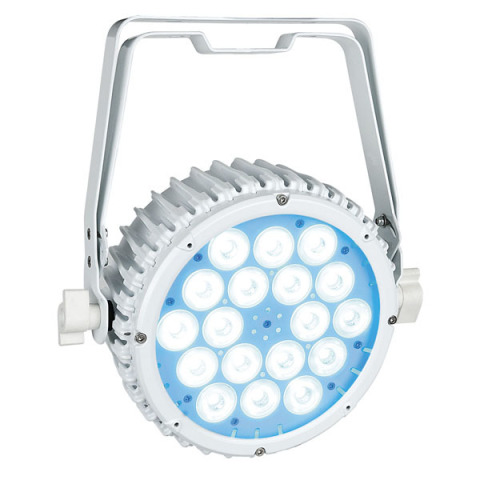

Compact Par 18 Tri MKII White

Compact 18x 3 W RGB LED Par

Suitable for studio applications

Silent operation

Flicker free

Easy link up to 15 units

The Showtec Compact Par 18 MKII is a compact 18x 3 watt RGB LED Par with silent and flicker free operations, suitable for studio applications. It has a 28° fixed beam angle and features 0–100 % dimmer and 0–20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact Par 18 MKII is equipped with double bracket for easy floor positioning and fit to easily link up to 15 units. Its design fits in every setting with either black and white housing.

Source

Light Source Type LED

Light Source Quantity 18

Light Source Power 3 W

LED Colour Type RGB

Refresh Rate 7800 Hz

Lux @ 2m 3112 lx

Lumen Total 2323 lm

Optical

Beam Angle Circular 28°

Control and Programming

Control Mode DMX

DMX Channels 1, 3, 4, 6

Protocols DMX

Display 7-segment

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 60 W

Power Connector in IEC

Power Connector out IEC

DMX Connector XLR 3P In/Out

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 250 mm

Width (mm) 290 mm

Height (mm) 96 mm

Weight 3 kg

IP Rating IP20 (indoor use only)

Housing Aluminum

Colour White

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp, Surface

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature -10 °C

Included Items

Included Cables IEC cable

Included Accessories User Manual

Included Rigging Bracket
