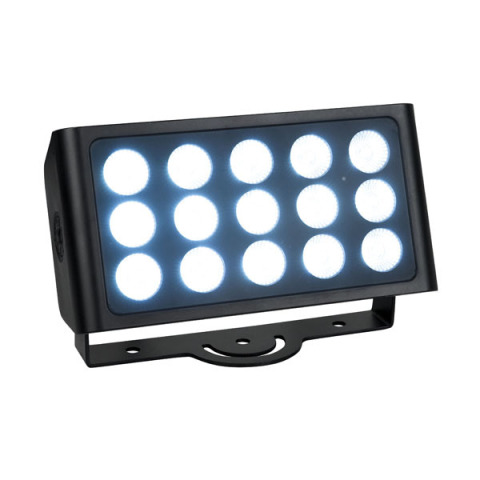

Cameleon Flood 15Q4

15x 5 W RGBW LED Flood

Suitable for colour mixing on stage

IP65 (dust and water resistant, fit for outdoor use)

40° fixed beam angle

Dimmer and strobe function

The Showtec Cameleon Flood 15 Q4 is a 15 x 5-watt RGBW LED Flood with IP65 rating, suitable for indoor and outdoor applications. It has a 40° fixed beam angle and features 0–100 % dimmer and 0–15 Hz strobe effects, perfectly suitable for colour mixing on stage. The Cameleon Flood 15 Q4 can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual and Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket. An infrared remote is optional.

Source

Light Source Type LED

Light Source Quantity 15

Light Source Power 5

LED Colour Type RGBW

Refresh Rate 4000

Lumen Total 3434

Optical

Beam Angle Horizontal 40

Beam Angle Vertical 40

Control and Programming

Control Mode Auto, DMX, Manual, Master Slave

DMX Channels 4, 6, 10

Protocols DMX

Display OLED, Touch

Dim Curve Linear, Square, I-Square, S-Curve

Dynamic Effects

Dimmer 0-100 %

Strobe 0-15 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 115

Power Connector in Dedicated IP65 Powerconnection

Power Connector out Dedicated IP65 Powerconnection

DMX Connector Dedicated 3P IP65 In/Out

DMX Connector in Dedicated 3P IP65

DMX Connector out Dedicated 3P IP65

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 330

Width (mm) 100

Height (mm) 210

Weight 5.2

IP Rating IP65

Housing Aluminum die-cast

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40

Maximum Surface Temperature 80

Minimum Operating Temperature -10

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables Dedicated IP65 Powerconnection

Included Accessories User Manual

Included Rigging Bracket
