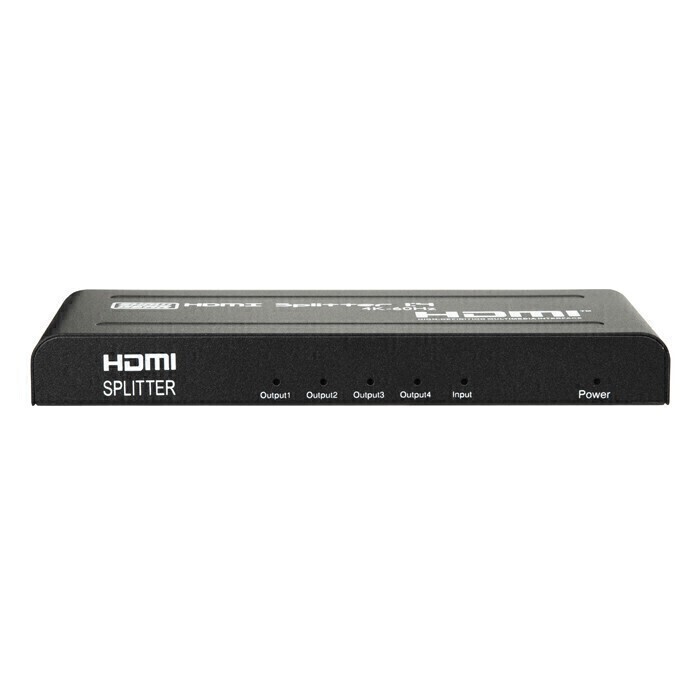

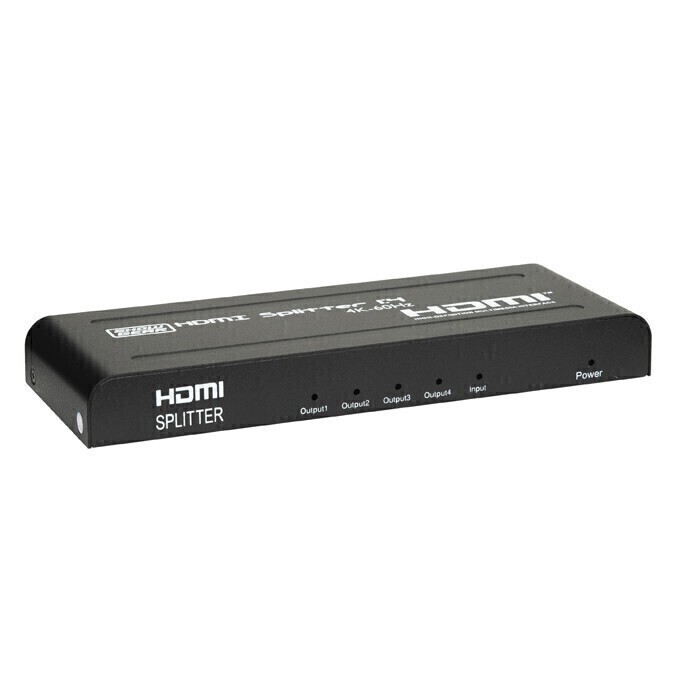

HDMI 2.0 Spitter 1 in - 4 out

HDMI 2.1 splitter

Suitable up to 4K - 60 Hz

Backwards compatible (HDMI 1.4)

Strong aluminium housing

Black

The Showgear HDMI 2.0 Splitter allows you to split one signal to up to four signals, suitable for displaying one image on multiple devices, like TVs and monitors. It supports resolutions up to 4K @ 60 Hz and is downward compatible, meaning it's designed to work with the older HDMI 1.4 version. This HDMI 2.0 Splitter has a strong aluminium housing, is made of the finest materials and built to last and outperform.

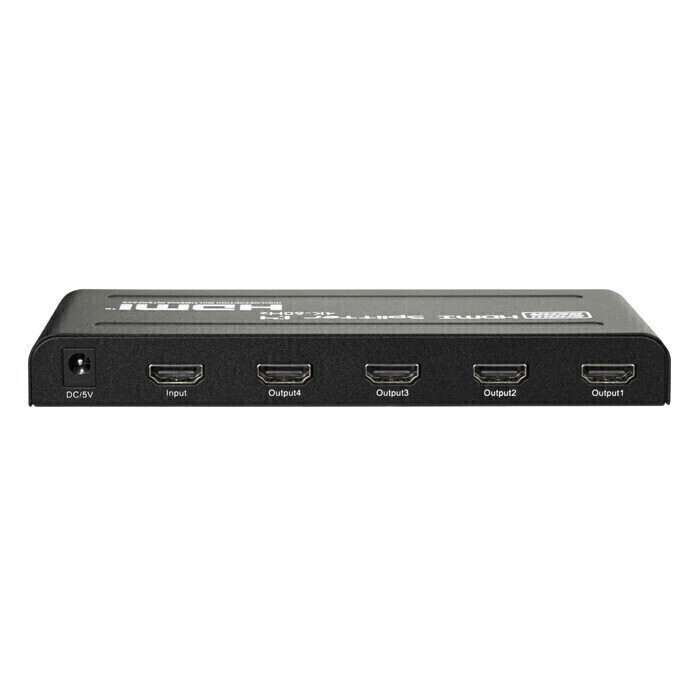

Inputs

HDMI 2.0 1

Outputs

HDMI 2.0 (out) 4

Electrical Specifications and Connections

Power Supply 5 VDC

Power Consumption 5 W

Power Connector in Low Voltage DC plug

Mechanical Specifications

Length (mm) 178 mm

Width (mm) 68 mm

Height (mm) 21 mm

Weight 0,23 kg

IP Rating IP20(indoor use only)

Housing Metal

Colour Black

Thermal Specifications

Maximum Ambient Temperature 45 °C

Minimum Ambient Temperature -15 °C

Certifications/Qualifications

Reference Standard CE

Included Items

Included Accessories Adapter
