Novastar MX30 LED display controller

Inputs: 1x HDMI 2.0 / 1.4 / DP1.1 / 2x3G SDI

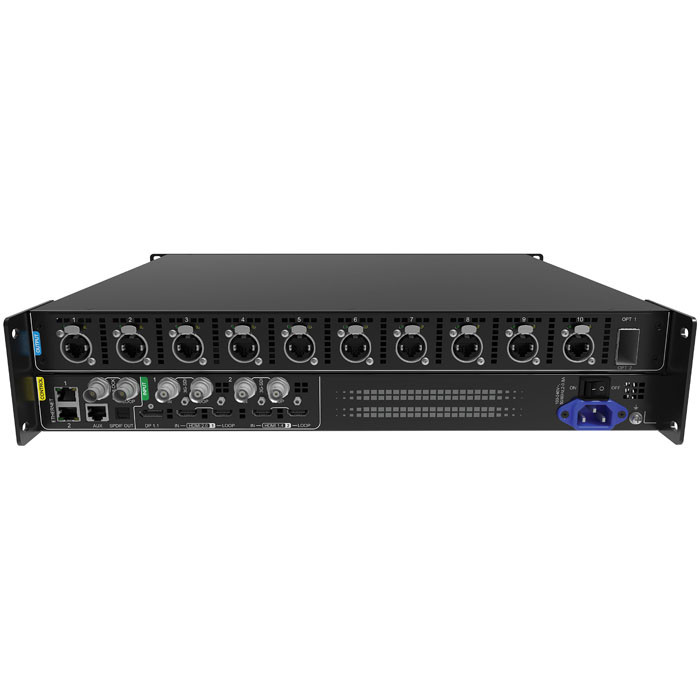

Outputs: HDMI 2.0 loop / 1.4 loop / 2x 3G-SDI loop, 10x Gigabit Ethernet, 2x 10G optical
Scaling function supported
Control up to 6,500,000 pixels
Control via device or software

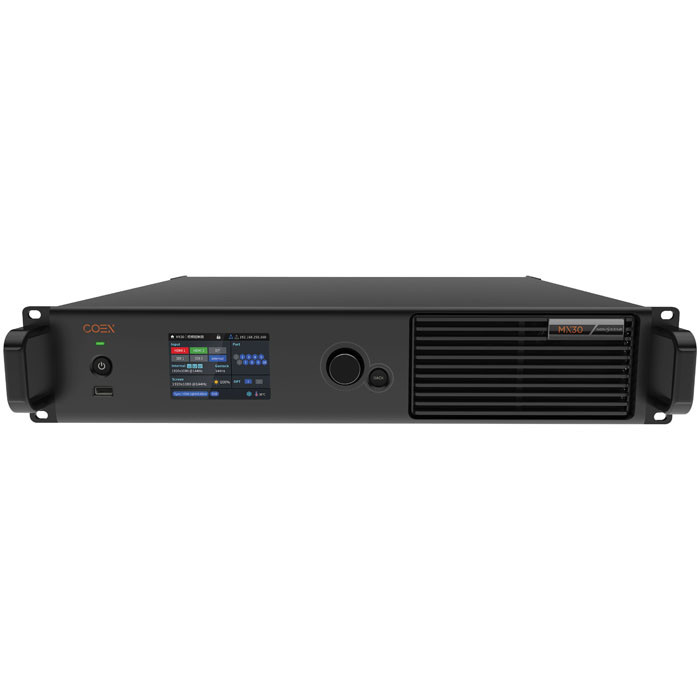

Novastar’s MX30 is an all-in-one LED display controller that integrates video processing and LED system control. With multiple inputs and outputs on board, the MX30 offers several setup possibilities. It’s equipped with one HDMI 2.0 + loop, one HDMI 1.4 + loop, one DP 1.1 and two 3G-SDI inputs + loop. Its outputs include ten Gigabit Ethernet ports, two 10G optical ports and one S/PDIF optical port. There are also two network ports and one auxiliary port on board as well as a Genlock input and loop. A control knob and a back button, together with a 3.5-inch TFT screen, make it easy to control the device. The MX30 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include three independent layers, image scaling, 14Ch colour correction, low latency support and display system monitoring. The MX30 can be mounted in a 19-inch rack.

Inputs
DP 1.1          1
HDMI 1.4a       1
HDMI 2.0        1
3G-SDI          2

Outputs
Main Outputs      10
HDMI 1.4a (Loop)  1
HDMI 2.0 (Loop)   1
3G-SDI (Loop)     2
S/PDIF (Out)      1
Ethernet Speed (LED Screen)   1 Gbit/s

Optical
SFP Slot Type      10G
SFP Slot Quantity  2

Software Specifications
Control Software   VMP

Extra Features
Scaling Function   Yes
Layers             3
GenLock            In & Out
DMX Control        Art-Net

Control and Programming
Display            TFT
Display Size       3.5 "
Maximum Loading Capacity  6.5 Mpx
Maximum Input Resolution  4096 x 2160
Control Options    Ethernet

Electrical Specifications and Connections
Power Supply       100-240 V AC 50-60 Hz
Power Consumption  55 W
Power Connector In IEC
Data Connector In  RJ45
Data Connector Out etherCON, RJ45

Mechanical Specifications
Width (Including Handles)  483 mm
Width (Without Handles)    446 mm
Height (Including Handles)  881 mm
Depth (Including Handles)   467 mm
Depth (Without Handles)     394 mm
Weight                      7.2 kg
Rack Units                  2 U
IP Rating                   IP20 (indoor use only)
Colour                      Black

Thermal Specifications
Maximum Ambient Temperature  -20 °C
Minimum Ambient Temperature   50 °C
Operating Humidity            0-80 %RH

Included Items
Included Cables         CAT-5 Cable, DP-DP cable, HDMI-HDMI cable, IEC cable
