Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output
Supports 10-bit YCbCr 4:4:4 output
Four status LEDs

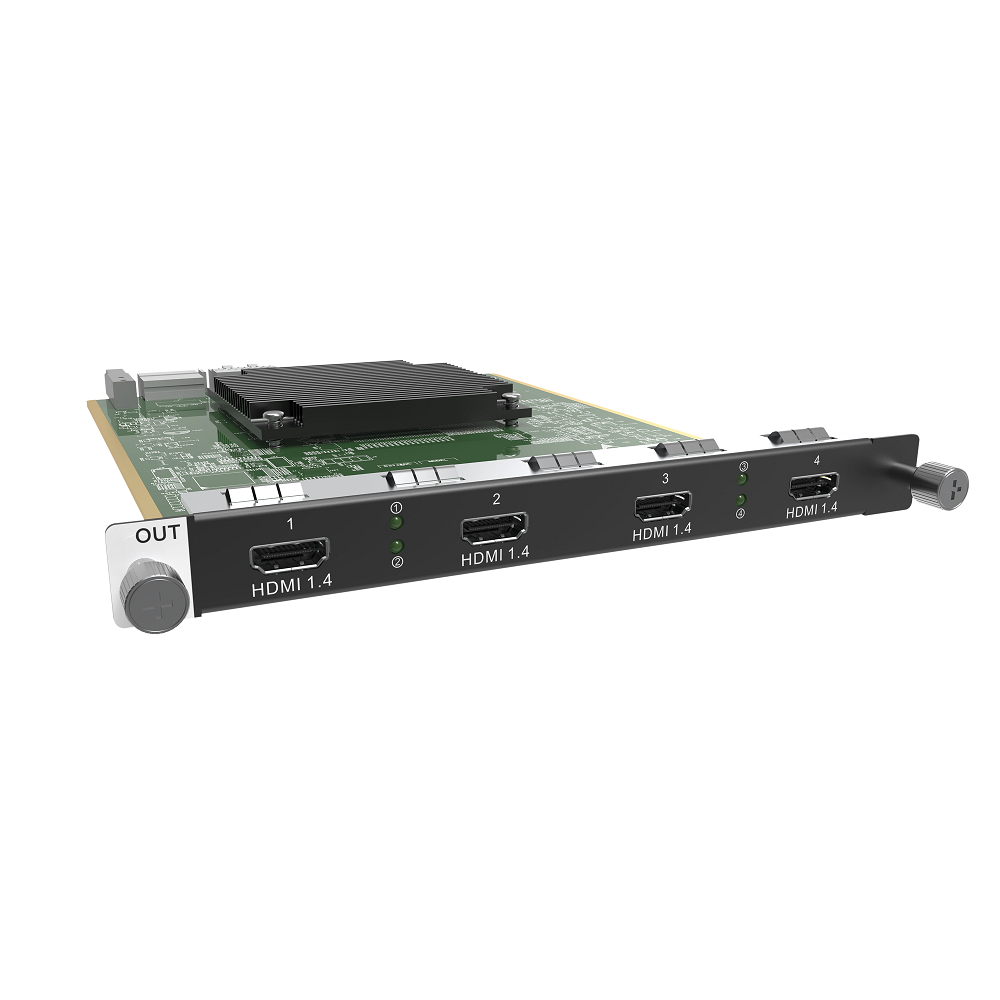

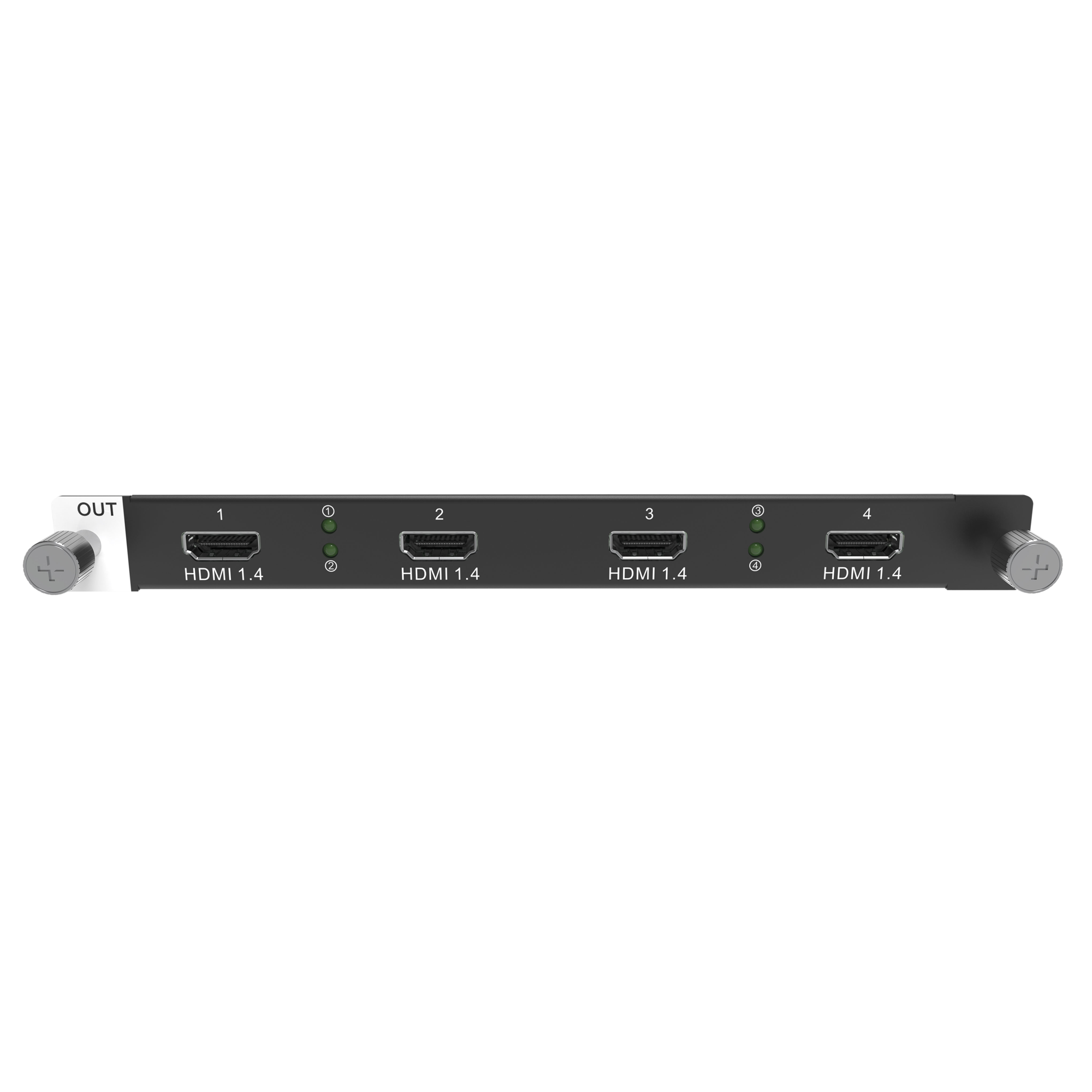

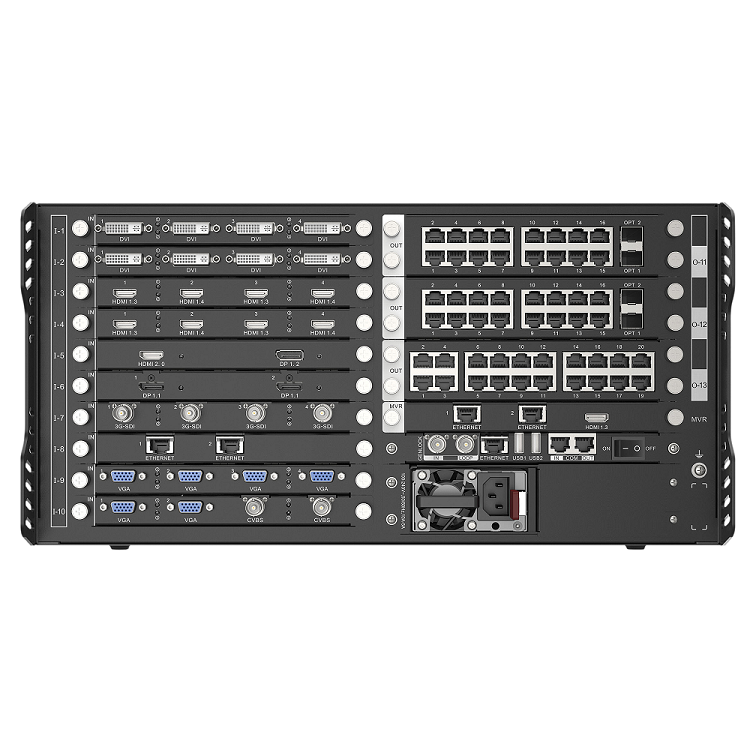

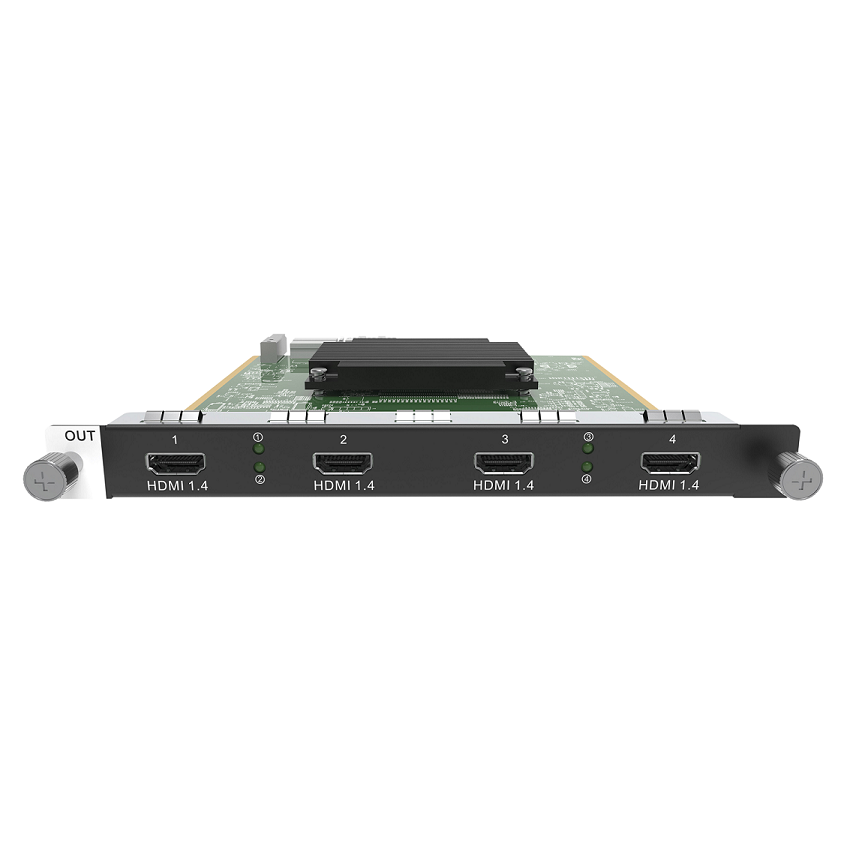

Novastar’s H Series 4x HDMI Output Card adds four HDMI 1.4 outputs to the H2/H5/H9/H15 Video Wall Splicers. When using all outputs individually, each one can support up to 2048 x 1152 at 60 Hz. If outputs 2 & 4 only are used, each one can handle up to 3840 x 1080 at 60 Hz and their output will be copied to connectors 1 & 3.
Outputs
HDMI 1.4b (Out) 4
Output Slots 1
Control and Programming
Maximum Output Resolution 2048 x 1152 , 3840 x 1080
Mechanical Specifications
Weight 0.8 kg
IP Rating IP20 (indoor use only)
Colour Black
Manufacturer:
DMT
