2x HDMI 2.0 (1 x duplicate) - 1 x 4K @60 Hz
Supports HDMI 2.0
4K / 60 Hz compatible
Status LED per HDMI connector

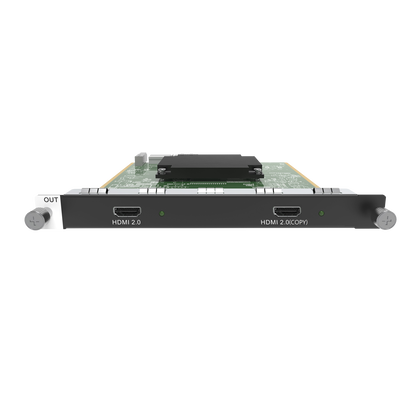

The H Series 1x HDMI 2.0 Output Card is an output card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has two HDMI 2.0 outputs – please note that output 2 offers a duplicated signal of output 1. The supported resolution is 4096 x 2160 @60 Hz, with maximum custom resolutions up to 8192 x 1146 @60 Hz or 1092 x 7680 @60 Hz. It supports 8-bit or 10-bit RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 outputs. Two status LEDs indicate whether the output connectors are connected normally.
Outputs
HDMI 2.0 (Out) 2
Output Slots 1
Control and Programming
Maximum Output Resolution 4096 x 2160 , 8192 x 1080
Mechanical Specifications
Weight 0.8 kg
IP Rating IP20 (indoor use only)
Colour Black
