Novastar TU20 PRO LED playback control processor

LED processor with scaling function
Controls up to 3,900,000 pixels
Wireless screen mirroring
Internal media player
Remote control included

The Novastar TU20 PRO is an extensive playback control processor for LED screens. It is an all-in-one device that offers an integrated, stand-alone solution for driving LED screens, intended for applications in board rooms like document presentations, video playback and online meetings, without the need for additional hardware.

The TU20 PRO uses an Android 11-based OS that supports third-party apps. It enables screen mirroring from Windows, MacOS, iOS and Android for standard FHD (1080p) video up to 60 fps. It can playback media from USB. HEVC, H.265, H.264 and 4K are supported.

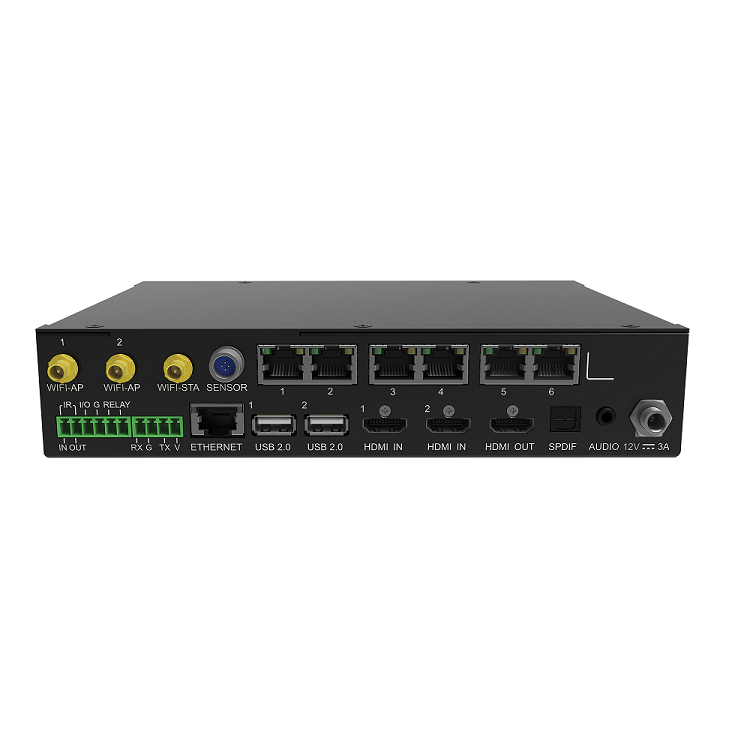

It has two HDMI 1.3 inputs, three USB 2.0 inputs for mouse, keyboard USB drive and other common USB devices, an Ethernet connection for control through NovaLCT software, and inputs for a light sensor and a remote control. It offers six RJ45 (1 Gb) pixel control outputs for up to 3,900,000 pixels (max 4096 width, max 1920 height), an HDMI out with 1080p support, S/PDIF and analogue audio out. The RS232 and relay control ports allow users to seamlessly integrate the TU20 PRO into any setup. Three antennas ensure stable Wi-Fi and Bluetooth reception.

Inputs
HDMI 1.3                2
RS-232                  1
Light Sensor Port       1

Outputs
Main Outputs            1
Main Output Connector   TRS balanced 3.5 mm
HDMI 1.3 (Out)          1
S/PDIF (Out)            1
Ethernet Speed (LED Screen)  1 Gbit/s

Playback
Internal Media Player    Yes
Operating Memory         4 GB
Internal Storage Space   32 GB
Local Content Upload     Ethernet, USB

Software Specifications
Control Software         VNNOX

Wireless Specifications
Wi-Fi Mode               AP, STA

Extra Features
Scaling Function         Yes

Control and Programming
Maximum Loading Capacity  3.9 Mpx
Maximum Input Resolution  2048 x 1152
Control Options           Ethernet, IR, RS232, Wi-Fi

Electrical Specifications and Connections
Power Supply              12 V DC
Power Consumption         21 W
Power Connector In        Low Voltage DC plug
Data Connector In         HDMI, Phoenix, RJ45, USB A
Data Connector Out        HDMI, Phoenix, RJ45, USB A

Mechanical Specifications
Width (Including Handles)  255 mm
Width (Without Handles)    212 mm
Height (Including Handles) 51 mm
Height (Without Handles)   44 mm
Depth (Without Handles)    175 mm
Weight                     1.5 kg
Rack Units                 1 U
IP Rating                  IP20 (indoor use only)
Housing                    Metal
Colour                     Black

Product Properties
Cooling                    Active

Thermal Specifications
Maximum Ambient Temperature  60 °C
Minimum Ambient Temperature -20 °C
Operating Humidity           0-80 %rH

Included Items
Included Cables             CAT-5 Cable, HDMI-HDMI cable
Included Accessories        Adapter, Mounting brackets, Remote Control, WiFi antenna
