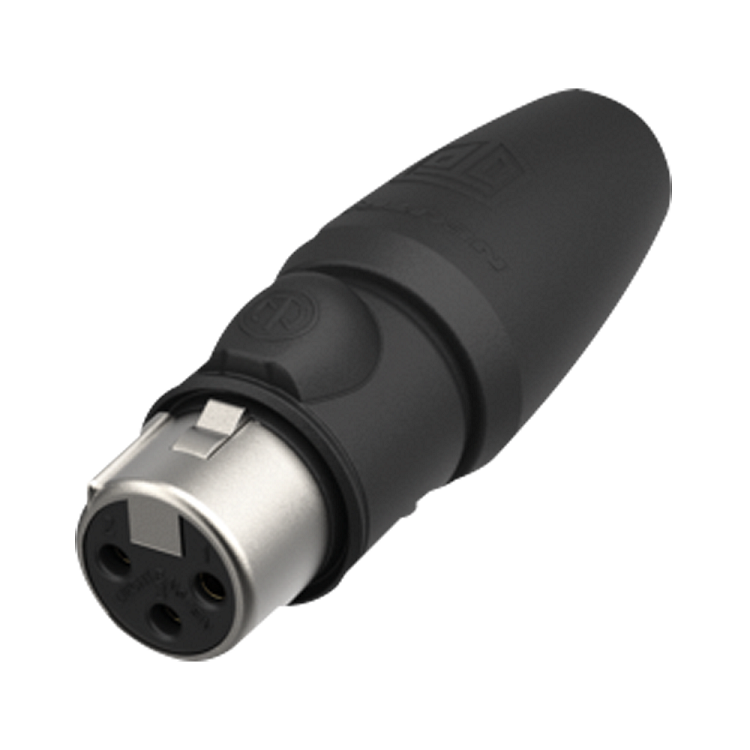

Gold contacts - stainless steel housing
Heavy duty sealed XLR connector for harsh and demanding environments
Outdoor protection according to IP65 and UL50E enclosure type 3
Maintains seal in mated and un-mated condition
Uses high impact UV-resistant materials
New line of True Outdoor Protection (TOP) connectors for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These rugged, sealed connectors offer not only IP protection but also UV resistance to UL50E.
Electrical Specifications and Connections
Pins 3
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 14 AWG
Mechanical Specifications
IP Rating IP65
Housing Metal
Colour Silver
Bushing Colour Black
Contact Resistance 3 < mΩ
Product Properties
Locking Device Latch
Contact Type Gold plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
