Gold contacts, Stainless steel Housing

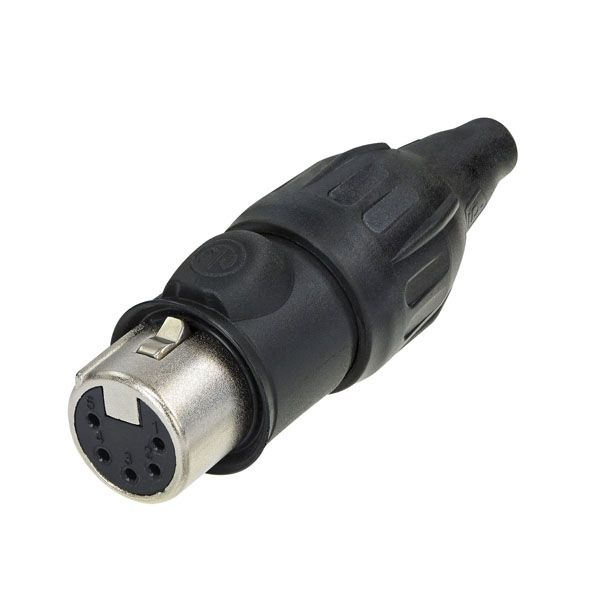

Heavy-duty sealed XLR connector for harsh hand demanding environment
Outdoor protection acc. IP65 and UL50E Enclosure type 3
Maintain sealing when in use and disconnected
Uses high impact UV resistant materials
New line of True Outdoor Protection (TOP) connectors for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These ruggedized sealed connectors feature not only IP protection but also UV resistance approved according to UL50E.
Electrical Specifications and Connections
Brand Connector 1 Neutrik
Pins 5
Maximum Wire Size AWG 18 AWG
Mechanical Specifications
IP Rating IP65
Housing Metal
Colour Silver
Bushing Colour Black
Contact Resistance 3 < mΩ
Product Properties
Locking Device Latch
Contact Type Gold plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
