Converts DMX512/RMD signals into SPI digital signals
OLED display
Control buttons

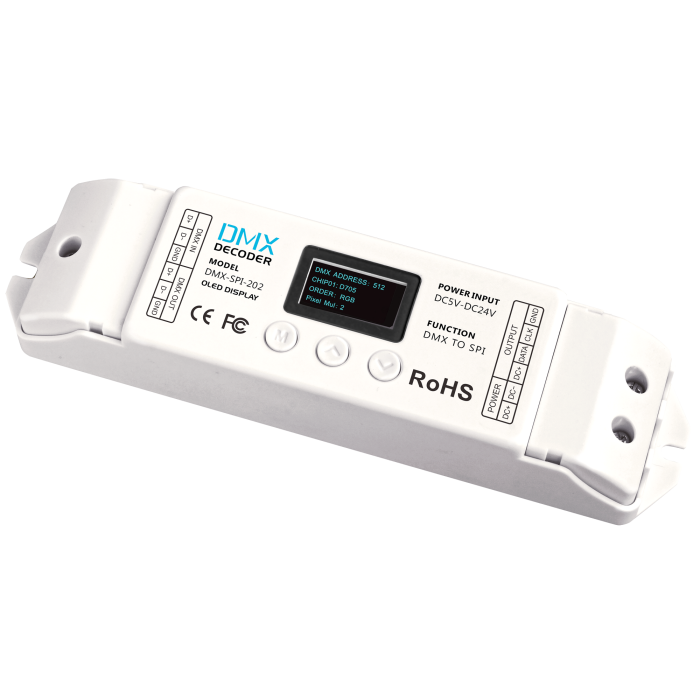

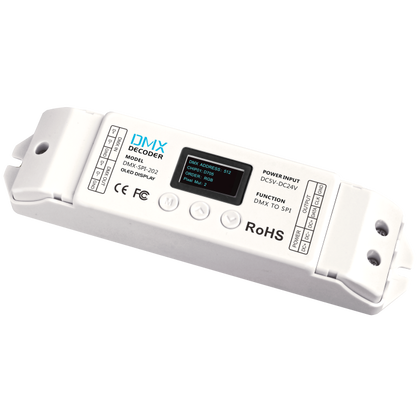

This SPI Driver converts DMX512/RDM signals into SPI digital signals and works with most pixel LED lights. In the DMX setting interface, its OLED display shows information including the DMX address, the IC type, the RGB sequence and the pixel multiple choices. In the self-testing interface, the display shows modes, speed and white light settings. The built-in control buttons can be used to easily adjust parameters
Control and Programming
Control Mode DMX, RDM
Display OLED
Electrical Specifications and Connections
Power Supply 5-24 V DC
Power Connector In Open End
Power Connector Out Open End
Mechanical Specifications
Length (mm) 175 mm (6.89″)
Height (mm) 30 mm (1.181″)
Width (mm) 44 mm (1.732″)
IP Rating IP20 (indoor use only)
Colour White
Thermal Specifications
Maximum Ambient Temperature 55 °C (131 °F)
Minimum Ambient Temperature -30 °C (-22 °F)
