Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
Tunable dynamic respons
ledcode supports most constant current LED modules and arrays
Compatible with enclosure system DRYverbox 100/S

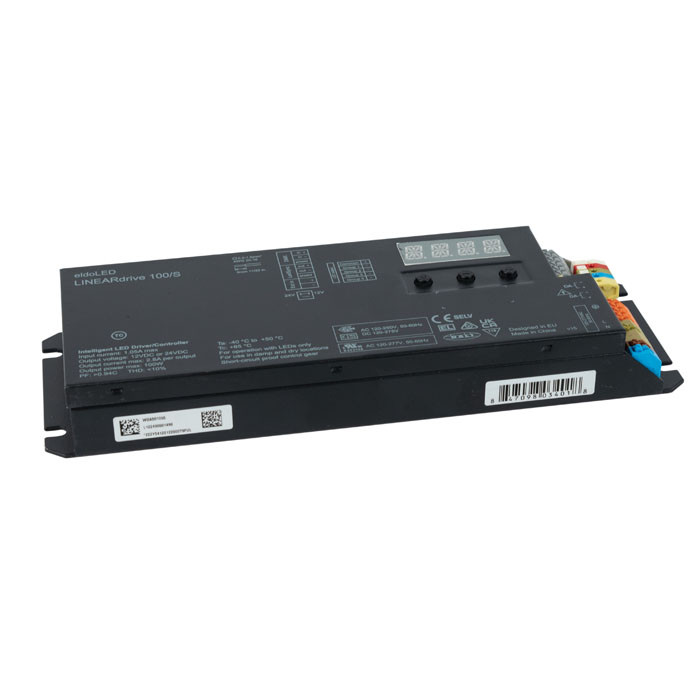

LINEARdrive 100/S delivers 8 A and is DALI and DMX compatible. LINEARdrive 100/S has four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.
You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX or DALI settings for networked mode and show, colour and dim values for standalone operation.
Control and Programming
Control Mode DALI , DMX
DMX Channels 4
Dali Ballast 4
Protocols DALI, DMX
Dimmable Yes
Electrical Specifications and Connections
Power Supply 120-250 VAC 50-60 Hz
Power Consumption 100
Output Current Per Channel 12 VDC 2.08
Output Current Per Channel 24 VDC 1
Power Connector in Open End
Power Connector out Open End
DMX Connector in Open end
DMX Connector out Open end
Data Connector in Open End
Data Connector out Open End
Mechanical Specifications
Length (mm) 230
Height (mm) 30
Width (mm) 80
Weight 0.88
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50
Minimum Ambient Temperature -40
Certifications/Qualifications
Reference Standard CE
Included Items
Included Accessories None
